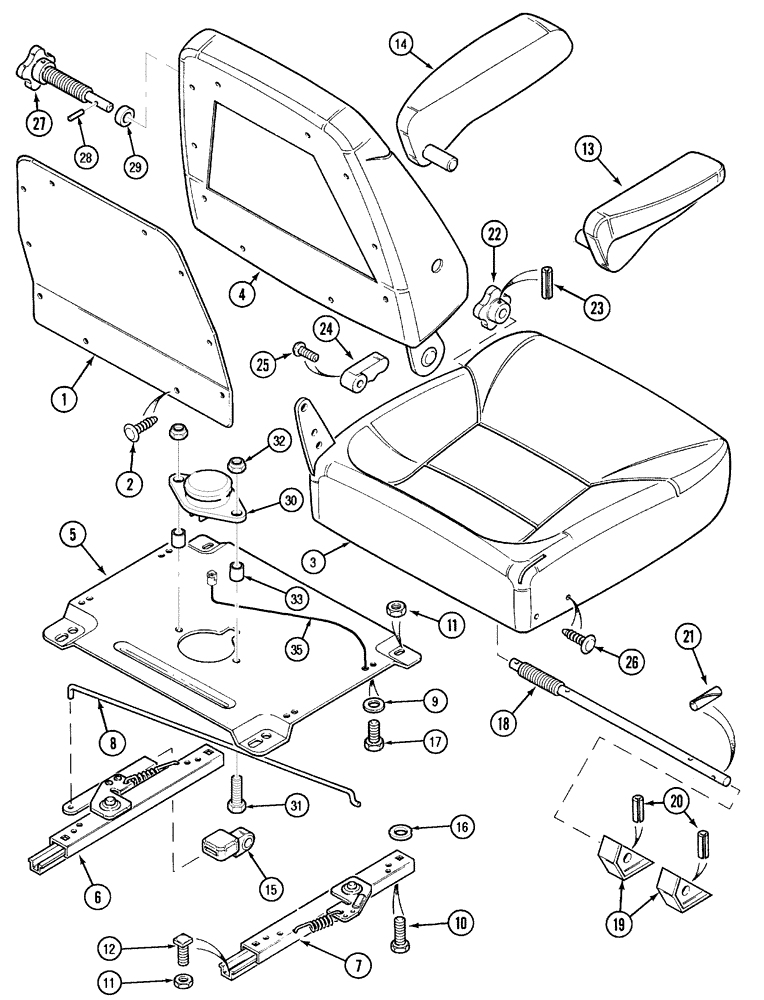

Запчасти Case IH 5230 (9-136) - SEAT, CLOTH CLASS 3 AND 4, DELUXE FOR TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS

222393A1

SEAT ASSY.

SEAT - Cloth, Class 3 (Mechanical Suspension), See Figure: 9-144, Includes Ref: 1-35

1шт.

222395A1

DRIVER SEAT

SEAT - Cloth, Class 4 (Air Suspension with Swivel), See Figure: 9-148, Includes Ref: 1-35

1шт.

243700A1

SPARE PART SET

KIT - cushion (Also Includes 22 - 29), Includes Ref: Includes Ref: 1-4

1шт.

1

1981820C2

PACKAGE, REPAIR

KIT - backrest cover

1шт.

2

1999693C1

KIT

CLIP - christmas tree

10шт.

242321A1

CUSHION ASSY.

KIT - seat with frame (Also Includes 22 - 26)

1шт.

3

243701A1

CUSHION, SEAT

CUSHION - seat

1шт.

127369A1

BACKREST COVER

KIT - backrest cushion (Also Includes 27 - 29), Includes Ref: 4

1шт.

4

1981816C2

PACKAGE,SERVICE

CUSHION - backrest

1шт.

This is a pad only. For complete backrest assembly, order 127369A1

1шт.

176091A1

PACKAGE,SERVICE

KIT - retaining, 50 hog rings

50шт.

5

182991A1

LARGE PLATE

PLATE - adapter

1шт.

1344248C1

SLIDE

KIT - double locking slide, Includes Ref: 6-12

1шт.

6

NSS

NOT SOLD SEPARAT

SLIDE - with handle (Order 1344248C1)

1шт.

7

NSS

NOT SOLD SEPARAT

SLIDE - without handle (Order 1344248C1)

1шт.

8

NSS

NOT SOLD SEPARAT

WIRE - connecting (Order 1344248C1)

1шт.

9

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

10

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

4шт.

11

231-4215

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

8шт.

12

417-512

BOLT,Sq Hd, 5/16" - 18 x 3/4", Gr 2

- square head, 5/16 NC x 3/4 inch, Class 2

4шт.

13

700708810

ARMREST ASSY.

KIT - armrest, right

1шт.

14

1981818C1

ARMREST

KIT - armrest, left

1шт.

15

NSS

NOT SOLD SEPARAT

KNOB - Fore and Aft (Order 1999691C1)

1шт.

16

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

17

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch, Class 5

4шт.

1343826C2

SHAFT ASSY.

SHAFT ASSEMBLY - tilt, Includes Ref: 18-21

1шт.

18

1343827C1

CAMSHAFT

- seat tilt

1шт.

19

NSS

NOT SOLD SEPARAT

CAM - camshft pivot

2шт.

20

38-31016

PIN,5/32" x 1", Coiled

2шт.

21

38-21020

PIN,5/32" x 1 1/4", Coiled

- roll, 1/64 x 1-1/4 inch

1шт.

22

NSS

NOT SOLD SEPARAT

KNOB - seat tilt (Order 1999691C1)

1шт.

23

38-11016

LOCK PIN,5/32" x 1", Slotted

Pin, 5/32" x 1", Slotted

1шт.

24

NSS

NOT SOLD SEPARAT

KNOB - Backrest Tilt (Order 1999691C1)

1шт.

25

30299R1

SCREW,Cross Oval Hd, M6 x 12

- machine, 6 x 12 mm

1шт.

26

1999693C1

KIT

CLIP - christmas tree

10шт.

27

NSS

NOT SOLD SEPARAT

KNOB - Lumbar (Order 1999691C1)

1шт.

28

NSS

NOT SOLD SEPARAT

PIN - roll

1шт.

29

NSS

NOT SOLD SEPARAT

WASHER - rubber

1шт.

30

242306A2

SWITCH

- safety, Operator Presence

1шт.

31

440-12510

SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

- machine, pan Phillips, 1/4 NC x 5/8 inch

2шт.

32

230-4215

NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16 inch NC

2шт.

33

241203A1

SPACER

- switch

2шт.

35

241211A1

HARNESS

- Operator Presence switch (Air Suspension)

1шт.

1999691C1

PACKAGE,SERVICE

KIT - seat knob (Also Includes 15, 20, 22, 24, 25, 27)

1шт.
