Запчасти Case IH 5230 (9-128) - FENDERS AND EXTENSIONS, REAR, NON CAB (09) - CHASSIS/ATTACHMENTS

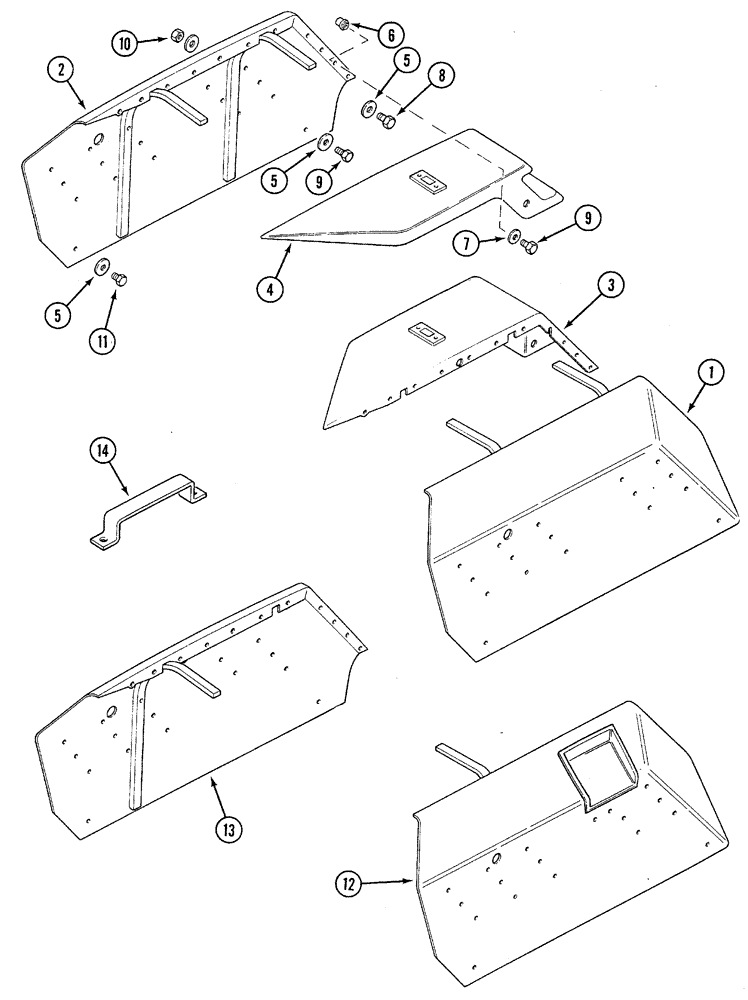

Схема запчастей Case IH 5230 - (9-128) - FENDERS AND EXTENSIONS, REAR, NON CAB (09) - CHASSIS/ATTACHMENTS
3
5
8
14
9
11
2
10
4
9
12
5
5
1
13
6
7

Артикул

Название

Примечание

Количество

1

1533962C1

FENDER

- left

1шт.

2

1533963C1

FENDER

- right

1шт.

3

T103629

REAR FENDER EXTENSIO

EXTENSION - fender, left

1шт.

4

T103630

REAR FENDER EXTENSIO

EXTENSION - fender, right

1шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 16 x 1.6 mm

34шт.

6

3234185R1

THREADED INSERT

INSERT - push type, monitor bracket

22шт.

7

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 16 x 1.6 mm

8шт.

8

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

6шт.

9

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

24шт.

10

825-1408

NUT,M8, Cl 8

2шт.

11

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 12 mm

10шт.

12

1533557C2

FENDER ASSY.

FENDER - cut back, left

1шт.

13

1533558C2

FENDER ASSY.

FENDER - cut back, right

1шт.

14

1533339C1

SUPPORT

- fender

2шт.

REF

INSTRUCTION

SUPPORT - hitch control, left (Not shown, see figure 9-24)

1шт.

REF

INSTRUCTION

SUPPORT - hitch control, right (Not shown, see figure 9-24)

1шт.

Выбрано товаров: 16
