Запчасти Case IH 5230 (2-028) - AIR CONDITIONING PIPES, JJF1034500 - (02) - ENGINE

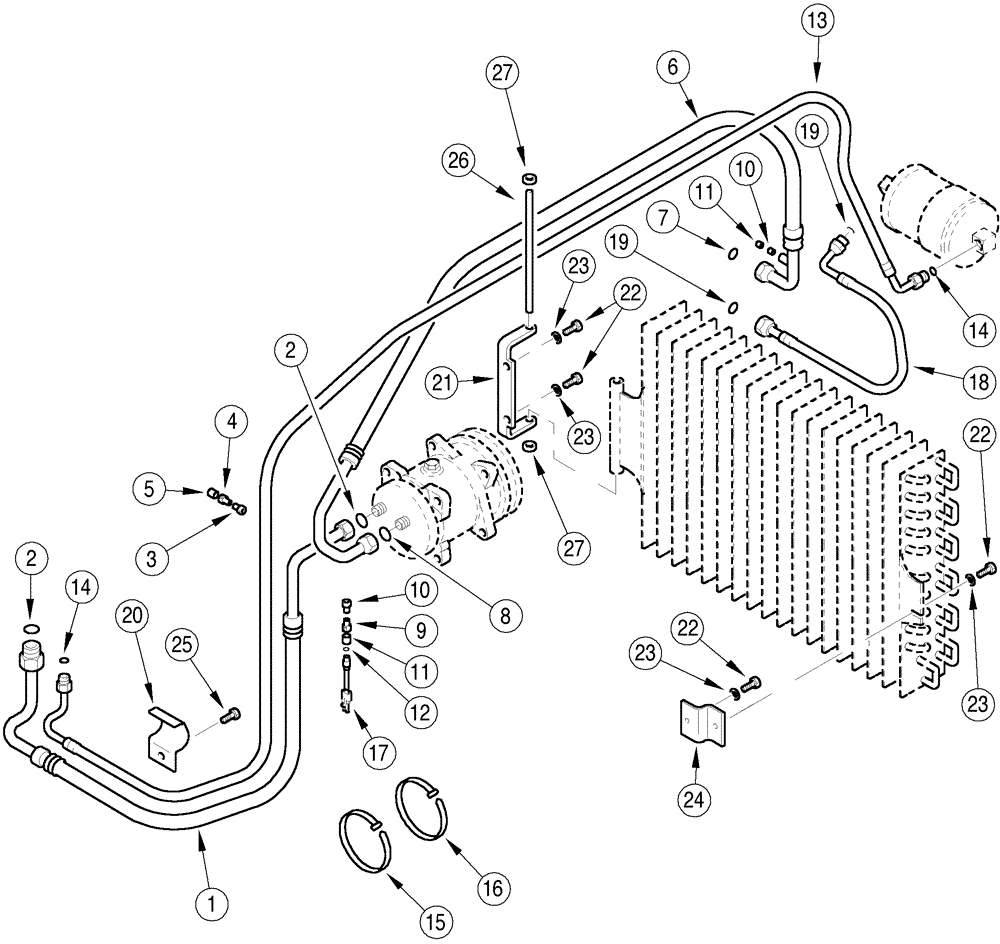

Схема запчастей Case IH 5230 - (2-028) - AIR CONDITIONING PIPES, JJF1034500 - (02) - ENGINE
26
14
12
6
23
23
2
3
18
10
23
25
16
22
20
9
4
11
17
21
22
22
7
10
13
27
23
27
19
11
5
1
19
2
24
8
15
14

Артикул

Название

Примечание

Количество

1

127245A3

HOSE

- chassis suction, Includes Ref: 2-5

1шт.

2

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

- 14.0 mm ID

2шт.

3

137328A1

PIPE FITTING

FITTING - low side service port

1шт.

4

1250594C1

CORE

VALVE - core

1шт.

5

122553A1

CAP

- sealing, low side

1шт.

6

127247A3

HOSE

- compressor to condensor, Includes Ref: 7-12

1шт.

7

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

- 10.82 mm ID

1шт.

8

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

- 14.0 mm ID

1шт.

9

137329A1

PIPE FITTING

FITTING - high side service port

2шт.

10

1250594C1

CORE

VALVE - core

2шт.

11

122554A1

CAP

- sealing, high side

1шт.

12

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

- ID 7.65 mm

1шт.

13

113167A2

HOSE ASSY.

HOSE - air conditioning, chassis liquid, Includes Ref: 14

1шт.

14

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

- ID 7.65 mm

2шт.

15

3402979R2

BAND

STRAP - cable tie

5шт.

16

3148767R2

COLLAR CLAMP

STRAP - cable

6шт.

17

232948A1

SWITCH, A/C HIGH PRE

SWITCH, A/C HIGH PRESSURE

1шт.

18

127246A1

HOSE

- air conditioning, condensor to dryer, Includes Ref: 19

1шт.

19

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

- ID 7.65 mm

2шт.

20

176406A1

CLAMP

- A/C hoses

1шт.

21

129466A1

SUPPORT

BRACKET - hinge (51/5230/51/5240 tractors)

1шт.

21

129470A1

SUPPORT

BRACKET - hinge (5250 tractors)

1шт.

22

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm (51/5230/51/5240 tractors)

4шт.

22

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm (5250 tractors)

3шт.

23

934268R1

WASHER,M8.4 ID x 16 OD x 1.6 Thk

- flat, 8 mm (51/5230/51/5240 tractors)

4шт.

23

934268R1

WASHER,M8.4 ID x 16 OD x 1.6 Thk

- flat, 8 mm (5250 tractors)

3шт.

24

129465A1

SUPPORT

BRACKET - condenser (51/5230/51/5240 tractors)

1шт.

25

614-12016

BOLT,Hex, M12 x 1.75 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 16 mm (51/5230/51/5240 tractors)

1шт.

26

A184695

PIN

- hinge

1шт.

27

100-1531

SNAP RING,#31, Ext

Ring, Snap, #31, Ext

2шт.

Выбрано товаров: 30
