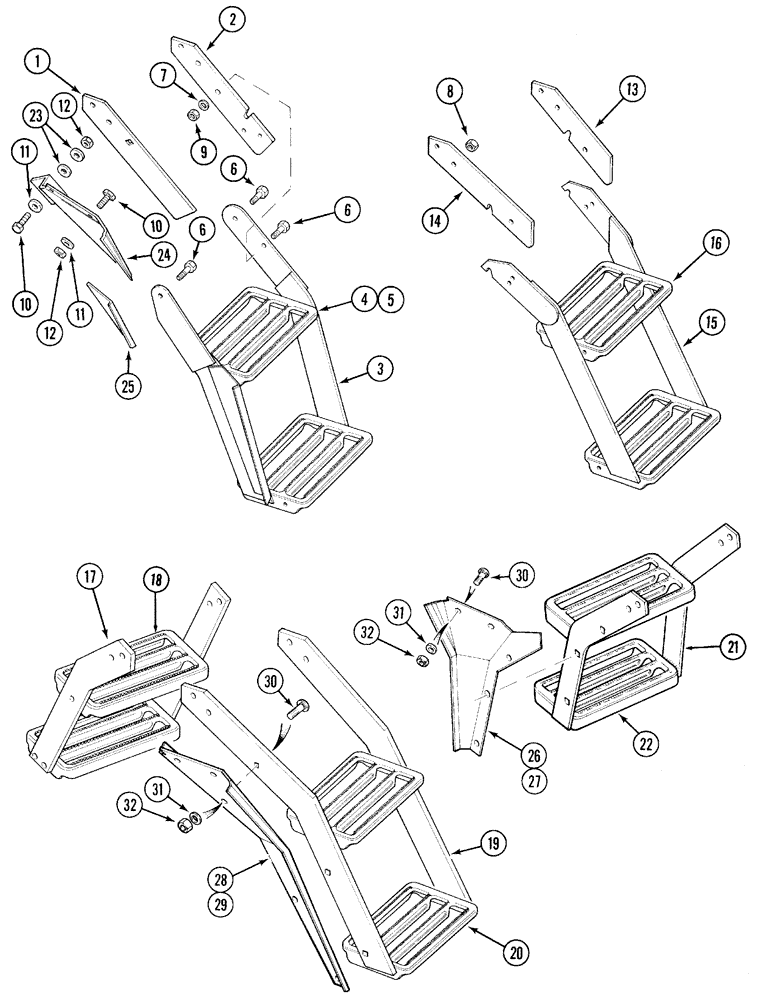

Запчасти Case IH 5230 (9-118) - STEPS, CAB AND PLATFORM, LATER PRODUCTION (09) - CHASSIS/ATTACHMENTS

1

1533760C1

SUPPORT

STEP - assembly, right upper, 2 step

1шт.

2

1533240C1

SUPPORT

BAR - side, right upper, front

1шт.

3

1533761C1

STEP

- assembly, right lower, 2 step, Includes Ref: 4

1шт.

4

1531337C1

STEP

- service

2шт.

5

NSS

NOT SOLD SEPARAT

SEAL - edge, 100mm (Cut From Bulk Strip 82464C1)

1шт.

82464C1

SEAL

- strip Bulk Length, 2925 mm

1шт.

6

3404199R1

BOLT

BOLT - hex, 10 mm - 1.5 x 27 mm

1шт.

7

934674R1

WASHER,M10.5 x 30 x 2.5

- flat, 10.5 x 30 x 2.5 mm

1шт.

8

825-1410

NUT,M10, Cl 8

4шт.

9

934819R1

LOCK NUT,M10 x 1.5, Thin

NUT, LOCK, M10 x 1.5, Thin

3шт.

10

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

BOLT, CARRIAGE, Short NK, M8 x 20, Cl8.8, Full Thd

5шт.

11

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

- flat, 9 x 17 x 2 mm, hardened

5шт.

12

825-1408

NUT,M8, Cl 8

5шт.

13

1531910C1

SUPPORT

BAR - front, upper (Non cab tractors)

1шт.

14

1531911C1

SUPPORT

BAR - rear, upper (Non cab tractors)

1шт.

15

1531905C1

STEP

- assembly, right (2 step non cab tractors), Includes Ref: 16

1шт.

16

1531337C1

STEP

- service

2шт.

15

1533747C2

STEP

- assembly, right, (3 step non cab tractors), Includes Ref: 16

1шт.

16

1531337C1

STEP

- service

3шт.

17

1531343C1

STEP

- assembly, left (2 step non cab tractors), Includes Ref: 18

1шт.

18

1531337C1

STEP

- service

2шт.

17

1533748C2

STEP

- assembly, left (3 step non cab tractors), Includes Ref: 18

1шт.

18

1531337C1

STEP

- service

3шт.

19

1531342C1

STEP

- assembly, right (Non cab tractors), Includes Ref: 20

1шт.

20

1531337C1

STEP

- service

2шт.

21

1533746C1

STEP

- assembly, left, 2 step, Includes Ref: 22

1шт.

22

1531337C1

STEP

- service

2шт.

21

1533745C1

STEP

- assembly, right, 2 step (Not shown), Includes Ref: 22

1шт.

22

1531337C1

STEP

- service

2шт.

23

495-81134

WASHER,0.41" ID x 0.88" OD x 0.06" Thk

- flat, 13/32 x 7/8 x 3/64 inch

2шт.

24

1533237C2

SUPPORT

PANEL - mudguard, upper

1шт.

25

1533235C2

SUPPORT

PANEL - mudguard, lower

1шт.

26

1533182C3

SUPPORT

PANEL - right 2 step (Cab tractors)

1шт.

27

1533183C3

SUPPORT

PANEL - left 2 step (Cab tractors)

1шт.

28

1533184C4

SUPPORT

PANEL - right, 3 step (Cab tractors)

1шт.

29

1533185C3

SUPPORT

PANEL - left 3 step (Cab tractors)

1шт.

30

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

BOLT, CARRIAGE, Short NK, M8 x 20, Cl8.8, Full Thd

10шт.

31

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

- flat, 9 x 17 x 2 mm, hardened

10шт.

32

825-1408

NUT,M8, Cl 8

10шт.
