Запчасти Case IH 5230 (2-026) - AIR CONDITIONING PIPES, - JJF1034499 (02) - ENGINE

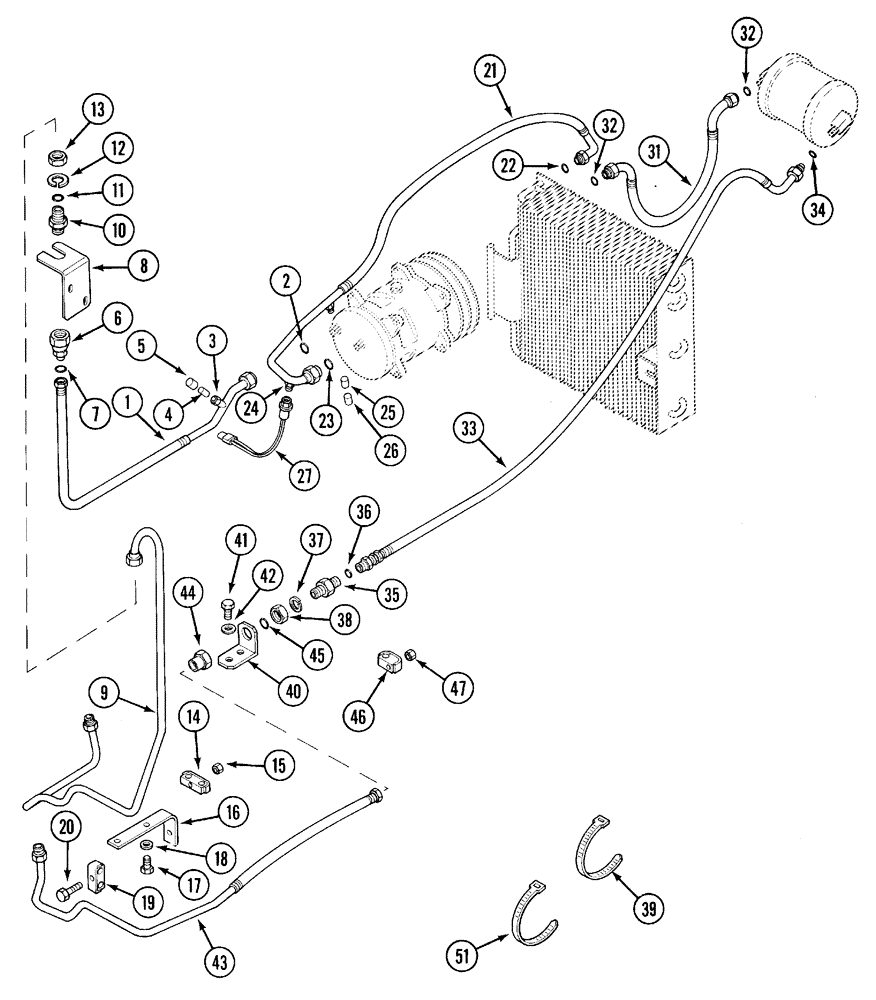

Схема запчастей Case IH 5230 - (2-026) - AIR CONDITIONING PIPES, - JJF1034499 (02) - ENGINE
17
4
31
23
47
37
38
5
12
7
46
21
10
34
40
26
32
9
6
27
45
15
1
25
18
2
11
3
16
20
43
8
42
44
32
13
36
39
19
33
24
41
35
14
22
51

Артикул

Название

Примечание

Количество

1

1533575C1

HOSE

- suction, compressor to bracket, Includes Ref: 2-7

1шт.

2

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

2шт.

3

1250593C1

FITTING

ADAPTER - straight, special, 1/4 inch

1шт.

4

1250594C1

CORE

VALVE - core

1шт.

5

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

CAP - hex, 7/16-20 inch female 45 degree flare

1шт.

6

1280492C1

PUSH-PULL COUPLING

COUPLING - half, female

1шт.

7

T103182

O-RING,1.78mm Thk x 27mm ID

- coupling

1шт.

8

1531706C1

SUPPORT

BRACKET - coupling

1шт.

9

T103101

PIPE

- suction, Includes Ref: 10-13

1шт.

10

1280495C1

COUPLING, BREAK AWAY

COUPLING - half, male

1шт.

11

T103182

O-RING,1.78mm Thk x 27mm ID

- coupling

1шт.

12

1281516C1

LOCK WASHER

WASHER - lock

1шт.

13

1281518C1

JAM NUT

- hex, jam

1шт.

14

T103149

CLAMP

- pipe, double

1шт.

15

825-1406

NUT,M6, Cl 8

1шт.

16

1530958C1

SUPPORT

BRACKET - pressure pipe

1шт.

17

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

Full threads Hex, M6 x 20, 8.8

2шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

19

T103149

CLAMP

- pipe, double

1шт.

20

814-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8

1шт.

21

117660A1

HOSE

- compressor to condenser, Includes Ref: 22-26

1шт.

22

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

1шт.

23

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

1шт.

24

1250593C1

FITTING

ADAPTER - straight, special, 1/4 inch

2шт.

25

1250594C1

CORE

VALVE - core

2шт.

26

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

CAP - hex, 7/16-20 inch female 45 degree flare

1шт.

27

234921A1

SENSOR

SWITCH - air conditioning, High Pressure

1шт.

31

1530691C1

HOSE

- condenser to dryer, Includes Ref: 32

1шт.

32

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

2шт.

33

1530690C1

HOSE

- dryer to bracket, Includes Ref: 34-38

1шт.

34

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

1шт.

35

167869C1

FITTING

COUPLING - half, male

1шт.

36

T103181

O-RING,1.78mm Thk x 17mm ID

- coupling

1шт.

37

1281517C1

LOCK WASHER

WASHER - lock

1шт.

38

1281519C1

JAM NUT

- hex, jam

1шт.

39

3402979R2

BAND

STRAP - cable tie

1шт.

40

T103108

BRACKET

- coupling

1шт.

41

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

42

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

43

T103100

HYD TUBE

- pressure, Includes Ref: 44, 45

1шт.

44

117771C1

COUPLING,1" - 20 NPT x 7/8" - 20 NPT

COUPLING - half, female

1шт.

45

T103181

O-RING,1.78mm Thk x 17mm ID

- coupling

1шт.

46

T101170

CLAMP

- pipe

1шт.

47

825-1406

NUT,M6, Cl 8

1шт.

51

3148767R2

COLLAR CLAMP

STRAP - cable

5шт.

Выбрано товаров: 45
