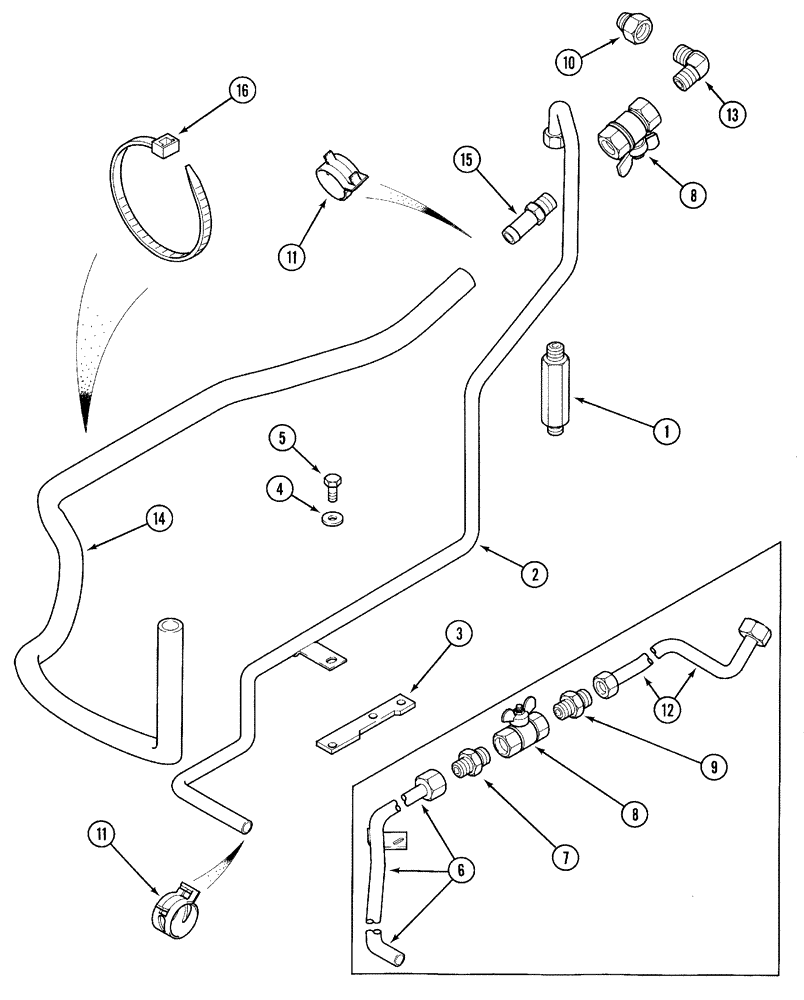

Запчасти Case IH 5230 (2-022) - HEATER HOSES (02) - ENGINE

1

T102832

ADAPTER

CONNECTOR - straight, 1/2 inch

1шт.

2

T104594

TUBE,0.625" OD

- heating ( - Cab JKJ57063)

1шт.

2

1530615C2

HEATER TUBE

TUBE - heating (Cab JKJ57064 - )

1шт.

3

T104601

BRACKET

- heating tube

1шт.

4

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

( - Cab JKJ57063) M6

1шт.

4

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 16 x 1.6 mm (Cab JKJ57064 - )

1шт.

5

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

(- Cab JKJ57063) Hex, M6 x 16, 8.8

1шт.

6

T104595

TUBE,0.652" OD x 16.34, 9.45" L

- heating ( - Cab JKJ57063)

1шт.

7

218-1026

HYD CONNECTOR,7/8"-14, 37 Degree x 3/8"-18, NPTF

ADAPTER - flared, 37 deg, 7/8 tube x 3/8-18 NPTF ( - Cab JKJ57063)

1шт.

8

T102597

COCK

STOP - cock

1шт.

9

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

ADAPTER - flared, 1/2 tube x 3/8-18 NPTF ( - Cab JKJ57063)

1шт.

10

T102823

REDUCER FITTING

REDUCER - male, 1/2-3/8 in

1шт.

11

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, #24

2шт.

12

T103789

TUBE,12 mm OD x 234, 100 mm L

PIPE - stop cock to engine ( - Cab JKJ57063)

1шт.

13

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

- 90 degree, flared, 1/2 tube x 3/8-18 inch PT ( - Cab JKJ57063)

1шт.

97252CX

HOSE

- bulk, 5/8 (16) x 1 (25) x 600 inch (15240 m)

1шт.

13

217-1229

ELBOW,90 Degree, 3/8"-18 Male

- 90 degree, pipe fitting, 3/8 in tube (Cab JKJ57064 - )

1шт.

14

NSS

NOT SOLD SEPARAT

HOSE - supply, (Cut 2740 mm from 97252CX) (Cab JKJ57064 - )

1шт.

15

1534497C1

ADAPTER

CONNECTOR - stop cock (Cab JKJ57064 - )

1шт.

16

3148767R2

COLLAR CLAMP

STRAP - cable (Cab JKJ57064 - )

6шт.
