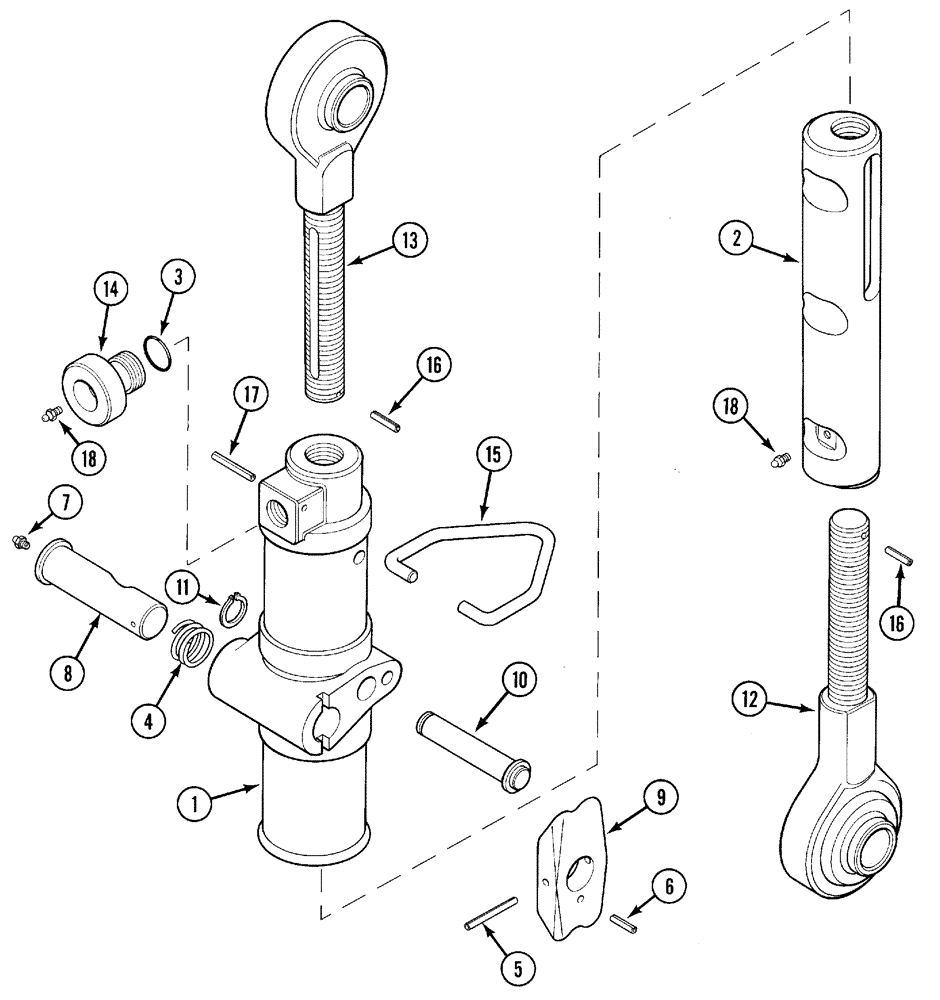

Запчасти Case IH 5230 (9-032) - LINK ASSEMBLY, TOP, FLOAT VERSION, CONRAD, - JJF1030629 (09) - CHASSIS/ATTACHMENTS

NSS

NOT SOLD SEPARAT

LINK - assembly, top float version (Order components)(See Note), Includes Ref: 1-18

1шт.

1

1531561C2

SLEEVE

- housing

1шт.

2

1531566C2

SLEEVE

- float

1шт.

3

1533129C1

SEALING RING

RING - seal bushing

1шт.

1531560C1

PIN

ASSEMBLY - float, Includes Ref: 4-9

1шт.

4

1533261C1

SPRING

- locking pin

1шт.

5

932234R1

LOCK PIN,M6 x 40, Slotted

1шт.

6

932470R1

LOCK PIN,M6 x 20, Slotted

PIN, LOCK, M6 x 20, Slotted

1шт.

7

714100R91

NIPPLE, LUBE

FITTING - lubrication

1шт.

8

NSS

NOT SOLD SEPARAT

PIN - lock (Order 1531560C1)

1шт.

9

NSS

NOT SOLD SEPARAT

HANDLE - (Order 1531560C1)

1шт.

10

1533253C1

HITCH PIN

PIN - link

1шт.

11

934240R1

SNAP RING,M16, Ext

RING - external retaining

1шт.

12

1531558C1

TURNBUCKLE

ROD ASSEMBLY - tractor side

1шт.

13

1531559C1

TURNBUCKLE

ROD ASSMEMBLY - implement side

1шт.

14

1533128C1

CLEVIS PIN,M22 x 1.5 x 47mm, Cl 8

PIN - screw

1шт.

15

1531565C1

HANDLE

- bow

1шт.

16

Q5343

LOCK PIN,M5 x 30, Slotted

PIN, LOCK, M5 x 30, Slotted

2шт.

17

838-5436

LOCK PIN,M4 x 36, Slotted

PIN - roll, 4 x 36 mm

1шт.

18

714100R91

NIPPLE, LUBE

FITTING - lubrication

2шт.
