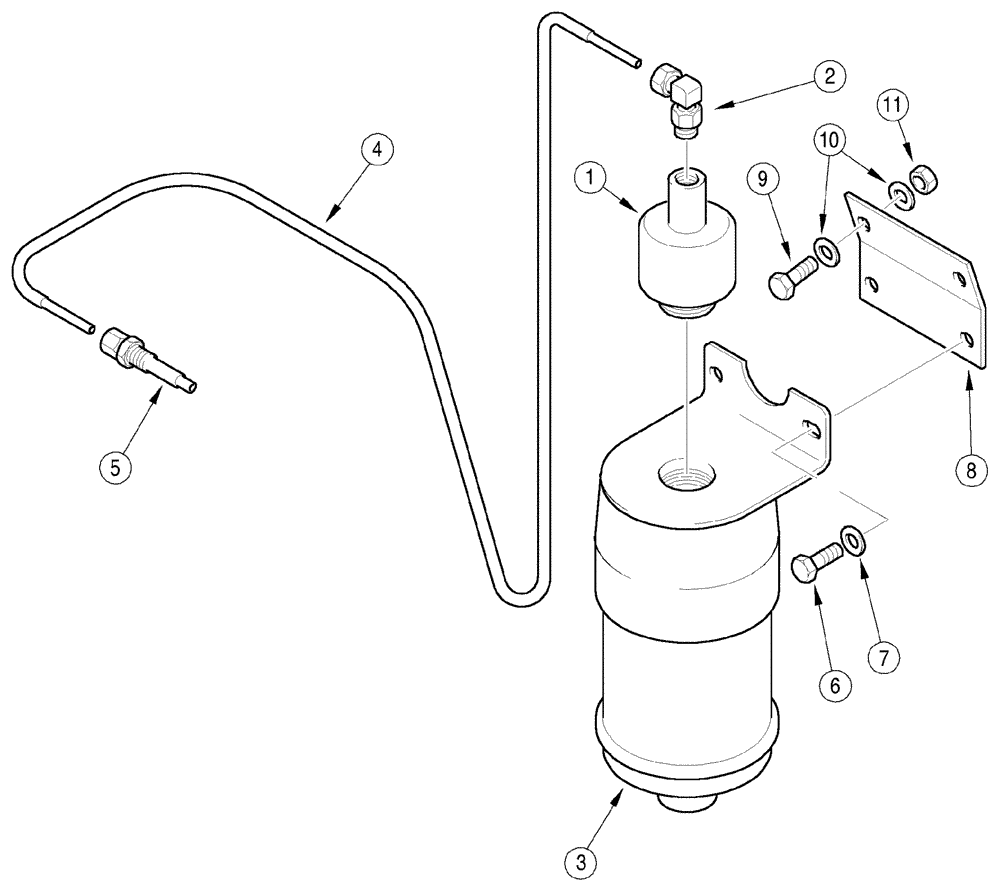

Запчасти Case IH 5230 (2-020) - ETHER START SYSTEM (02) - ENGINE

1

185552A2

SOLENOID

ASSEMBLY - ether injection

1шт.

2

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

1/8 tube 90º, 5/16"-24 x 1/8" NPT, Comp

1шт.

3

190752A1

HOUSING

CANISTER - ether start

1шт.

4

A149932

TUBE

ether injection - 2006 mm (79 in)

1шт.

5

A172900

NOZZLE CAP

NOZZLE ASSEMBLY - atomizer

1шт.

6

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

2шт.

7

934268R1

WASHER,M8.4 ID x 16 OD x 1.6 Thk

- flat, 8 mm

2шт.

8

1534968C1

SUPPORT ASSY.

BRACKET - ether start (5250 Tractors)

1шт.

9

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

2шт.

10

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 16 x 1.6 mm

4шт.

11

825-1408

NUT,M8, Cl 8

2шт.
