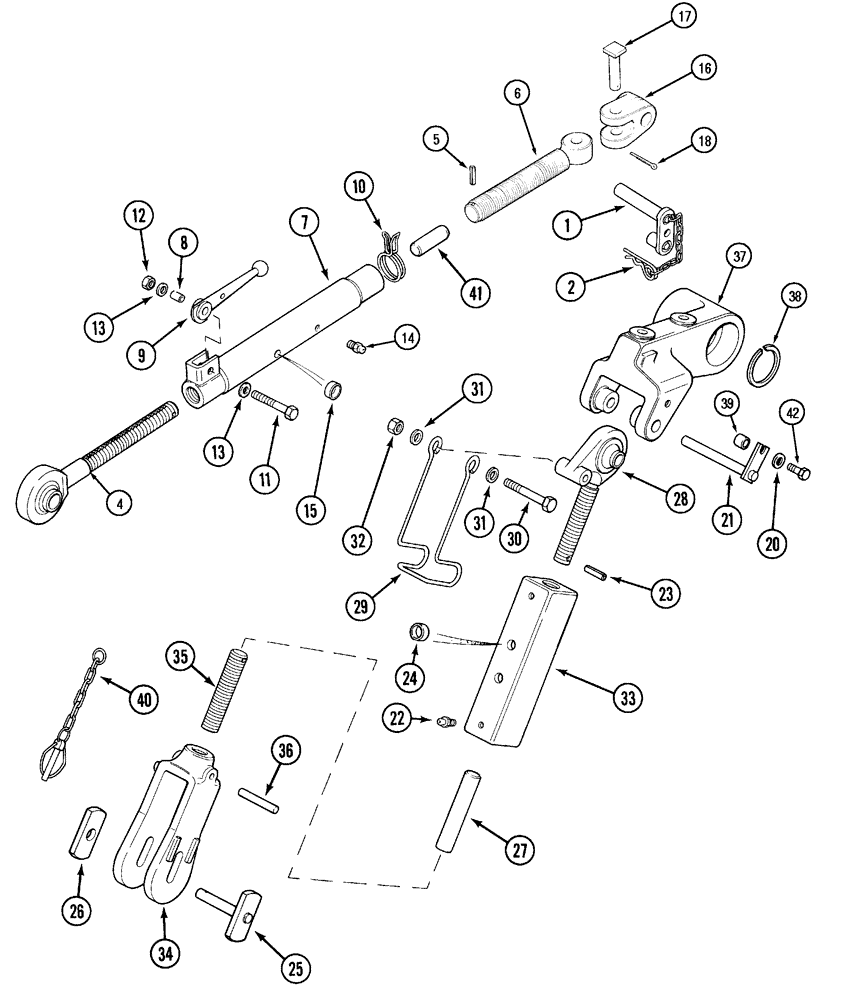

Запчасти Case IH 5230 (9-004) - HITCH, LIFT LINKS, UPPER, SWIVEL (09) - CHASSIS/ATTACHMENTS

1

1965660C6

HITCH PIN

PIN ASSEMBLY - top link pivot, Includes Ref: 2

1шт.

2

905821R1

COTTER PIN,6.3mm x 78.3mm L

PIN - cotter, 4 mm

1шт.

311795A1

UPPER LINK

LINK ASSEMBLY - turnbuckle, Ball type, Includes Ref: 4-19

1шт.

4

1348052C1

END,M36 x 3

ROD ASSEMBLY - top link, right hand thread

1шт.

5

838-1536

LOCK PIN,5mm OD x 36mm L, Slotted

PIN - roll, 5 x 36 mm

1шт.

6

1348051C2

TRUSS ROD,M36 x 3, LH Thread

ROD ASSEMBLY - top link, left hand thread

1шт.

7

1965646C2

TURNBUCKLE

- top link

1шт.

8

1965585C1

BUSHING

- latch lever

1шт.

9

1965587C1

LEVER

- top link latch

1шт.

10

1965586C1

SPRING

- link lever retainer

1шт.

11

828-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9

- hex, 8 - 1.25 x 45 mm

1шт.

12

832-41308

NUT,M8 x 1.25, Cl 10

- hex, self-locking, 8 mm - 1.25

2шт.

13

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

- flat, 9 x 17 x 2 mm, hardened

2шт.

14

3229744R1

LUBE NIPPLE

LUBRICATOR - self tapping

1шт.

15

1965426C1

PLUG

- cup

3шт.

16

1348049C1

PIVOT

SWIVEL - link

1шт.

17

1348050C1

PIN,30mm OD x 81mm L

- swivel

1шт.

18

732-5050

COTTER PIN,M5 x 50

PIN, SPLIT (COTTER), M5 x 50

1шт.

19

838-1536

LOCK PIN,5mm OD x 36mm L, Slotted

PIN - roll, 5 x 36 mm

1шт.

20

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

- flat, 9 x 21 x 2.5 mm, hardened

2шт.

21

1530823C1

PIN

- assembly

2шт.

NSS

NOT SOLD SEPARAT

LINK - assembly, lift, Includes Ref: 22-36

2шт.

22

3229744R1

LUBE NIPPLE

LUBRICATOR - self tapping

2шт.

23

38-31220

PIN,4.75mm OD x 31.75mm L, Coiled

2шт.

24

1965426C1

PLUG

- cup

4шт.

25

1965397C1

PIN

- assembly, lift link

1шт.

26

1965420C1

LARGE PLATE

PLATE - lift link pin

1шт.

27

113235A1

SPACER

- turnbuckle lift

1шт.

28

1965555C1

END,M30 x 2, LH Threads

ROD - assembly, lift link upper

1шт.

28

197186A1

ROD, ADJUSTMENT,M30 x 2, LH Threads

ROD - lift link upper (Hi-Clear)

1шт.

29

1965554C2

SPRING

- turnbuckle lock

1шт.

30

828-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

- hex, 12 - 1.75 x 90 mm, class 10.9

1шт.

31

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

32

832-41312

NUT,M12 x 1.75, Cl 10

NUT - hex, self-locking, 12 mm - 1.75

1шт.

33

1965392C3

TURNBUCKLE,M30 x 2

- lift link

1шт.

1348032C1

FORK

- assembly, lift link, 51 mm (Hi-Clear), Includes Ref: 34-36

1шт.

1965393C2

FORK,M30 x 2

- assembly, lift link, 51 mm gap, Includes Ref: 34-36

1шт.

1998001C1

FORK,M30 x 2

- assembly, lift link, 31 mm gap, Includes Ref: 34-36

1шт.

34

NSS

NOT SOLD SEPARAT

FORK - lift link 31mm gap

1шт.

35

1347994C1

ROD,THREADED

SHAFT - threaded

1шт.

36

838-3860

LOCK PIN,M8 x 60, Slotted

PIN - roll, 8 x 60 mm

1шт.

37

1974272C3

LOWER LINK

ARM - rockshaft, right

1шт.

37

1974271C3

LOWER LINK

ARM - rockshaft, left

1шт.

38

101-11231

SNAP RING,#225, 2.174", Ext

RING - snap, No. 231

2шт.

39

1331994C1

SPACER

- 1/2 inch

2шт.

40

1982152C2

PIN ASSY.

PIN - left, link

2шт.

41

1348140C1

SPACER

- swivel

1шт.

42

628-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.
