Запчасти Case IH 5230 (2-018) - FLYWHEEL, HOUSING AND TORQUE LIMITER (02) - ENGINE

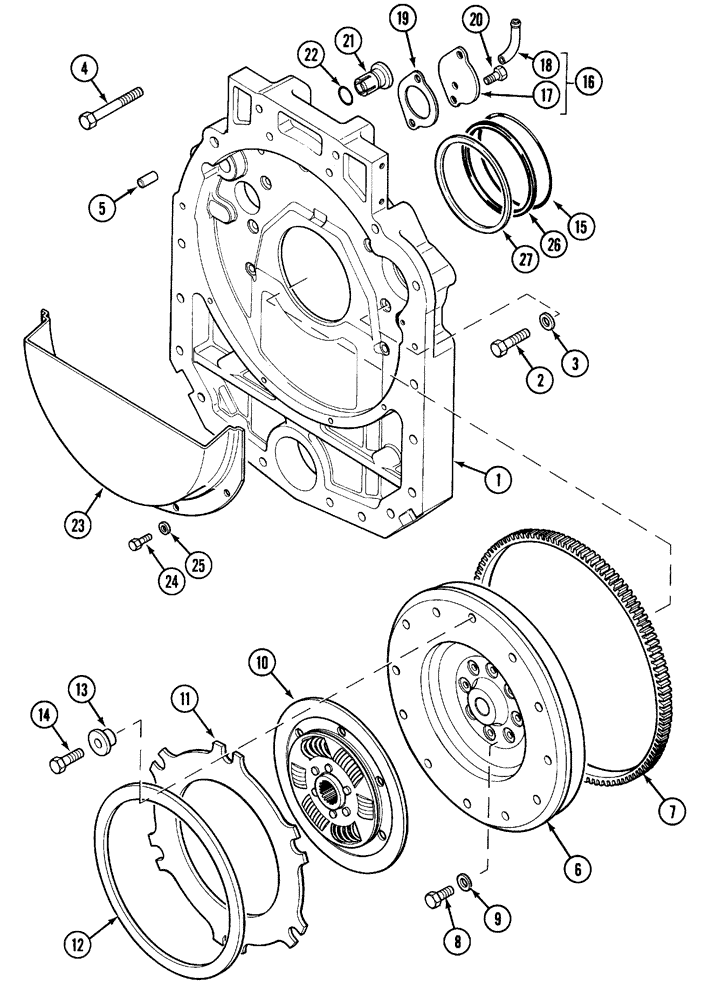

Схема запчастей Case IH 5230 - (2-018) - FLYWHEEL, HOUSING AND TORQUE LIMITER (02) - ENGINE
6
2
20
11
17
7
3
15
13
12
9
24
1
14
8
22
19
23
18
16
4
10
21
27
26
5
25

Артикул

Название

Примечание

Количество

1

139074A1

HOUSING

- flywheel

1шт.

2

828-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

- hex, 12 - 1.75 x 45 mm

8шт.

3

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

4

828-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

2шт.

5

J900068

BEARING WASHER

RING - dowel, 18 mm OD

2шт.

6

J923272

FLYWHEEL WITH GEAR

FLYWHEEL - assembly, with Ring Gear, Includes: Ref. 7

1шт.

Flywheel p/n J923272 have a minimum width of 42 mm (1.653 inch). The service bulletin EBT SB 017 92 is wrong.

1шт.

7

J905427

GEAR

- ring, flywheel

1шт.

8

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

BOLT - hex, special, 12 - 1.25 x 32 mm

8шт.

9

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

- flat, special

8шт.

10

A190182

TORQUE LIMITER,277mm OD

CLUTCH - torque limiter, Luk (With Powershift)

1шт.

10

A190182R

REMAN-CLUTCH ASSY

5130, 5140, 5230, 5240, 5250, All w/Powershift.

1шт.

10

A190182C

CORE-CLUTCH ASSEMBLY

Return Number

1шт.

10

A190183

TORQUE LIMITER,277mm OD

CLUTCH - torque limiter, Luk (With Synchro Shift)

1шт.

11

A159102

PLATE, THRUST

PLATE - pressure

1шт.

12

A159103

BELLEVILLE SPRING

SPRING - belleville (5130/5230 tractors)

1шт.

12

1995091C1

BELLEVILLE SPRING

SPRING - belleville (5140/5240 and 5250 tractors)

1шт.

13

A178891

SPACER,12mm ID x 35mm OD x 21mm L

RETAINER - torque limiter spring

12шт.

14

628-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

12шт.

15

238-7362

O-RING,0.21" Thk x 6.225" ID, -362, Cl 7, 75 Duro

- 3/16 x 6-1/4 inch, class 7

1шт.

16

A188677

COVER

- assembly, flywheel housing, Includes: Ref. 17, 18

1шт.

17

NSS

NOT SOLD SEPARAT

COVER - (Order A188677)

1шт.

18

NSS

NOT SOLD SEPARAT

TUBE - (Order A188677)

1шт.

19

1341103C1

GASKET

- flywheel housing cover

1шт.

20

628-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

2шт.

21

J910248

PLUG

- flywheel housing

1шт.

22

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

23

A186986

BAFFLE

- oil, flywheel

1шт.

24

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

BOLT hex, full threads, 8 - 1.25 x 20 mm, class 10.9

4шт.

25

896-12008

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

- flat, 9 x 17 x 2 mm, hardened

4шт.

26

1997130C1

RING,159mm ID x 167mm OD x 4mm Thk

SPACER - flywheel (JJF1038600 - )

1шт.

27

189051A1

SEALING RING

RING - backing ( - JJF1038599)

1шт.

Выбрано товаров: 32
