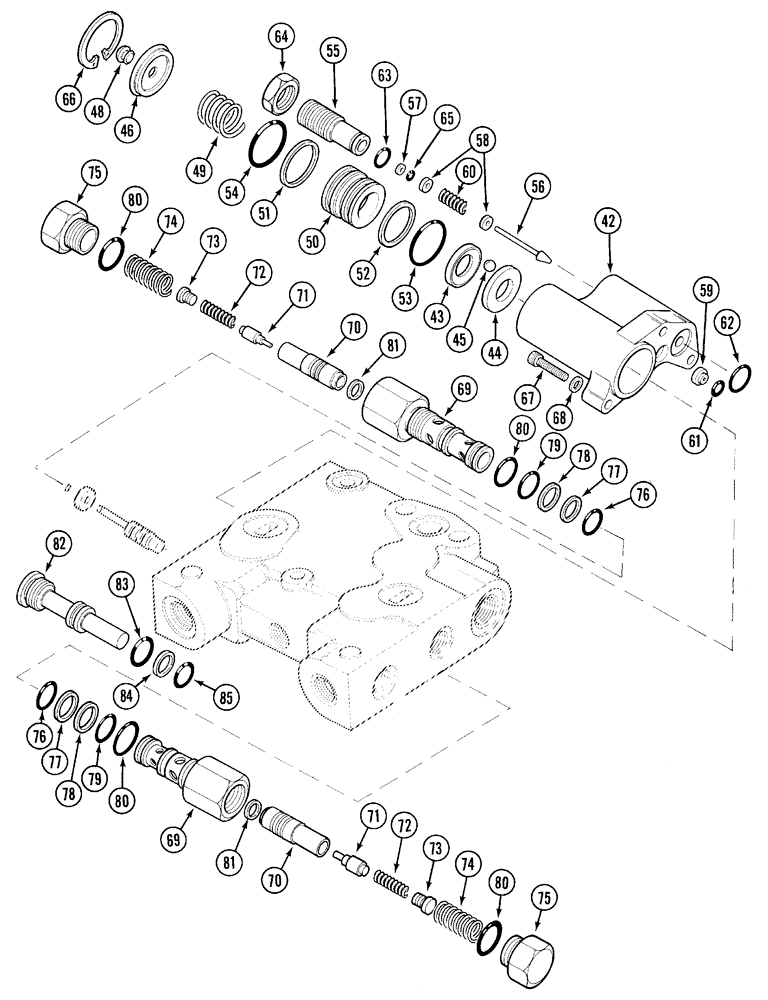

Запчасти Case IH 5230 (8-066) - HYDRAULIC, REMOTE VALVE ASSEMBLY, WITH TWO CHECKS, CONTD (08) - HYDRAULICS

REF

INSTRUCTION

VALVE - assembly, auxiliary hydraulic, Includes Ref: 42-85

1шт.

1980160C2

SPOOL

DETENT - assembly, Includes Ref: 42-66

1шт.

42

1976957C1

COVER ASSY

COVER - detent

1шт.

43

G108911

WASHER

- detent

1шт.

44

G108912

WASHER

- detent

1шт.

45

211-1007

BALL,7/32" Dia

- chrome alloy steel, 7/32", Class 24

8шт.

321361A1

RETAINER

- assembly, Includes 46-48

1шт.

46

1341975C2

RETAINER - detent

1шт.

321360A1

O-RING,0.8mm Thk x 27mm ID, Cl 5, 75 Duro

- retainer (Not illustrated)

1шт.

48

G107780

VALVE, CHECK

PLUG - valve

1шт.

49

G110152

SPRING

- detent

1шт.

G108921

PISTON

ASSEMBLY - detent, Includes Ref: 50-54

1шт.

50

G108908

PISTON

- detent

1шт.

51

G108728

BACK-UP RING

RING - backup, large

1шт.

52

G108922

BACK-UP RING

RING - backup, small

1шт.

53

238-6020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

1шт.

54

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

55

G110300

PLUG

- adjusting, pilot relief

1шт.

56

G110279

VALVE POPPET

POPPET - pilot relief

1шт.

57

G110289

BACK-UP RING

RING - backup

1шт.

58

G110281

SPRING CUP

WASHER - spring retainer

2шт.

59

G108918

ORIFICE

WASHER - orifice

1шт.

60

G109275

SPRING

- pilot

1шт.

61

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

62

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

63

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

64

425-1510

JAM NUT,Jam, 5/8"-18, G5

- hex, 5/8 inch NF

1шт.

65

238-5004

O-RING,0.07" Thk x 0.07" ID, -4, Cl 5, 75 Duro

-004, 70 Duro, .07" ID x .070" Thk

1шт.

66

100-21118

SNAP RING,1.188", Int, #118

Ring, Snap, 1.188", Int, #118

1шт.

67

61-31016

HEX SOC SCREW,#10 - 24 x 1"

SCREW, Hex Soc Hd, #10-24 x 1"

3шт.

68

495-11022

WASHER,5.56mm ID x 11.13mm OD x 1.25mm Thk

(Flat, 7/32" x 7/16" x 3/64") #10

3шт.

1971801C2

CHECK VALVE

VALVE - check, Includes Ref: 69-81

1шт.

69

NSS

NOT SOLD SEPARAT

BODY - check valve

1шт.

70

NSS

NOT SOLD SEPARAT

POPPET - main

1шт.

71

NSS

NOT SOLD SEPARAT

POPPET - pilot

1шт.

72

1957817C1

VALVE SPRING

SPRING - poppet

1шт.

73

1957964C1

RETAINER

- spring

1шт.

74

1957965C1

VALVE SPRING

SPRING - main

1шт.

75

NSS

NOT SOLD SEPARAT

CAP - check valve

1шт.

76

238-6013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

- 7/16 ID x 1/16 inch wide

1шт.

77

G110287

BACK-UP RING

RING - backup, inner

1шт.

78

G108727

BACK-UP RING,13.27mm ID x 15.87mm OD x 1.32mm Thk

RING - back-up, outer

1шт.

79

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

80

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

81

G108724

BACK-UP RING

RING - back-up

1шт.

1971475C1

PLUG

- assembly, lock check, Includes Ref: 82-85

1шт.

82

NSS

NOT SOLD SEPARAT

PLUG - lock check (Order 1971475 C1)

1шт.

83

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

84

G110287

BACK-UP RING

RING - backup, inner

1шт.

85

G110295

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

- poppet

1шт.
