Запчасти Case IH 5230 (2-014) - EXHAUST SYSTEM, 5130/5230, DOWNSWEPT (02) - ENGINE

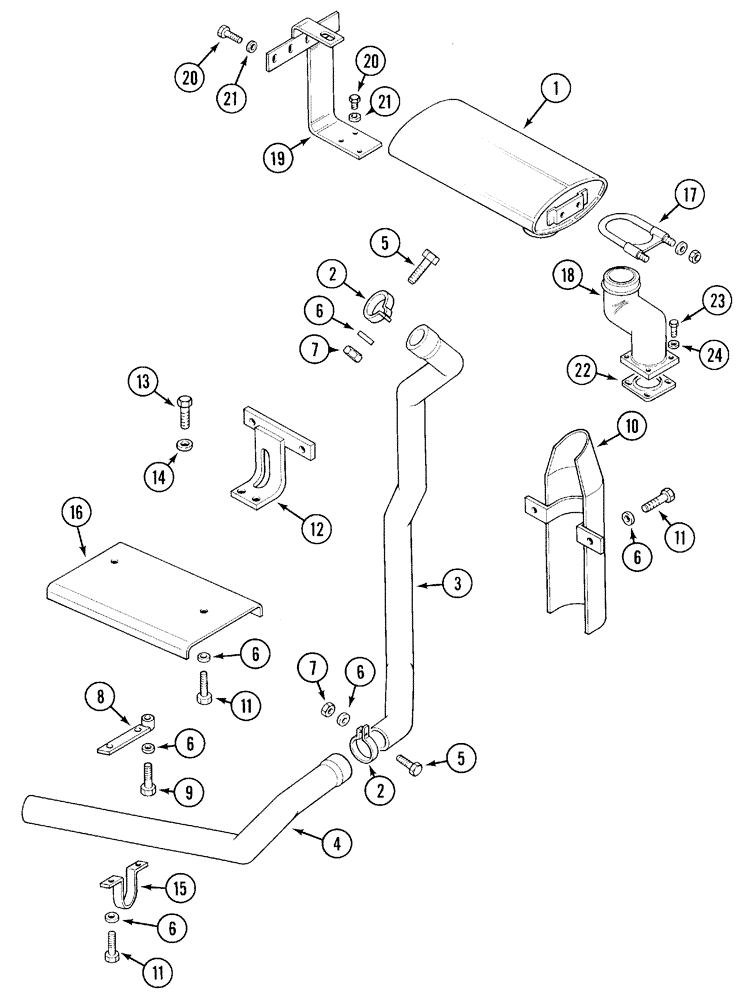

Схема запчастей Case IH 5230 - (2-014) - EXHAUST SYSTEM, 5130/5230, DOWNSWEPT (02) - ENGINE
22
6
20
16
5
6
15
11
1
17
4
7
21
21
24
12
19
2
6
2
11
7
23
3
9
6
11
6
13
18
8
5
10
20
6
14

Артикул

Название

Примечание

Количество

1

1967101C1

MUFFLER

- exhaust

1шт.

2

1534389C1

MOUNTING CLIP

CLAMP - band

2шт.

3

1534615C1

TUBE

PIPE - down

1шт.

4

1534617C1

TUBE,69.85 mm OD, 838, 665 mm Length

PIPE - tail, fuel tank, 170 liter

1шт.

4

1534616C1

TUBE,69.85 mm OD, 838, 665 mm Length

PIPE - tail, fuel tank, 135 liter

1шт.

5

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

6

934281R1

WASHER,M10.5 ID x 20 OD x 2 Thk

- plain, 10.5 mm

8шт.

7

825-1410

NUT,M10, Cl 8

2шт.

8

1534390C1

SUPPORT ASSY.

BRACKET - assembly

1шт.

9

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

- hex, full threads, 10 - 1.5 x 40 mm

1шт.

10

1534392C1

PLATE

SHIELD - downpipe

1шт.

11

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

5шт.

12

1534393C1

SUPPORT ASSY.

SUPPORT - assembly

1шт.

13

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

2шт.

14

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 16 x 1.6 mm

2шт.

15

1534395C1

MOUNTING CLIP

CLAMP - tailpipe

1шт.

16

1533859C1

PLATE

SHIELD - protection

1шт.

17

A189265

CLAMP,80.5mm ID

- muffler

1шт.

18

A184478

TRANSMISSION SLEEVE

ADAPTER - exhaust

1шт.

19

1533161C3

SUPPORT ASSY.

BRACKET - assembly

1шт.

20

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

3шт.

20

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

21

934281R1

WASHER,M10.5 ID x 20 OD x 2 Thk

- plain, 10.5 mm

5шт.

22

J912220

GASKET,0.4mm Thk

-, Serial Range: adapter-engine

1шт.

23

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

24

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

Выбрано товаров: 26
