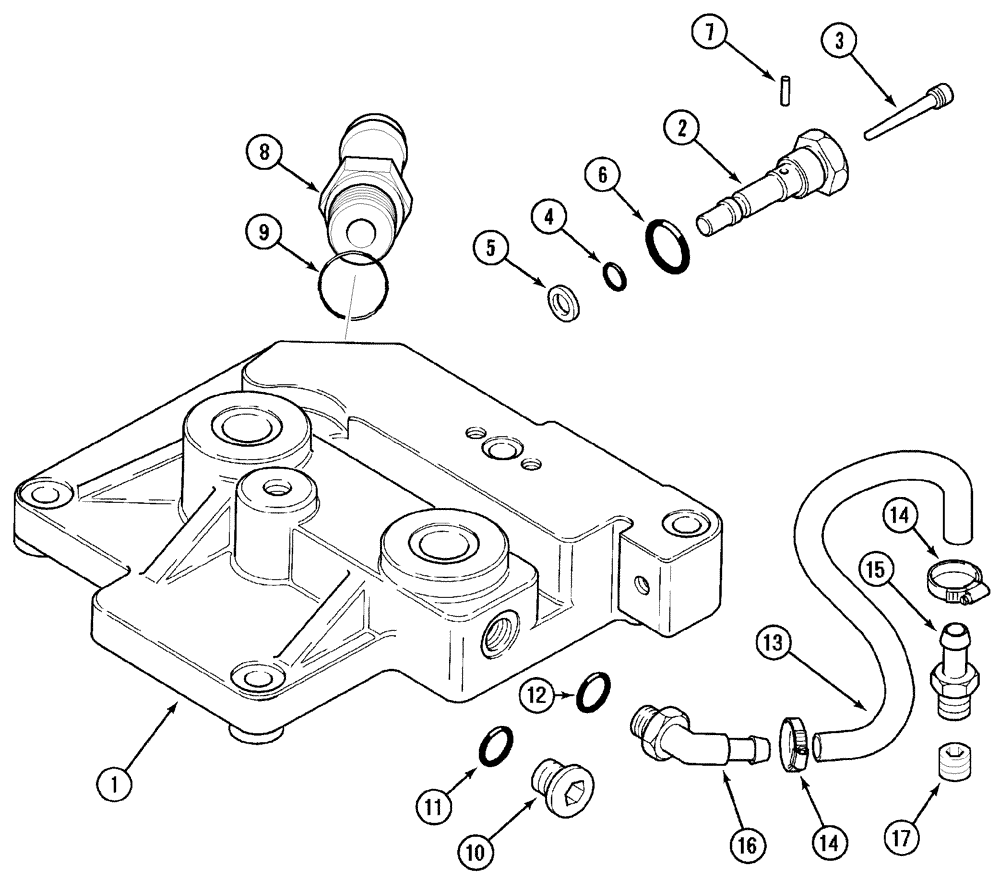

Запчасти Case IH 5230 (8-054) - REMOTE AUXILIARY VALVE MANIFOLD, INLET/OUTLET (08) - HYDRAULICS

1

1986867C1

COVER

- inlet/outlet, transmission JKA54240, Includes Ref: 1-7

1шт.

1

1978043C1

MANIFOLD

COVER ASSEMBLY - inlet/outlet, transmission JKA54239, Includes Ref: 1-7

1шт.

1978044C1

PLUG

- assembly, screen and bleed off, Includes Ref: 2-7

1шт.

2

1978019C1

BODY

- cartridge

1шт.

3

A50763

VALVE

FILTER - modulator

1шт.

4

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

5

G108724

BACK-UP RING

RING - back-up

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

7

138-7

LOCK PIN,1/16" x 9/16", Slotted

PIN, 1/16" x 9/16", Slotted

1шт.

8

1343779C1

FITTING

VALVE - check, auxiliary return (Bruning), See Figure: 8-46, Includes Ref: 9

1шт.

9

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

14-1, 90 Duro, 1.048" ID x .116" Thk

1шт.

8

1534372C1

VALVE, CHECK

VALVE - check, auxiliary return (Voss), See Figure: 8-46, Includes Ref: 9

1шт.

9

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

14-1, 90 Duro, 1.048" ID x .116" Thk

1шт.

10

9625178

PLUG,9/16" - 18 ORB

Incl. Ref 11 Hex Soc, 9/16"-18 ORB

1шт.

427683C2

HYDRAULIC HOSE,6.35 mm ID BULK, SAE 30R6 or SAE 30R7

HOSE - bulk, 1/4 (6) x 1/2 (13) x 600 inch (15240 mm) long

1шт.

12

238-6008

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

Transmission JKA54239 -008, 90 Duro, .176" ID x .070" Thk

1шт.

13

NSS

NOT SOLD SEPARAT

HOSE - 20 inches (Cut from 427683C2), transmission JKA54239

1шт.

14

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP, HOSE, , Adj., Transmission JKA54239 #06, .44/.78 Type F Worm

2шт.

15

217-120

ELBOW,1/4" Hose Barb x 1/8" Male NPTF

ADAPTER - straight, 1/4 barb end x 1/8 inch PT, Transmission JKA54239

1шт.

16

217-292

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

ELBOW - 90 degree, hose, 1/4 barb end x 1/8 inch PT, transmission JKA54239

1шт.

17

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- hex socket, 1/8 inch PT, transmission JKA54239

1шт.

427683C2

HYDRAULIC HOSE,6.35 mm ID BULK, SAE 30R6 or SAE 30R7

HOSE - bulk, 1/4 (6) x 1/2 (13) x 600 inch (15240 mm) long, transmission JKA54239

1шт.

1542861C2

STRIPPER PACKAGE

KIT - single acting cylinder (Order From Wholegoods), transmission JKA54240, Includes Ref: 13-16

1шт.

13

NSS

NOT SOLD SEPARAT

HOSE - 12 inches (Cut from 364357C1), transmission JKA54240

1шт.

14

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP, HOSE, , Adj., Transmission JKA54240 #06, .44/.78 Type F Worm

2шт.

15

217-386

FITTING,3/8" Hose Barb x 3/4" - 18 Male ORB

ADAPTER - hose, straight, 3/8 stem x 3/4-16 inch O-ring, transmission JKA54240

1шт.

16

130912A1

FITTING

- 45 degree (Trans. - JKA54239), transmission JKA54240

1шт.

364357C1

LARGE HOSE

HOSE - bulk, 3/8 (10) ID x 600 inch (15240 mm) long, transmission JKA54240

1шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
