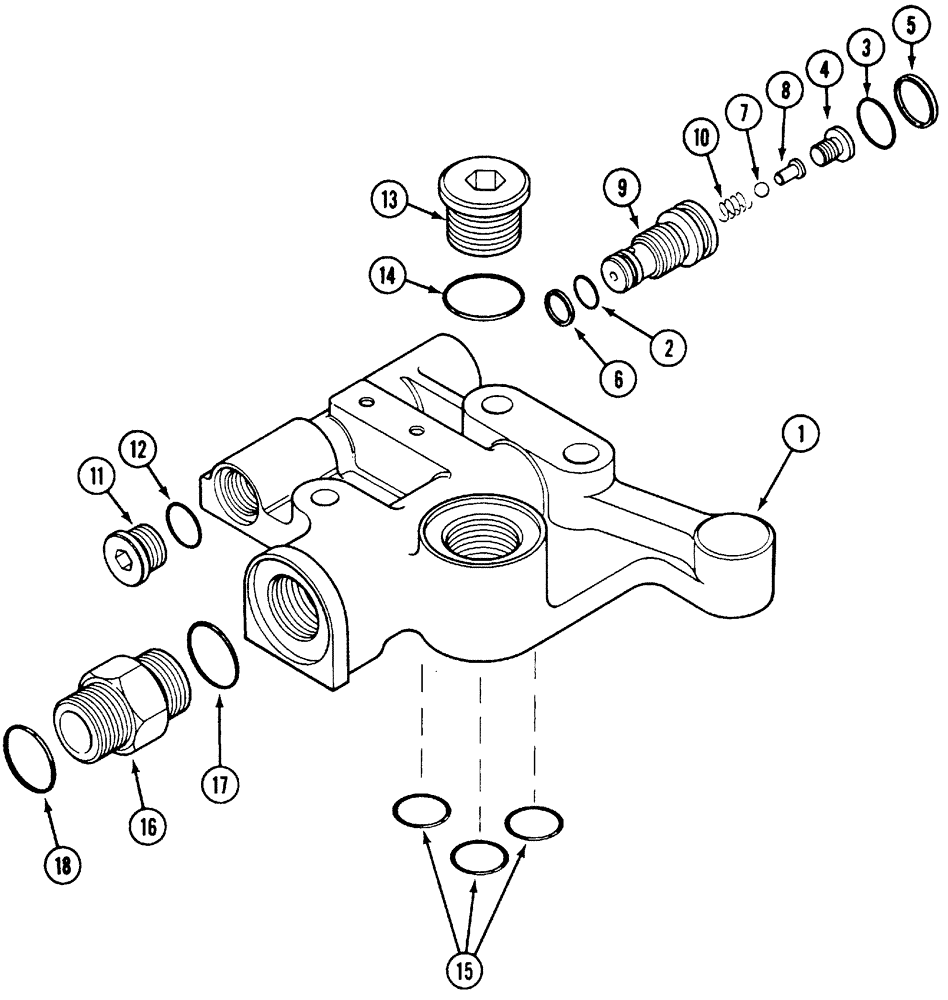

Запчасти Case IH 5230 (8-050) - REMOTE AUXILIARY VALVE END COVER, TRANSMISSION JKA62487 WITH POWER BEYOND (08) - HYDRAULICS

1346446C2

VALVE

KIT - power beyond (Order from whole goods), Includes Ref: 1-15

1шт.

1

1346336C1

COVER

- end

1шт.

1542563C1

KIT

VALVE ASSEMBLY - check, Includes Ref: 2-10

1шт.

2

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

3

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

4

86632547

PLUG,Hex, 5/16"-24 ORB

1шт.

5

G108723

RING,14.34mm ID x 16.94mm OD x 1.32mm Thk

- backup

1шт.

6

G108724

BACK-UP RING

RING - back-up

1шт.

7

211-1007

BALL,7/32" Dia

- chrome alloy steel, 7/32", Class 24

1шт.

8

47-24

RIVET,FH, 1/8" x 1/4"

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - logic check valve

1шт.

10

NSS

NOT SOLD SEPARAT

SPRING - logic check

1шт.

11

9625178

PLUG,9/16" - 18 ORB

Incl. Ref 12 Hex Soc, 9/16"-18 ORB

1шт.

13

9841223

PLUG,1-1/16" - 12 ORB

Incl. Ref: 14 Hex Soc, 1 1/16"-12 ORB

1шт.

14

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

15

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

3шт.

16

1346170C1

ADAPTER

- version with power beyond

1шт.

17

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

16

9841223

PLUG,1-1/16" - 12 ORB

(Version without Power beyond), Incl. Ref: 17 Hex Soc, 1 1/16"-12 ORB

1шт.

17

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

18

238-6008

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
