Запчасти Case IH 5230 (2-010) - EXHAUST SYSTEM, 5130/5230, VERTICAL (02) - ENGINE

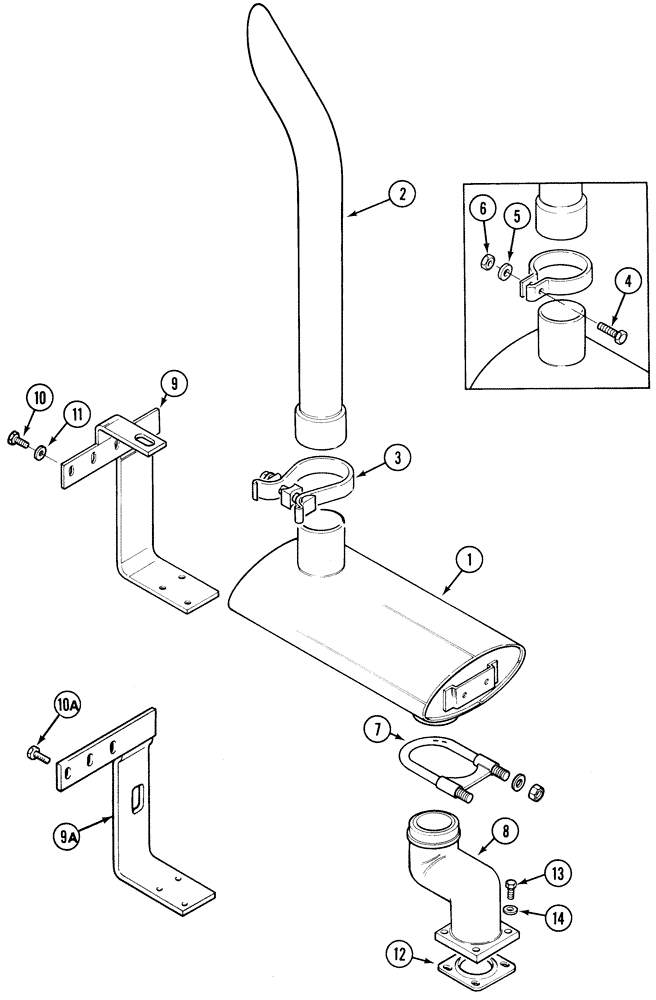

Схема запчастей Case IH 5230 - (2-010) - EXHAUST SYSTEM, 5130/5230, VERTICAL (02) - ENGINE
8
11
5
9a
2
14
3
7
10
1
9
4
10a
6
13
12

Артикул

Название

Примечание

Количество

1

A184475

MUFFLER

- oval

1шт.

2

A189049

PIPE, EXHAUST SYSTEM

EXTENSION - exhaust

1шт.

2

132223A1

PIPE, EXHAUST SYSTEM

EXTENSION - ehxuast, Chrome

1шт.

3

122594A1

CLAMP,86.46mm

- exhaust

1шт.

3

132222A1

CLAMP

- exhaust, (for chrome extension)

1шт.

4

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

( - JJF1029999) Hex, M10 x 40, 8.8, Full Thd

1шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- plain, 11 x 20 x 2 mm ( - JJ1029999)

1шт.

6

825-1410

NUT,M10, Cl 8

( - JJF1029999) M10, Cl 8

1шт.

7

A189265

CLAMP,80.5mm ID

- muffler

1шт.

8

A184478

TRANSMISSION SLEEVE

ADAPTER - exhaust

1шт.

9

1532154C3

SUPPORT ASSY.

BRACKET - support assembly (JJF1000243 - )

1шт.

9a

T102642

BRACKET

- support assembly ( - JJF1000242)

1шт.

10

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

(JJF1000243-) Hex, M10 x 25, 8.8, Full Thd JJF1000243 to

3шт.

10

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

JJF1000243 to

2шт.

10a

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

(-JJF1000242) Hex, M10 x 25, 8.8, Full Thd, Serial Range: -JJF1000242

5шт.

11

934281R1

WASHER,M10.5 ID x 20 OD x 2 Thk

- plain, 10.5 mm

5шт.

12

J912220

GASKET,0.4mm Thk

-, Serial Range: adapter-engine

1шт.

13

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

14

934281R1

WASHER,M10.5 ID x 20 OD x 2 Thk

- plain, 10.5 mm

4шт.

Выбрано товаров: 19
