Запчасти Case IH 5230 (8-032) - INPUT CONTROL VALVE (08) - HYDRAULICS

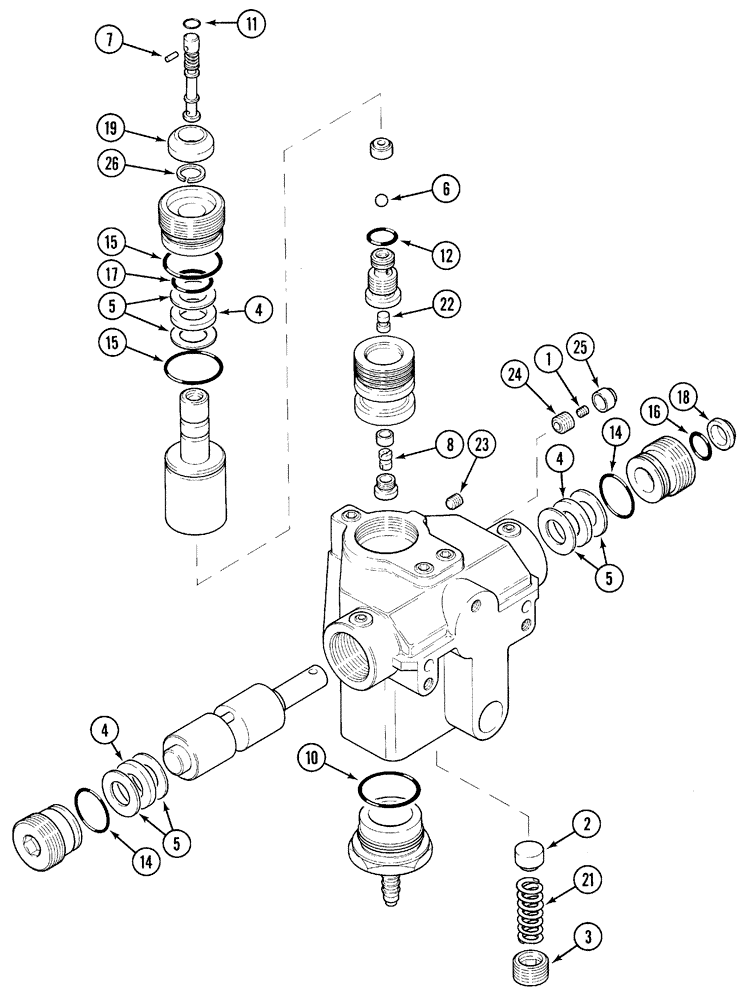

Схема запчастей Case IH 5230 - (8-032) - INPUT CONTROL VALVE (08) - HYDRAULICS
22
3
17
14
4
11
5
1
23
24
8
10
15
7
19
5
21
15
4
26
6
4
12
16
2
18
14
5
25

Артикул

Название

Примечание

Количество

1994557C4

VALVE

- input control (JJF1002875 - ), Includes Ref: 1-25

1шт.

129500A1

SPARE PART SET

KIT - seal and repair, Includes Ref: 1-26

1шт.

1

NSS

NOT SOLD SEPARAT

SCREW - setting, 6 mm x 34 mm

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - brake pad-setting

1шт.

3

NSS

NOT SOLD SEPARAT

ADJUSTER - friction

1шт.

4

NSS

NOT SOLD SEPARAT

BEARING - thrust

3шт.

5

NSS

NOT SOLD SEPARAT

WASHER - back-up, thrust bearing

6шт.

6

NSS

NOT SOLD SEPARAT

BALL - drop rate plug

1шт.

7

NSS

NOT SOLD SEPARAT

PIN - drop rate valve, 2 mm x 9 mm

1шт.

8

NSS

NOT SOLD SEPARAT

ORIFICE - control, 0.5 mm diameter

2шт.

10

238-5021

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

-021, 70 Duro, .926" ID x .070" Thk

1шт.

11

238-5006

O-RING,0.07" Thk x 0.114" ID, -6, Cl 5, 75 Duro

-006, 70 Duro, .114" ID x .070" Thk

1шт.

12

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk

1шт.

14

238-5017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

-017, 70 Duro, .676" ID x .070" Thk

1шт.

15

238-5019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

-019, 70 Duro, .801" ID x .070" Thk

2шт.

16

238-5110

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - mode selector stem, 12 mm x 2.5 mm

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL - setting control stem

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL - mode selector stem

1шт.

21

NSS

NOT SOLD SEPARAT

SPRING - friction, setting spool

1шт.

22

NSS

NOT SOLD SEPARAT

ORIFICE - 4 mm x 7 mm

1шт.

23

NSS

NOT SOLD SEPARAT

SCREW - locking, setting spool

2шт.

24

NSS

NOT SOLD SEPARAT

NUT - seal lock

1шт.

25

NSS

NOT SOLD SEPARAT

COVER - protection

1шт.

26

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

1346010C1

SEAL KIT

- input control valve, seal and repair ( - JJF1002874)

1шт.

Выбрано товаров: 26
