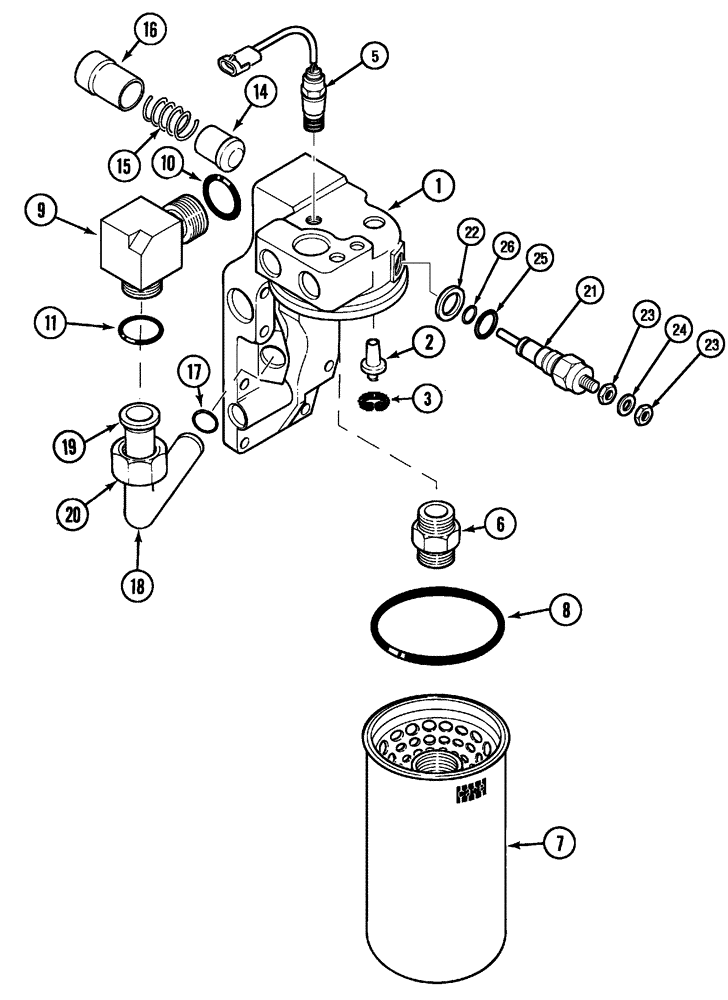

Запчасти Case IH 5230 (8-020) - HYDRAULIC FILTER (08) - HYDRAULICS

1980485C1

FILTER ASSY

FILTER - assembly hydraulic, Includes Ref: 1-26

1шт.

1

1980429C2

BODY

MANIFOLD - hydraulic filter

1шт.

2

1957807C1

VALVE, CHECK

VALVE - assembly, filter by-pass

1шт.

3

A177482

SNAP RING

RING - retaining

1шт.

5

258425A1

SWITCH

- temperature

1шт.

6

A176321

CONNECTOR, ELEC

ADAPTER - filter mounting

1шт.

7

1976934C5

HYDRAULIC OIL FILTER

ELEMENT - filter, Includes Ref: 8

1шт.

8

123010C3

GASKET,119.02mm ID x 128mm OD x 4.9mm Thk

GASKET - filter element

1шт.

9

1340959C1

ELBOW

- 90 degree, adjustable 1-1/4x1 inch, Includes Ref: 10, 11

1шт.

10

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

11

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

14

1340805C1

PISTON

- lube priority

1шт.

15

1340811C1

SPRING

- lube priority

1шт.

16

1340806C1

CASE

BODY - lube priority

1шт.

17

238-5218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

1шт.

18

1980486C1

HYD TUBE,32 mm OD

TUBE - assembly, filter, Includes Ref: 19, 20

1шт.

19

203-934

SLEEVE,ORFS, M32 x 30 Tube, Reducer

- tube, 32 mm

1шт.

20

203-906

TUBE NUT,1 11/16"-12 ORFS

NUT - hex, tube, 1-11/16 face seal

1шт.

N13268

PRESSURE SWITCH

INDICATOR ASSEMBLY - restriction, electrical, Includes Ref: 21-26

1шт.

21

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

22

NSS

NOT SOLD SEPARAT

WASHER - valve

1шт.

23

129-667

NUT,#10-32, LH

2шт.

24

493-21020

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, (3/16") Int Tooth, #10

1шт.

26

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

1шт.

25

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
