(8-016) - HYDRAULIC, DRAFT CONTROL VALVE, VERSION WITH 3 SOLENOIDS

Запчасти Case IH 5230 (8-016) - HYDRAULIC, DRAFT CONTROL VALVE, VERSION WITH 3 SOLENOIDS (08) - HYDRAULICS

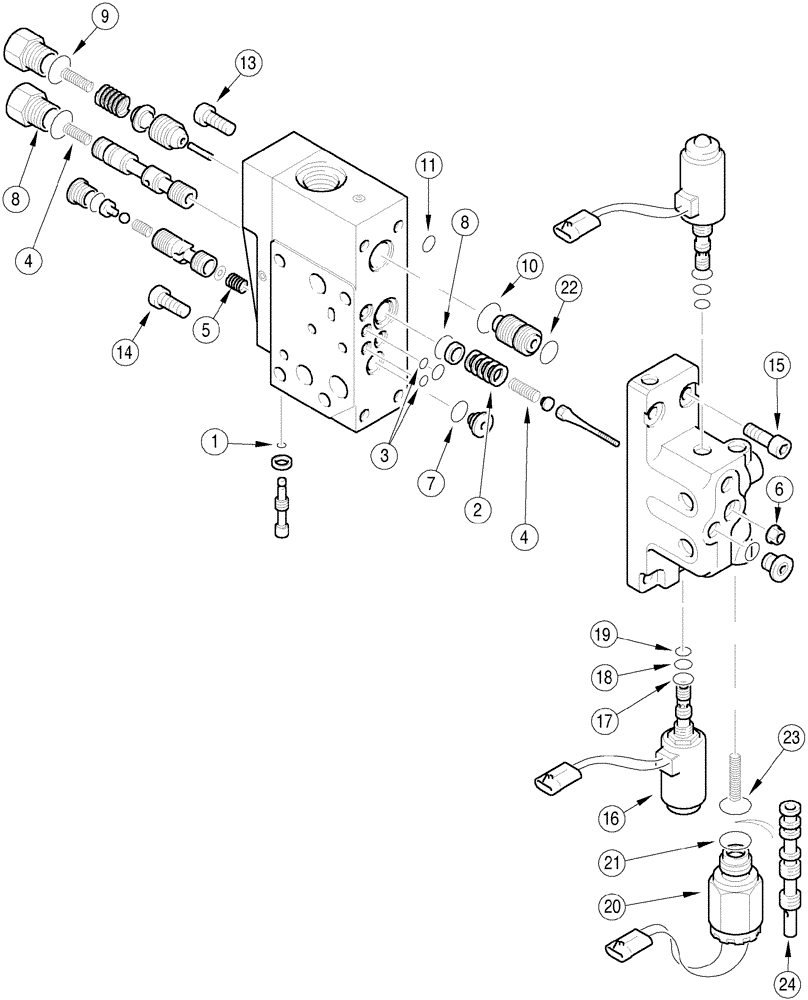

Схема запчастей Case IH 5230 - (8-016) - HYDRAULIC, DRAFT CONTROL VALVE, VERSION WITH 3 SOLENOIDS (08) - HYDRAULICS
6
3
5
8
7
2
16
13
22
9
10
18
23
4
15
21
24
8
20
4
17
11
14
1
19
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1343700C5

VALVE

- draft control, Includes Ref: 1-23

1шт.

1346007C3

SEAL KIT

KIT - seal repair, Includes Ref: 1-12

1шт.

1

NSS

NOT SOLD SEPARAT

O-RING - 2.5 x 1 mm

1шт.

2

NSS

NOT SOLD SEPARAT

SPRING - bellevile

5шт.

3

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

2шт.

4

NSS

NOT SOLD SEPARAT

SPRING - draft control spool

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING - flow control

1шт.

6

NSS

NOT SOLD SEPARAT

NUT - lock, drop control adjusting

2шт.

7

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

-016, 70 Duro, .614" ID x .070" Thk

1шт.

8

238-5019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

-019, 70 Duro, .801" ID x .070" Thk

2шт.

9

238-5021

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

-021, 70 Duro, .926" ID x .070" Thk

1шт.

10

238-5020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 5, 75 Duro

-020, 70 Duro, .864" ID x .070" Thk

1шт.

11

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

5шт.

12

NSS

NOT SOLD SEPARAT

SEAL - outer, emergency drop/bleed screw

1шт.

13

NSS

NOT SOLD SEPARAT

BOLT - 8 x 35 mm class 8.8

4шт.

14

NSS

NOT SOLD SEPARAT

BOLT - 8 x 25 mm class 8.8

2шт.

15

NSS

NOT SOLD SEPARAT

BOLT - 10 x 35 mm class 8.8

4шт.

16

1971474C3

SOLENOID

Draft Control, Includes Ref: 17 - 19

2шт.

17

237-6007

O-RING,0.08" Thk x 0.53" ID, -907, Cl 6, 90 Duro

- 17/32 ID x 3/32 inch wide

2шт.

18

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk

2шт.

19

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

2шт.

20

221441A1

SOLENOID

- third valve assembly, Includes Ref: 21

2шт.

21

238-6017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

1шт.

22

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

23

238-6020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

1шт.

24

1530783C1

SPOOL

- working valve

1шт.
