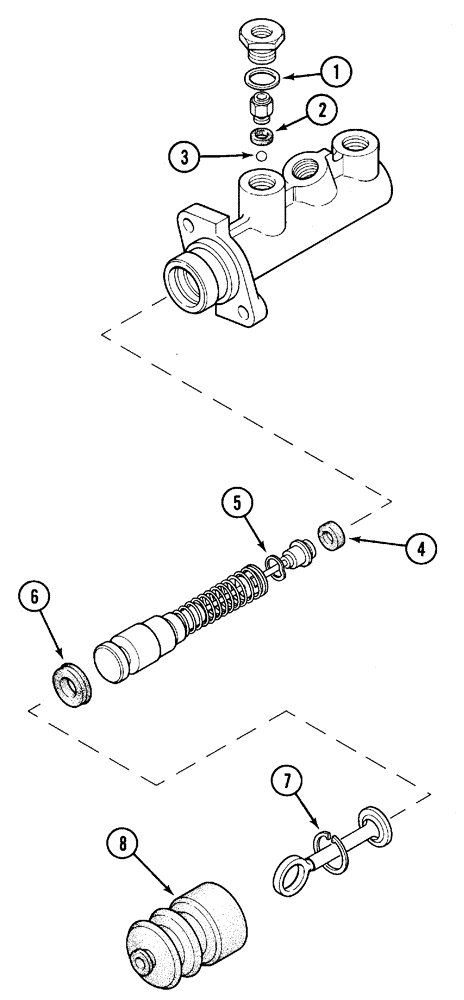

Запчасти Case IH 5230 (7-012) - MASTER CYLINDER (07) - BRAKES

1287734C92

MASTER CYLINDER

CYLINDER ASSEMBLY - brake master, Includes: Ref. 1 - 8

2шт.

1288229C1

KIT

KIT - service, master cylinder seals, Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

GASKET -

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - flow valve

1шт.

3

NSS

NOT SOLD SEPARAT

BALL -

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - valve

1шт.

5

NSS

NOT SOLD SEPARAT

WASHER - spring

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - gland

1шт.

7

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

8

85109C1

BELLOWS

BOOT - master brake cylinder, dust

1шт.
