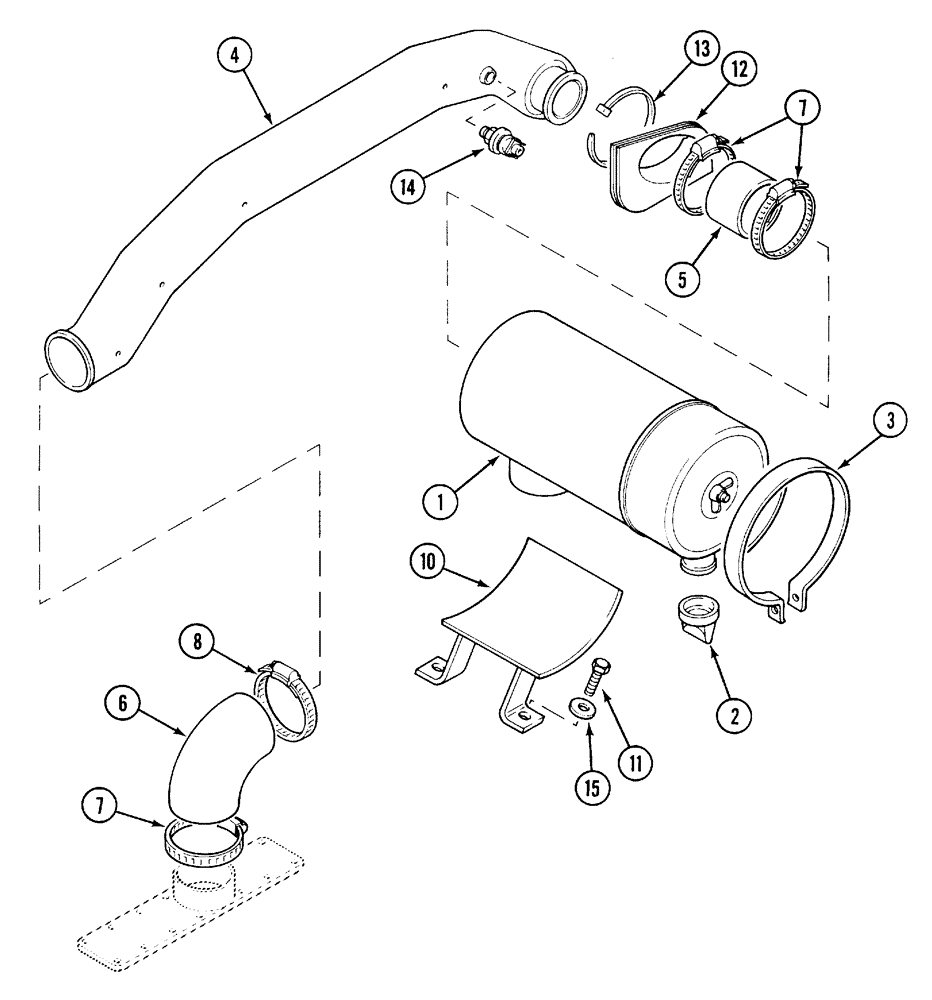

Запчасти Case IH 5230 (2-004) - AIR CLEANER AND CONNECTIONS, 5130/5230 (02) - ENGINE

1

REF

INSTRUCTION

CLEANER - air, See Figure 2-8

1шт.

2

A184939

VALVE

- dust

1шт.

3

T103239

STRAP

BAND - air cleaner mounting

1шт.

4

1530736C2

LARGE HOSE

PIPE - air inlet

1шт.

5

1533407C1

HOSE

- coupling

1шт.

6

T100698

HOSE

ELBOW - air intake

1шт.

7

3219245R1

CLAMP,M70-90, Worm

- hose

3шт.

8

3220461R1

CLAMP,M80-100, Worm

- hose

1шт.

10

1533565C2

SUPPORT ASSY.

SUPPORT - assembly, air cleaner

1шт.

11

614-8018

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 18 mm

2шт.

12

1531505C3

SEAL

SEAL - coupling

1шт.

13

3402979R2

BAND

STRAP - cable tie (Replaced by item 10)

1шт.

14

292950A1

SWITCH

- restriction, air cleaner

1шт.

15

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 16 x 1.6 mm

2шт.
