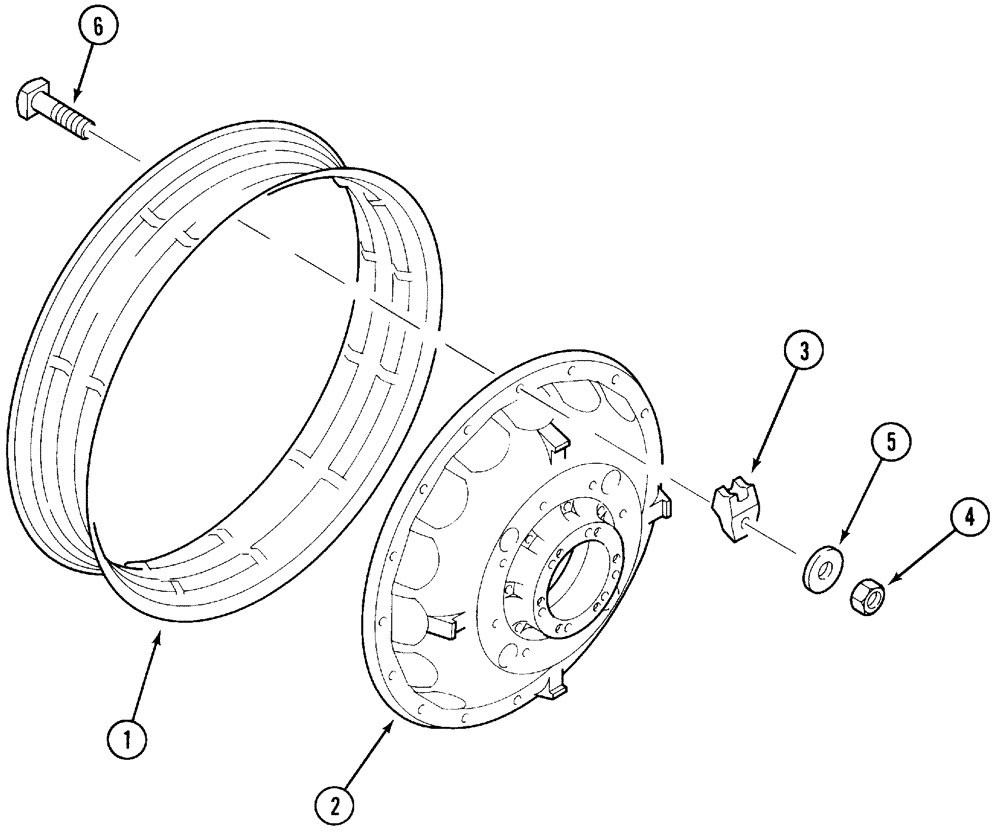

Запчасти Case IH 5230 (6-110) - WHEELS, REAR, CAST, BAR AXLE (06) - POWER TRAIN

1

1334480C1

RIM

- wheel, W16L x 38 (For 18.4-38 Tires)

2шт.

1

A61935

RIM

- wheel, W9 x 42 (For 12.4-42 Tires)

2шт.

1

A33223

RIM

- wheel, W14L x 38 (For 16.9-38 Tires)

2шт.

1

A33168

RIM

- wheel, W15L x 34 (For 16.9-34 Tires)

2шт.

1

A57045

RIM

- wheel, W16L x 34 (For 18.4-34 Tires)

2шт.

1

A33224

RIM

- wheel, WDB12 x 38H (For 13.6-38 Tires)

2шт.

2

T103440

DISC, WHEEL

DISC - wheel, for 13.6-38, 15.5-38, 18.4-38 and 12.4 42 tires

2шт.

2

T103609

DISC, WHEEL

DISC - wheel, for 18.4-38 and 16.9-34 tires

2шт.

3

A57654

CLAMP

- double ramp, manually adjusted (Use with T103609 item 2)

16шт.

3

A61934

CLAMP

- double ramp, manually adjusted (Use with T103440 item 2)

16шт.

4

A161560

WASHER,19.84mm ID x 31.7mm OD x 4.6mm Thk

- clamp nut (Use with T103440 item 2)

16шт.

5

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

16шт.

6

117-618

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

- square head, 3/4 NC x 3-1/2 inch, Class 5

16шт.
