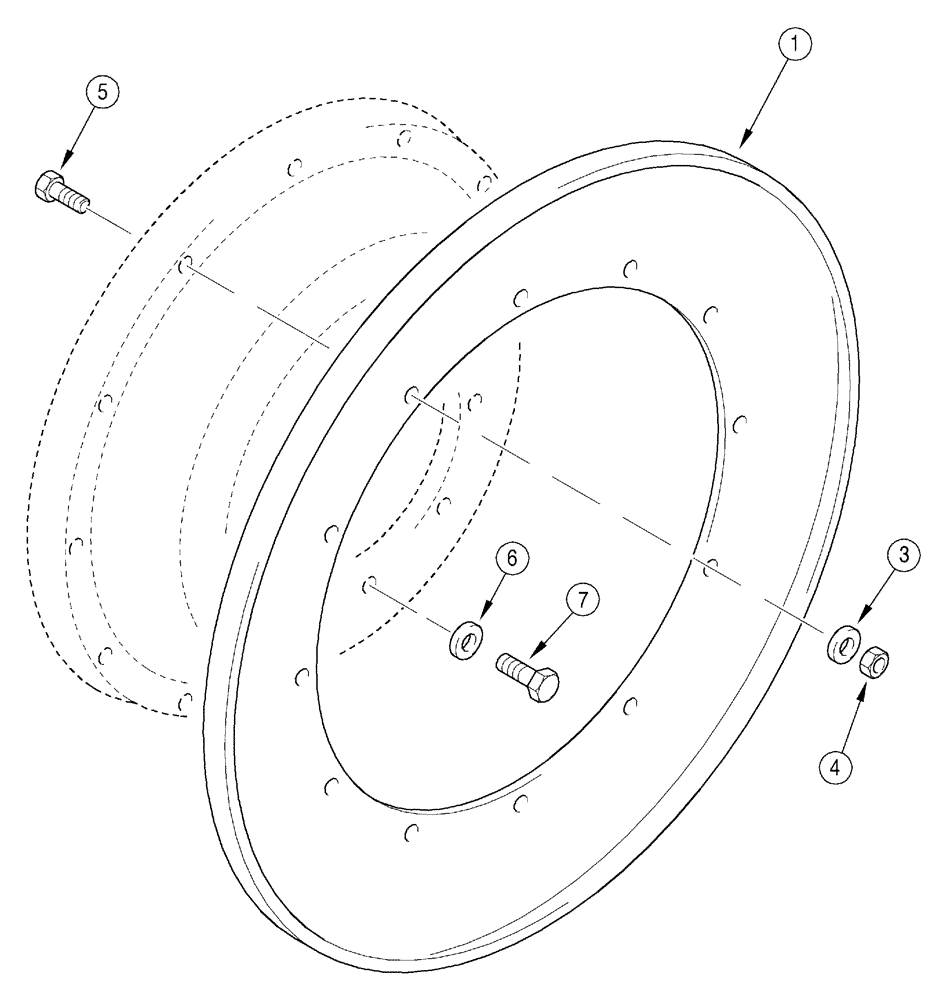

Запчасти Case IH 5230 (6-108) - WHEELS, REAR NON-ADJUSTABLE (06) - POWER TRAIN

1

1533249C1

WHEEL

- rear, DW 12 x 38

2шт.

1

1533250C1

WHEEL

- rear, DW 14 x 38

2шт.

1

1533246C1

WHEEL

- rear, DW 15 x 34

2шт.

1

1533247C1

WHEEL

- rear, DW 16 x 34

2шт.

1

1533251C1

WHEEL

- rear, DW 16 x 38

2шт.

1

1533248C1

WHEEL

- rear, DW 20 x 34

2шт.

1

1987681C1

WHEEL ASSY.

WHEEL - rear, W10 x 54

2шт.

1

1534503C1

WHEEL

- rear, DW 20 x 34

2шт.

3

A161560

WASHER,19.84mm ID x 31.7mm OD x 4.6mm Thk

- clamp nut

24шт.

4

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

24шт.

5

426-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 8

- hex, 3/4 NC x 2-1/4 inch, Class 8

24шт.

6

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

16шт.

7

326-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

16шт.
