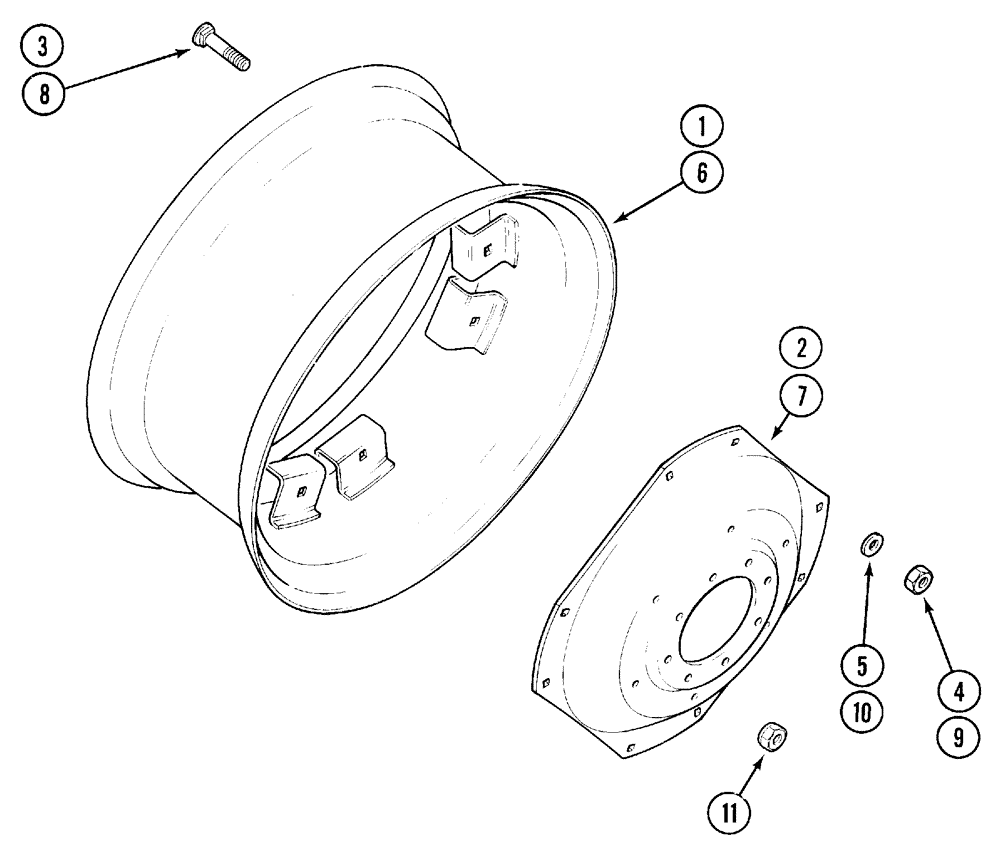

Запчасти Case IH 5230 (6-104) - WHEELS, REAR, ADJUSTABLE (06) - POWER TRAIN

NSS

NOT SOLD SEPARAT

WHEEL - Sankey W15L x 34, flange axle (For 18.4-34 /16.9-34 Tires), Includes Ref: 1-5

2шт.

1

1965784C1

RIM

- wheel

2шт.

2

1531210C2

DISC, WHEEL

DISC - wheel

2шт.

NSS

NOT SOLD SEPARAT

WHEEL - rear DW15 x 38, Flange axle, (For 16.9-38 and 18.4-38 Tires), Includes Ref: 1, 2

2шт.

1

1531209C2

RIM

- wheel

1шт.

2

1533688C2

DISC

- wheel

1шт.

3

1335133C1

PLOW BOLT,Plow, M16 x 2 x 74mm, Cl 10.9

BOLT - carriage, 16 mm - 2.00 x 74 mm

16шт.

4

1335134C1

NUT

- hex, 16 mm - 2.00

16шт.

5

1335135C1

WASHER

- flat, 17 x 33 x 5 mm

16шт.

NSS

NOT SOLD SEPARAT

WHEEL - Lemmerz W15L x 34, flange axle (For 18.4-34 /16.9-34 Tires), Includes Ref: 1-5

2шт.

1

1533944C1

RIM

- wheel

2шт.

2

1533945C1

DISC, WHEEL

DISC - wheel

2шт.

3

3404231R2

BOLT

BOLT - carriage, 16 x 120 mm

16шт.

4

3404233R2

NUT

- hex, 16 mm ( replaced P34615)

16шт.

5

P34615

DEUTZ PART

WASHER - flat ( replaced 3404233R2 )

16шт.

NSS

NOT SOLD SEPARAT

WHEEL - Nagbol W16L x 34, flange axle (For 18.4-34 Tires), Includes Ref: 6-10

2шт.

6

1531649C1

RIM

- wheel

2шт.

7

1533678C2

DISC

- wheel

2шт.

8

1335133C1

PLOW BOLT,Plow, M16 x 2 x 74mm, Cl 10.9

BOLT - carriage, 16 mm - 2.00 x 74 mm

16шт.

9

1335134C1

NUT

- hex, 16 mm - 2.00

16шт.

10

1335135C1

WASHER

- flat, 17 x 33 x 5 mm

16шт.

NSS

NOT SOLD SEPARAT

WHEEL - Lemmerz W16L x 34, flange axle (For 18.4-34 Tires), Includes Ref: 6-10

2шт.

6

122726A1

RIM

- wheel

2шт.

7

1533945C1

DISC, WHEEL

DISC - wheel

2шт.

8

3404231R2

BOLT

BOLT - carriage, 16 x 120 mm

16шт.

9

P34615

DEUTZ PART

NUT - hex, 16 mm

16шт.

10

3404233R2

NUT

WASHER - flat

16шт.

11

3232736R1

WHEEL NUT,Wheel, M20 x 1.5

- wheel, 20 mm

16шт.
