Запчасти Case IH 5230 (6-102) - WHEELS, REAR, 24, 26, 28 AND 30 INCH ADJUSTABLE (06) - POWER TRAIN

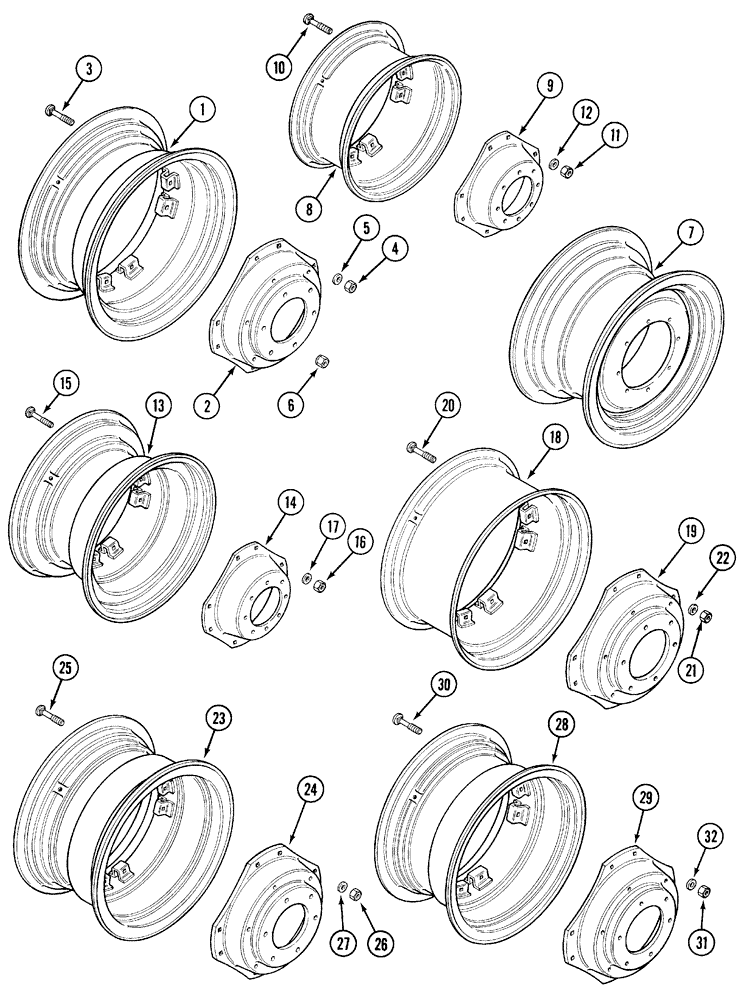

Схема запчастей Case IH 5230 - (6-102) - WHEELS, REAR, 24, 26, 28 AND 30 INCH ADJUSTABLE (06) - POWER TRAIN
27
23
31
15
24
16
22
8
18
5
9
29
19
4
28
6
1
11
2
3
25
14
32
10
26
7
20
30
12
17
13
21

Артикул

Название

Примечание

Количество

NSS

NOT SOLD SEPARAT

WHEEL - rear, DW15 x 30, flange axle (For 18.4-30 and 16.9-30 Tires), Includes Ref: 1-5

2шт.

1

1531606C1

RIM

- wheel

2шт.

2

1531609C2

DISC, WHEEL

DISC - wheel

2шт.

3

1335133C1

PLOW BOLT,Plow, M16 x 2 x 74mm, Cl 10.9

BOLT - carriage, 16 mm - 2.00 x 74 mm

16шт.

4

1335134C1

NUT

- hex, 16 mm - 2.00

16шт.

5

1335135C1

WASHER

- flat, 17 x 33 x 5 mm

16шт.

6

3232736R1

WHEEL NUT,Wheel, M20 x 1.5

- wheel, 20 mm

16шт.

7

1531594C1

WHEEL

- rear, Bar Axle, DW16 x 30 (For 18.4-30 and 16.9-30 Tires)

2шт.

NSS

NOT SOLD SEPARAT

WHEEL - rear, W15L x 24 (For 16.9-24 Tires), Includes Ref: 8-12

2шт.

8

1531573C1

RIM

- wheel

2шт.

9

1533670C2

DISC

- wheel

2шт.

10

1335133C1

PLOW BOLT,Plow, M16 x 2 x 74mm, Cl 10.9

BOLT - carriage, 16 mm - 2.00 x 74 mm

16шт.

11

1335134C1

NUT

- hex, 16 mm - 2.00

16шт.

12

1335135C1

WASHER

- flat, 17 x 33 x 5 mm

16шт.

NSS

NOT SOLD SEPARAT

WHEEL - rear, DW16 x 26 (For 18.4-26 Tires), Includes Ref: 13-17

2шт.

13

1531597C1

RIM

- wheel

2шт.

14

1533672C1

DISC, WHEEL

DISC - wheel

2шт.

15

1335133C1

PLOW BOLT,Plow, M16 x 2 x 74mm, Cl 10.9

BOLT - carriage, 16 mm - 2.00 x 74 mm

16шт.

16

1335134C1

NUT

- hex, 16 mm - 2.00

16шт.

17

1335135C1

WASHER

- flat, 17 x 33 x 5 mm

16шт.

NSS

NOT SOLD SEPARAT

WHEEL - rear, W15L x 28 (For 16.9-28 Tires), Includes Ref: 18-22

2шт.

18

1531595C1

RIM

- wheel

2шт.

19

1531596C2

DISC, WHEEL

DISC - wheel

2шт.

20

1335133C1

PLOW BOLT,Plow, M16 x 2 x 74mm, Cl 10.9

BOLT - carriage, 16 mm - 2.00 x 74 mm

16шт.

21

1335134C1

NUT

- hex, 16 mm - 2.00

16шт.

22

1335135C1

WASHER

- flat, 17 x 33 x 5 mm

16шт.

NSS

NOT SOLD SEPARAT

WHEEL - rear DW20A x 30 (For 23.1-30 Tires), Includes Ref: 23-27

2шт.

23

1531602C1

RIM

- wheel

2шт.

24

1533677C1

DISC, WHEEL

DISC - wheel

2шт.

25

1335133C1

PLOW BOLT,Plow, M16 x 2 x 74mm, Cl 10.9

BOLT - carriage, 16 mm - 2.00 x 74 mm

16шт.

26

1335134C1

NUT

- hex, 16 mm - 2.00

16шт.

27

1335135C1

WASHER

- flat, 17 x 33 x 5 mm

16шт.

NSS

NOT SOLD SEPARAT

WHEEL - rear DW16 x 30 (For 18.4-30 Tires), Includes Ref: 28-30

2шт.

28

1531605C1

RIM

- wheel

2шт.

29

1533676C1

DISC, WHEEL

DISC - wheel

2шт.

30

1335133C1

PLOW BOLT,Plow, M16 x 2 x 74mm, Cl 10.9

BOLT - carriage, 16 mm - 2.00 x 74 mm

16шт.

31

1335134C1

NUT

- hex, 16 mm - 2.00

16шт.

32

1335135C1

WASHER

- flat, 17 x 33 x 5 mm

16шт.

196788A1

VENT (AIR)

VALVE - tubeless tyres, tubeless tyres, (Not shown)

2шт.

Выбрано товаров: 39
