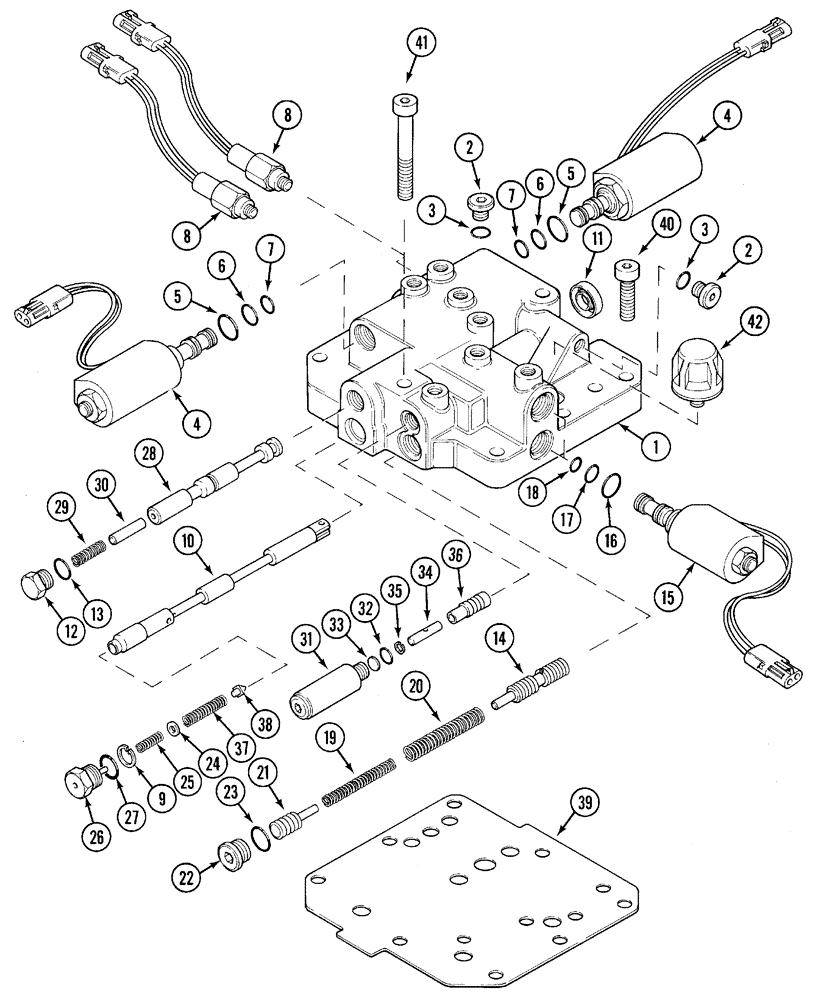

Запчасти Case IH 5230 (6-064) - TRANSMISSION, FORWARD/REVERSE SHUTTLE VALVE (06) - POWER TRAIN

117547A3

VALVE

- forward/reverse shuttle, Includes: Ref. 1 - 38

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - shuttle valve

1шт.

2

278548

PLUG,Hex, 7/16"-20 ORB

Incl Ref 3 Hex Soc, 7/16"-20 ORB

3шт.

3

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

4

118872A1

VALVE

SOLENOID - Trans. control, Includes: Ref. 5 - 7

2шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

6

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

1шт.

7

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

-014, 70 Duro, .489" ID x .070" Thk

1шт.

8

121767A1

SWITCH

- pressure

2шт.

9

1341923C1

RING

- retaining

1шт.

10

1341922C1

SPOOL

- inching

1шт.

11

A37558

SEAL,14.27mm ID x 28.7mm OD x 6.73mm Thk

- oil

1шт.

12

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 13 Hex Soc, 3/4"-16 ORB

3шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

14

1971792C2

SPOOL

- modulating pressure

1шт.

15

1971474C3

SOLENOID

- differential lock, Includes: Ref. 16 - 18

2шт.

Includes 2 solenoid : Modulation solenoid and differential lock solenoid.

1шт.

16

237-6007

O-RING,0.08" Thk x 0.53" ID, -907, Cl 6, 90 Duro

- 17/32 ID x 3/32 inch wide

1шт.

17

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk

1шт.

18

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

1шт.

19

1346331C1

SPRING

- modulation, inner

1шт.

1346331C1 is 2.87" long with 19 working coils. I did find another inner spring (which is not cataloged anywhere) 1971795C1 is 3.65" long and has 26 working coils.

1шт.

20

1971794C1

VALVE SPRING

SPRING - modulating, outer

1шт.

21

1971793C1

PISTON

- accumulator

1шт.

22

86625138

PLUG,7/18" - 14

Includes Ref. 23 Hex Soc, 7/8"-14 ORB

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

24

A61989

WASHER,4.95mm ID x 9.27mm OD x 1.02mm Thk

- spring guide

1шт.

25

A61988

SPRING

- modulator, secondary

1шт.

26

A61985

PLUG

- modulator with O-ring, Includes: Ref. 27

1шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

28

1980109C1

SPOOL

- sequencing

1шт.

29

1980108C1

SPRING

- jump start

1шт.

30

A183694

SPACER

- sequencing spool

1шт.

31

1976956C1

VALVE

- assembly, temp. compensation, Includes: Ref. 32, 33

1шт.

32

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

33

1954071C1

WASHER

- pressure regulator valve

1шт.

34

1971836C1

SPOOL

- sliding orifice

1шт.

35

1976933C1

RING

- stop

1шт.

36

1978045C4

FILTER

- assembly, orifice unload

1шт.

37

1978381C1

SPRING

- modulator return

1шт.

38

A61991

POINT

VALVE - modulator point

1шт.

39

A188208

GASKET

-, Serial Range: valve-housing

1шт.

40

861-10045

HEX SOC SCREW,M10 x 45mm, Cl 12.9

BOLT - hex socket, 10 - 1.5 x 45 mm, class 12.9

6шт.

41

861-10090

HEX SOC SCREW,M10 x 90mm, Cl 12.9

BOLT - hex socket, 10 - 1.5 x 90 mm, Class 12.9

2шт.

42

1971726C1

BREATHER,1/4" - 18

- hydraulic unit housing, 1/4 inch PT

1шт.
