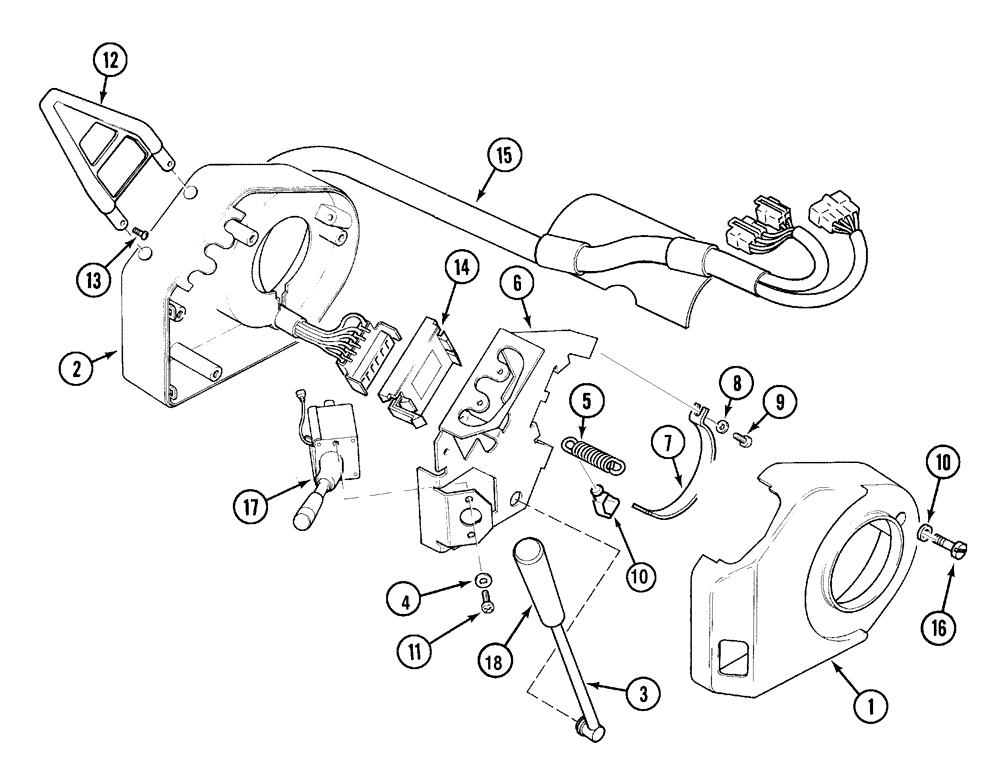

Запчасти Case IH 5230 (6-062) - TRANSMISSION, FORWARD/NEUTRAL/REVERSE SHUTTLE CONTROLS, JJF1030000 (06) - POWER TRAIN

122485A5

CASE ASSY.

CONTROL ASSEMBLY - Forward/Neutral/Reverse, Includes Ref: 1-17

1шт.

1

130483A2

COVER

- forward/neutral/reverse, upper

1шт.

2

130484A2

COVER

- forward/neutral/reverse, lower

1шт.

144629A2

LEVER ASSY.

LEVER ASSEMBLY - forward/neutral/reverse, Includes Ref: 3

1шт.

3

NSS

NOT SOLD SEPARAT

LEVER -

1шт.

4

892-11004

LOCK WASHER,M4

WASHER, LOCK, M4

6шт.

5

144630A1

SPRING

- lever return

1шт.

144626A3

SUPPORT ASSY.

BRACKET ASSEMBLY - switch/column mounting, Includes Ref:6-11

1шт.

6

NSS

NOT SOLD SEPARAT

BRACKET - switch mounting

1шт.

7

NSS

NOT SOLD SEPARAT

CLAMP - mounting

1шт.

8

893-16005

LOCK WASHER,Int Tooth, M5

WASHER, LOCK, Int Tooth, M5

1шт.

9

864-5025

HEX SOC SCREW,M5 x 25mm, Cl 8.8

1шт.

10

241096A1

PLASTIC RING

BUSHING - spring anchor

1шт.

11

840-146

SCREW,Pan, M4 x 6mm, Cl 4.8

- panhead, Phillips, 4 - 0.7 x 6 mm

2шт.

12

144625A1

PROTECTOR

GUARD - lever

1шт.

13

905974R1

SELF-TAP SCREW,Pan Hd, M2.9 x 13

SCREW, SELF TAPPING, Pan Hd, M2.9 x 13

2шт.

14

144631A1

TOGGLE SWITCH

SWITCH - forward/neutral/reverse

1шт.

15

144632A2

CABLE ASSY.

HARNESS - forward/neutral/reverse

1шт.

16

840-1410

SCREW,Pan, M4 x 10mm, Cl 4.8

4шт.

17

123656A1

SWITCH ASSY

SWITCH - assembly,flasher/horn lever

1шт.

18

1981858C1

HANDLE

KNOB - forward/reverse shift

1шт.
