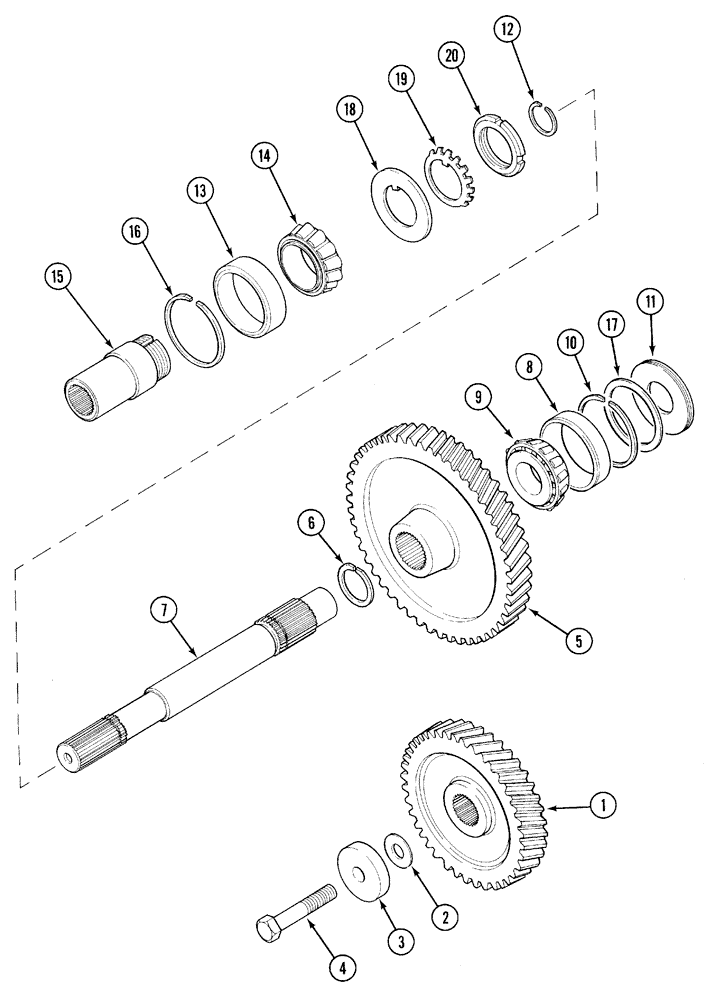

Запчасти Case IH 5230 (6-022) - TRANSMISSION, MAIN DRIVE, WITHOUT CREEPER (06) - POWER TRAIN

1

114979A1

PINION

GEAR - drive, 35T (51/5230/51/5240 Trans. JKA70033 - )

1шт.

1

A186746

PINION

GEAR - drive, 39T (51/5230/51/5240 Trans. JKA60730 - 70032)

1шт.

1

A183850

GEAR WHEEL

GEAR - drive, 38T (51/5230/51/5240 Trans. - JKA60729)

1шт.

1

A186746

PINION

GEAR - drive, 39T (5250 Trans. JKA60730 - 62943)

1шт.

1

114979A1

PINION

GEAR - drive, 35T (5250 Trans. JKA62944 - )

1шт.

2

A158879

SHIM,13mm ID x 30mm OD x 0.08mm Thk

1шт.

2

A158880

SHIM,13mm ID x 30mm OD x 0.31mm Thk

1шт.

3

A75206

WASHER,13.5mm ID x 50.8mm OD x 9.53mm Thk

- hardened

1шт.

4

828-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

- hex, 12 - 1.75 x 60 mm

1шт.

5

114978A1

PINION

GEAR - driven, 52T (51/5230/51/5240 Trans. JKA70033 - )

1шт.

5

A186745

GEAR

- driven, 52T (51/5230/51/5240 Trans. JKA60730 - 70032)

1шт.

5

A183851

GEAR WHEEL

GEAR - driven, 53T (51/5230/51/5240 Trans. - JKA60729)

1шт.

5

A186745

GEAR

- driven, 52T (5250 Trans. JKA60730 - 62943)

1шт.

5

114978A1

PINION

GEAR - driven, 52T (5250 Trans. JKA62944 - )

1шт.

6

100-11162

SNAP RING,#162, Ext

Ring, Snap, #162, Ext

1шт.

7

A188775

SHAFT

- main

1шт.

8

A175395

ROLLER BEARING,76.225 mm OD x 19.101 mm

- cup

1шт.

9

206214R91

CONE,36.49mm ID x 25.65mm W

BEARING - cone

1шт.

10

100-21300

SNAP RING,3.00", Int, #300

Ring, Snap, 3.00", Int, #300

1шт.

11

1341140C1

DEFLECTOR

SLINGER - oil

1шт.

12

800-5135

SNAP RING,M35, Ext, Hvy

RING - retaining, external, 31.7 mm

1шт.

13

364462C1

BEARING CUP,82.55mm OD x 16.51mm W

BEARING - cup

1шт.

14

364463C91

BEARING ASSY,2.0005" ID x 3.2283" OD x 0.875"

BEARING - tapered roller

1шт.

15

1345906C1

SPLINED COUPLING,21T

COLLAR - shuttle drive shaft

1шт.

16

100-21325

SNAP RING,3.25", Int, #325

Ring, Snap, 3.25", Int, #325

1шт.

17

A188877

SHIM,63mm ID x 75mm OD x 0.1mm Thk

(For Synchro Shift) 0.100mm Thk

1шт.

17

A188878

SHIM,63mm ID x 75mm OD x 0.36mm Thk

(For Synchro Shift) 0.356mm Thk

1шт.

17

A188879

SHIM,0.500mm Thk

(For Synchro Shift) 0.500mm Thk

1шт.

18

A186366

WASHER, THRUST

WASHER - thrust

1шт.

19

55-2010

LOCK WASHER,Type TW-110

WASHER - lock

1шт.

20

54-2010

BEARING LOCK NUT,Bearing, 1.9685" Bore

NUT - locking

1шт.
