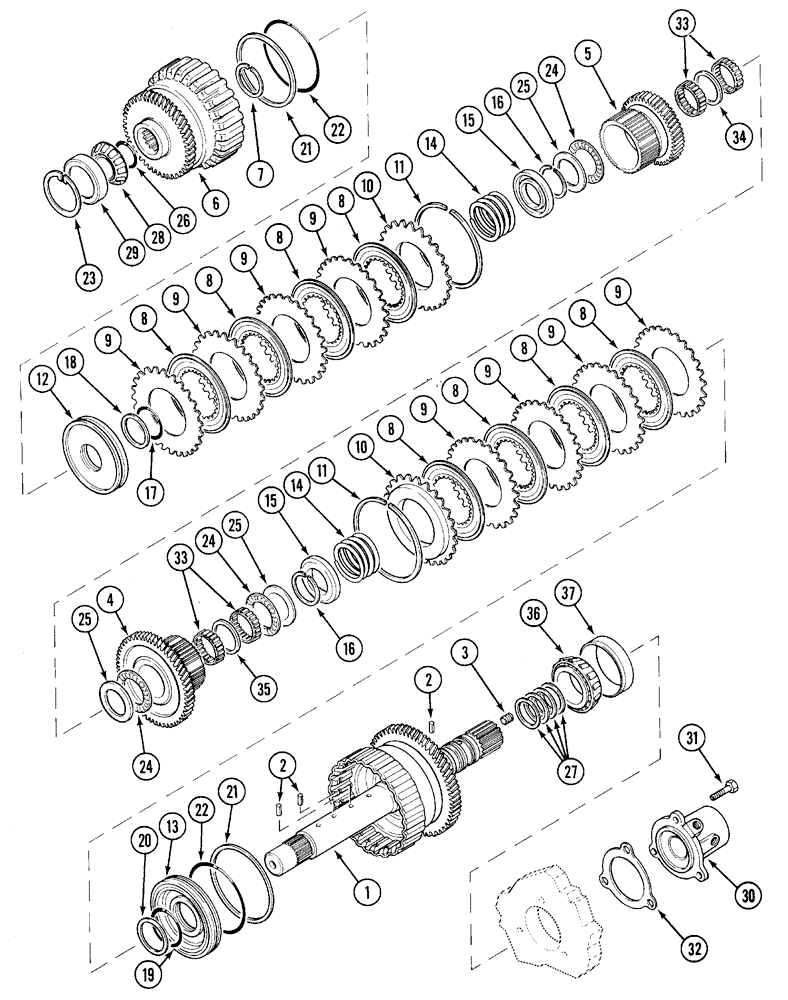

Запчасти Case IH 5230 (6-010) - TRANSMISSION, SPEED GEARS, INPUT SHAFT, POWER SHIFT (06) - POWER TRAIN

1

REF

INSTRUCTION

SHAFT - assy, input (51/5230/51/5240 Trans. - JKA0060401) (Not Available)

1шт.

Order JKA60402 - and after Ref 1, 27, 30, & 36 for earlier units

1шт.

1

113555A1

SHAFT ASSY.

SHAFT - assembly, input, 447.2mm (All Trans. JKA0060402 - ), Includes Ref: 2, 3

1шт.

Part of input shaft assy. P/N REF

1шт.

2

38-1804

LOCK PIN,3.17mm OD x 6.35mm L, Slotted

PIN, LOCK, 1/8" x 1/4", Slotted

3шт.

3

1342851C1

PLUG

- sealing, 10 mm (Use with 1341161C1)

3шт.

4

1995342C2

SPROCKET ASSY.

GEAR - drive, 3rd gear, 51T (5250 Trans. JKA0060402 - )

1шт.

4

1995197C1

PINION

GEAR - drive, 3rd gear, 61T (5250 Trans. - JKA0060401)

1шт.

4

1995342C2

SPROCKET ASSY.

GEAR - drive, 3rd gear, 51T (51/5230/51/5240 Trans. JKA0070033 - )

1шт.

4

1995197C1

PINION

GEAR - drive, 3rd gear, 61T (51/5230/51/5240 Trans. - JKA0070032)

1шт.

5

1995348C1

SPROCKET ASSY.

GEAR - drive, 1st gear 41T (51/5230/51/5240 Trans. JKA0070033 - )

1шт.

5

1995190C1

SPROCKET ASSY.

GEAR - drive, 1st gear, 48T (51/5230/51/5240 Trans. - JKA0070032)

1шт.

5

1995348C1

SPROCKET ASSY.

GEAR - drive, 1st gear 41T (5250 Trans. JKA0060402 - )

1шт.

5

1995190C1

SPROCKET ASSY.

GEAR - drive, 1st gear, 48T (5250 Trans. - JKA0060401)

1шт.

6

1995346C1

SPROCKET ASSY.

GEAR - drive, 2nd gear, 46T

1шт.

7

100-11175

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

1шт.

8

1997129C1

NOTCHED DISK

PLATE - friction (All 5250 tractors)

8шт.

8

1997129C1

NOTCHED DISK

PLATE - friction (Trans. JKA0073451 - )(See Note Below)

8шт.

The clutch plates 1997129C1 can be installed in 51/5230/51/5240 Transmissions. Prior to JKA0073450 " Only as a complete set". Do not mix A188946 and 1997129C1 in the same clutch.

1шт.

8

A188946

DRIVE PLATE,81.9mm ID x 127mm OD x 2.6mm Thk

PLATE - clutch, friction (Trans. - JKA0073450)

8шт.

The clutch plates 1997129C1 can be installed in 51/5230/51/5240 Transmissions. Prior to JKA0073450 " Only as a complete set". Do not mix A188946 and 1997129C1 in the same clutch.

1шт.

9

A175806

PLATE

- clutch

8шт.

10

1997122C1

PLATE

- clutch backing

4шт.

11

139987A1

SNAP RING,126.34mm ID x 142.4mm OD x 2.82mm Thk

RING - retaining

4шт.

12

A159239

PISTON

- forward clutch

2шт.

13

A159292

PISTON

- clutch

2шт.

14

A188080

SPRING

- return

4шт.

15

A188044

RETAINER

- spring

2шт.

16

100-16175

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

2шт.

17

238-5135

O-RING,0.103" Thk x 1.925" ID, -135, Cl 5, 75 Duro

- 2-1/16 ID x 3/32 inch wide

1шт.

18

A159295

SEAL,44.2mm ID x 50.7mm OD x 3.1mm Thk

- piston

1шт.

19

238-5137

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

1шт.

20

A159297

SEAL,47.2mm ID x 54.1mm OD x 3.1mm Thk

SEAL - piston, internal

1шт.

21

A158051

SEAL,116.49mm ID x 123.91mm OD x 3.07mm Thk

- piston, external

2шт.

22

238-5156

O-RING,0.103" Thk x 4.237" ID, -156, Cl 5, 75 Duro

Clutch piston external -156, 70 Duro, 4.237" ID x .103" Thk

2шт.

23

100-21300

SNAP RING,3.00", Int, #300

Ring, Snap, 3.00", Int, #300

1шт.

24

A183452

THRUST BEARING,45.05mm ID x 66.85mm OD x 3.85mm W

BEARING - thrust

3шт.

25

A188192

WASHER, THRUST,45.05mm ID x 64.94mm OD x 2.05mm Thk

WASHER - thrust

3шт.

26

238-5324

O-RING,0.21" Thk x 1.35" ID, -324, Cl 5, 75 Duro

-324, 70 Duro, 1.35" x .210" Thk, 2nd Gear

1шт.

27

1995100C1

SEAL,41.66mm ID x 44.98mm OD x 2.38mm Thk

RING - shaft sealing (All Trans. JKA0060402 - )

4шт.

27

A188653

SEALING RING

RING - shaft sealing (51/5230/51/5240 Trans. - JKA0060401)

4шт.

Part of input shaft assy. P/N REF

1шт.

28

206214R91

CONE,36.49mm ID x 25.65mm W

BEARING - cone

1шт.

29

A175395

ROLLER BEARING,76.225 mm OD x 19.101 mm

- cup

1шт.

30

A188647

HUB

- oil distribution (Trans. - JKA0060401)

1шт.

Part of input shaft assy. P/N REF

1шт.

30

1995099C1

HUB

- oil distribution (Trans. JKA0060402 - )

1шт.

31

628-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

3шт.

32

A188648

SHIM,83.7mm ID x 119.5mm OD x 0.09mm Thk

1шт.

32

A188649

SHIM,83.7mm ID x 119.5mm OD x 0.14mm Thk

1шт.

32

A188650

SHIM,83.7mm ID x 119.5mm OD x 0.28mm Thk

1шт.

32

A188651

SHIM,83.7mm ID x 119.5mm OD x 0.69mm Thk

1шт.

33

A178460

NEEDLE BEARING,44.99mm ID x 50.02mm OD x 16.8mm W

BEARING - needle

4шт.

34

A188194

RING,46.25mm ID x 49.8mm OD x 6.38mm Thk

- inner

1шт.

35

A178469

RING,46.25mm ID x 49.8mm OD x 2.29mm Thk

- inner, 3rd driver

1шт.

36

1995417C1

BEARING ASSY,46.04mm ID x 25.48mm W

BEARING - tapered roller (All Trans JKA0060402 - )

1шт.

36

130504H

ROLLER BEARING,42.887 mm ID x 25.48 mm

BEARING - tapered roller (51/5230/51/5240 Trans. - JKA0060401)

1шт.

Part of input shaft assy. P/N REF

1шт.

37

130503H

BEARING CUP

CUP - tapered roller bearing, 3-17/64 inch OD

1шт.
