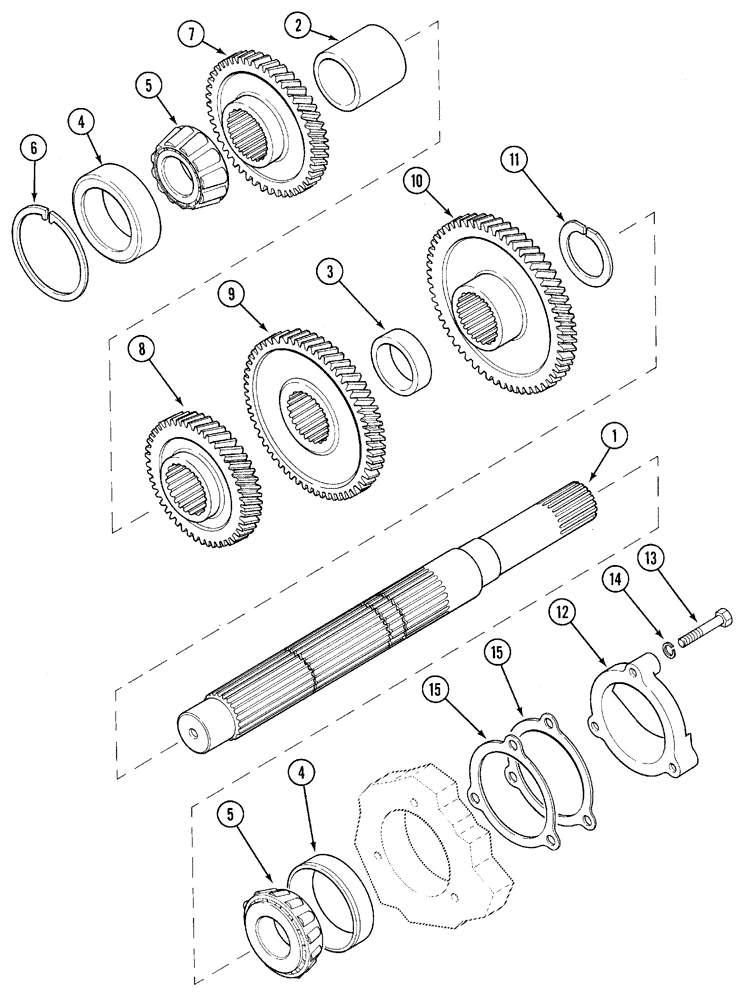

Запчасти Case IH 5230 (6-006) - TRANSMISSION, SPEED GEARS, INPUT SHAFT, SYNCHRO. SHIFT, 5130/5230 AND 5140/5240 ONLY (06) - POWER TRAIN

1

A183905

DRIVE SHAFT

SHAFT - input

1шт.

2

A175597

SPACER

- Input shaft, 1st and 2nd gears

1шт.

3

A186339

SPACER

- Input shaft, 3rd and 4th gears

1шт.

4

A175395

ROLLER BEARING,76.225 mm OD x 19.101 mm

- cup

2шт.

5

206214R91

CONE,36.49mm ID x 25.65mm W

BEARING - cone

2шт.

6

100-21300

SNAP RING,3.00", Int, #300

Ring, Snap, 3.00", Int, #300

1шт.

7

A183833

PINION

GEAR - drive, 2nd gear, 46T

1шт.

8

A183837

PINION

GEAR - drive, 1st gear, 48T

1шт.

9

A183841

PINION

GEAR - drive, 3rd gear, 61T

1шт.

10

A188697

PINION

GEAR - drive, 4th gear, 58T

1шт.

11

100-16175

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

1шт.

12

A183632

RETAINER

COVER - front bearing

1шт.

13

828-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

3шт.

14

892-11010

LOCK WASHER,M10

3шт.

15

A183645

SHIM,77.5mm ID x 94mm OD x 0.09mm Thk

1шт.

15

A183646

SHIM,77.5mm ID x 100mm OD x 0.14mm Thk

1шт.

15

A183647

SHIM,77.5mm ID x 100mm OD x 0.28mm Thk

1шт.

15

A183648

SHIM,77.5mm ID x 94mm OD x 0.69mm Thk

1шт.
