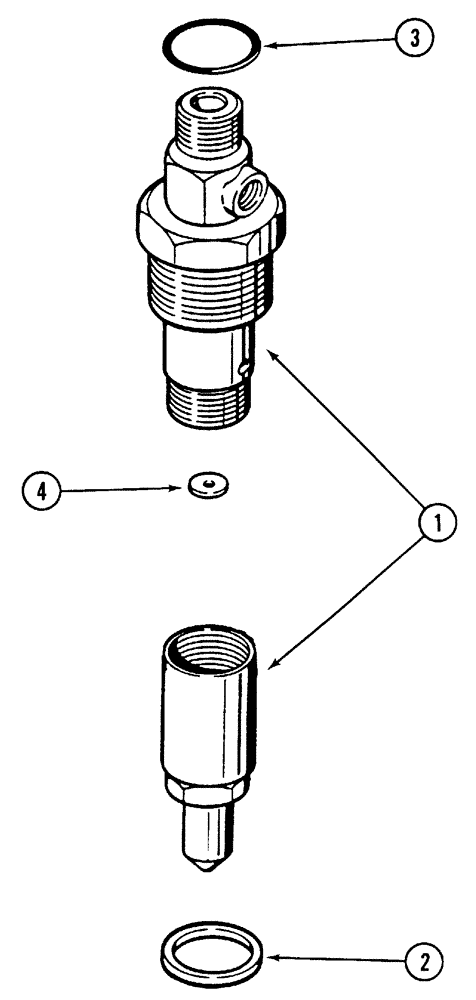

Запчасти Case IH 5220 (3-20) - FUEL INJECTION NOZZLE, 7 MM TIP, ENGINE NO. 52107490 AND AFTER, 4T-390 ENGINE (03) - FUEL SYSTEM

1

J919322

INJECTOR ASSY.

NOZZLE ASSEMBLY - fuel injection

4шт.

1

J919332

INJECTOR ASSY.

4шт.

1

JR919332

REMAN-FUEL INJECTOR

Remanufactured Injection Nozzle

4шт.

1

JC919332

CORE-FUEL INJECTOR

Return Part Number Injection Nozzle

4шт.

1

J919343

NOZZLE INJECTION

NOZZLE ASSEMBLY - fuel injection

4шт.

Whenever a nozzle is removed from the cylinder head, J906659 seal must be replaced.

1шт.

1

JR919343

REMAN-FUEL INJECTOR

Remanufactured injection nozzle

4шт.

1

JC919343

CORE-FUEL INJECTOR

Return Part Number, injection pump

4шт.

2

J906659

SEAL

- injector nozzle, 7 mm injector tip

4шт.

3

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

-, Serial Range: body-nut

4шт.

4

1806233C1

SHIM,1.00mm Thk

Nozzle 1.00mm Thk

1шт.

4

1806234C1

SHIM,1.04mm Thk

Nozzle 1.04mm Thk

1шт.

4

1806235C1

SHIM,1.08mm Thk

Nozzle 1.08mm Thk

1шт.

4

1806236C1

SHIM,1.10mm Thk

Nozzle 1.10mm Thk

1шт.

4

1806237C1

SHIM,1.14mm Thk

Nozzle 1.14mm Thk

1шт.

4

1806238C1

SHIM,1.18mm Thk

Nozzle 1.18mm Thk

1шт.

4

1806239C1

SHIM,1.20mm Thk

Nozzle 1.20mm Thk

1шт.

4

1806240C1

SHIM,1.24mm Thk

Nozzle 1.24mm Thk

1шт.

4

1806241C1

SHIM,1.28mm Thk

Nozzle 1.28mm Thk

1шт.

4

1806242C1

SHIM,1.30mm Thk

Nozzle 1.30mm Thk

1шт.

4

1806243C1

SHIM,1.34mm Thk

Nozzle 1.34mm Thk

1шт.

4

1806244C1

SHIM,1.38mm Thk

Nozzle 1.38mm Thk

1шт.

4

1806245C1

SHIM,1.40mm Thk

Nozzle 1.40mm Thk

1шт.

4

1806246C1

SHIM,1.44mm Thk

Nozzle 1.44mm Thk

1шт.

4

1806247C1

SHIM,1.48mm Thk

Nozzle 1.48mm Thk

1шт.

4

1806248C1

SHIM,1.50mm Thk

Nozzle 1.50mm Thk

1шт.

4

1806249C1

SHIM,1.54mm Thk

Nozzle 1.54mm Thk

1шт.

4

1806250C1

SHIM,1.58mm Thk

Nozzle 1.58mm Thk

1шт.

4

1806251C1

SHIM,1.60mm Thk

Nozzle 1.60mm Thk

1шт.

4

1806252C1

SHIM,1.64mm Thk

Nozzle 1.64mm Thk

1шт.

4

1806253C1

SHIM,1.68mm Thk

Nozzle 1.68mm Thk

1шт.

4

1806254C1

SHIM,1.70mm Thk

Nozzle 1.70mm Thk

1шт.

4

1806255C1

SHIM,1.74mm Thk

Nozzle 1.74mm Thk

1шт.

4

1806256C1

SHIM,1.78mm Thk

Nozzle 1.78mm Thk

1шт.

4

1806257C1

SHIM,1.80mm Thk

Nozzle 1.80mm Thk

1шт.

4

1806258C1

SHIM,1.84mm Thk

Nozzle 1.84mm Thk

1шт.

4

1806259C1

SHIM,1.88mm Thk

Nozzle 1.88mm Thk

1шт.

4

1806260C1

SHIM,1.90mm Thk

Nozzle 1.90mm Thk

1шт.

4

1806261C1

SHIM,1.94mm Thk

Nozzle 1.94mm Thk

1шт.

4

1806262C1

SHIM,1.98mm Thk

Nozzle 1.98mm Thk

1шт.
