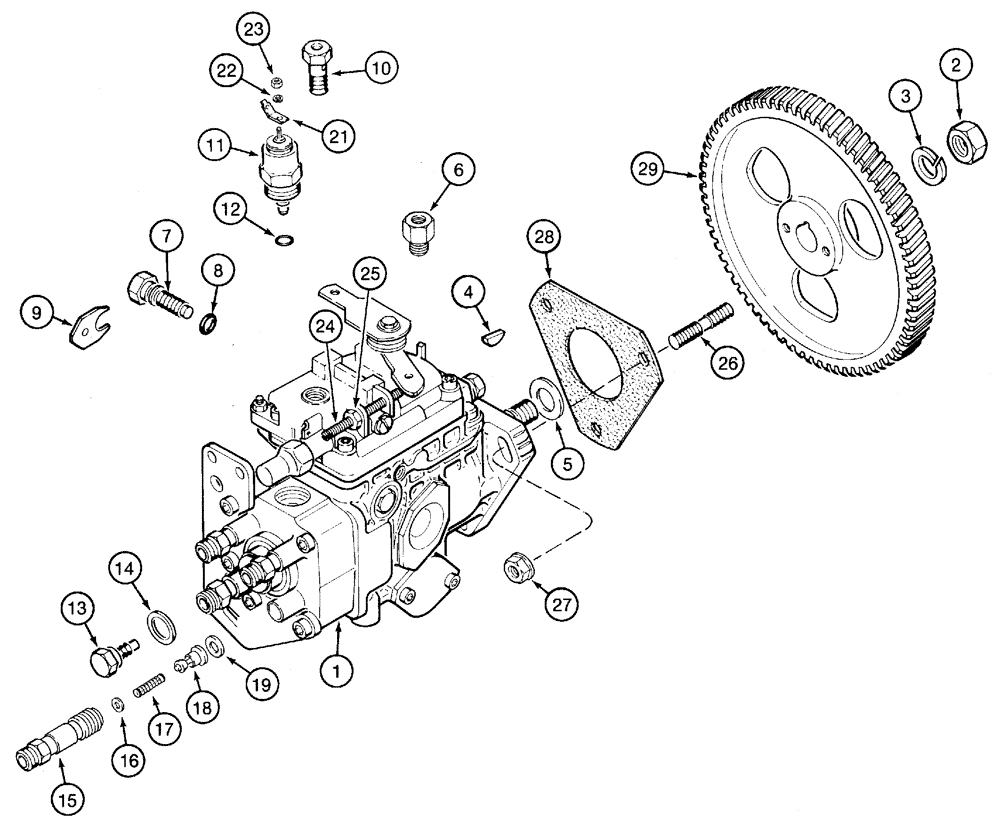

Запчасти Case IH 5220 (3-14) - FUEL INJECTION PUMP AND DRIVE, 4T / 4TA-390 ENGINE (03) - FUEL SYSTEM

1

J917934

PUMP, FUEL INJECTION

PUMP fuel injection, new, Includes: Ref. 2 - 25

1шт.

JR917934

REMAN-ENG OIL PUMP

Remanufactured INJECTION PUMP - N.A. Only

1шт.

JC917934

CORE-ENGINE OIL PUMP

Return No, INJECTION PUMP - N.A. Only

1шт.

1

JC917500

PUMP, FUEL INJECTION

RETURN NUMBER use this part number to return pump core for credit when using a remanufactured assy.

1шт.

2

J903738

NUT

hex, special, 14 mm - 2.0

1шт.

3

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

1шт.

4

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

1шт.

5

J920393

SEAL

shaft

1шт.

6

J903382

ADAPTER,M12 x 1.5 x M14 x 1.5

ADAPTER tube

1шт.

7

J904784

SCREW,Hex Skt, M10 x 1 x 35mm

timing lock

1шт.

8

J904785

O-RING,8 mm ID x 2.5 mm

timing lock screw

1шт.

9

J904786

PLATE

timing lock

1шт.

10

J905465

BANJO BOLT

BOLT banjo, overflow

1шт.

11

A77753

SOLENOID

SOLENOID ASSY. shut down, 12 volt

1шт.

12

J903577

SEAL

solenoid

1шт.

13

J903572

BLEED SCREW,M8 x 1 x 23.10mm

SCREW vent

1шт.

14

3053133R1

SEALING RING,M8 x 11.5 x 1

RING gasket, vent screw

1шт.

15

J910794

FITTING

bypass delivery valve

4шт.

16

3059066R1

WASHER,2.5mm ID x 7.3mm OD x 1.5mm Thk

special

4шт.

17

J910796

SPRING

delivery valve

4шт.

18

J910795

BY-PASS VALVE

VALVE bypass delivery

4шт.

19

J903570

GASKET,5.4mm ID x 12mm OD x 1mm Thk

delivery valve

4шт.

21

A187990

TERMINAL CONNECTOR,Tin, 0.254 - 1.520mm

TERMINAL Male

1шт.

22

J907481

WASHER

lock, special

1шт.

23

J907480

NUT

special

1шт.

24

J904782

SET SCREW,Sl, M6 x 40mm, Half Dog Pt

SCREW low idle stop

1шт.

25

J904783

NUT

low idle screw

1шт.

26

J902501

STUD

pump mounting, 8 - 1.25 x 48 mm

3шт.

27

J900589

NUT

hex flange, special, 8 mm

3шт.

28

J931607

GASKET

pump mounting

1шт.

29

J920594

PINION

GEAR pump drive

1шт.
