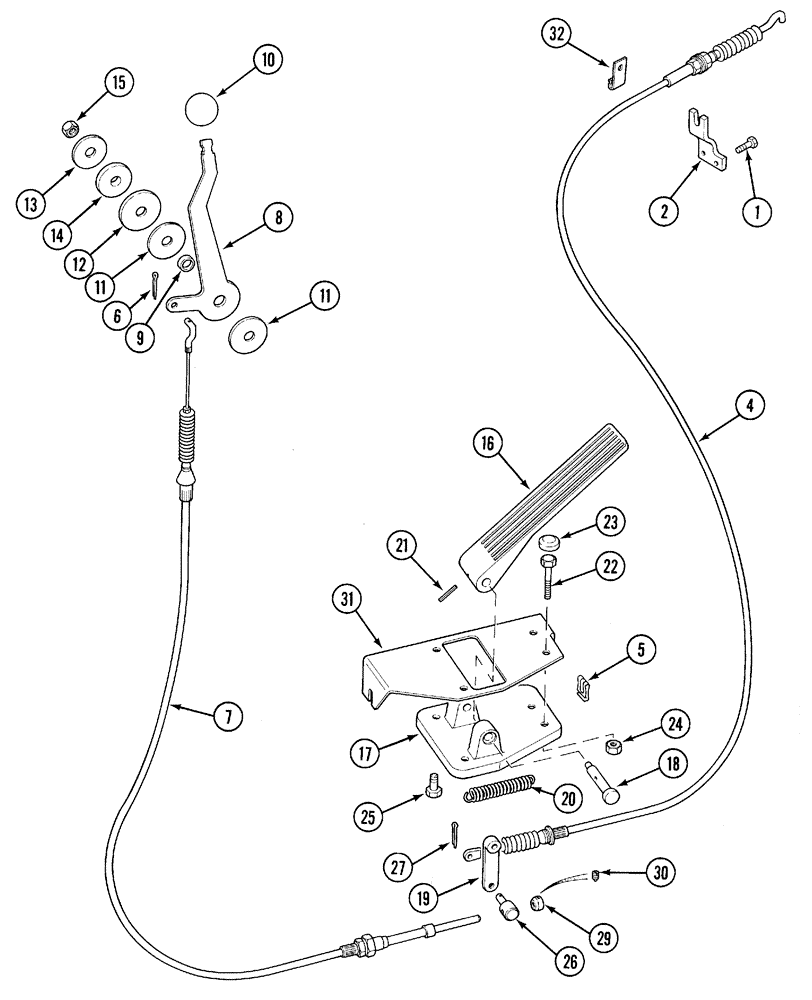

Запчасти Case IH 5220 (3-08) - THROTTLE, HAND LEVER AND FOOT PEDAL (03) - FUEL SYSTEM

1

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

2

1531318C1

SUPPORT

cable

1шт.

4

1531317C2

CABLE

throttle control

1шт.

5

T101807

CLIP

safety

1шт.

6

T102862

PIN

split

2шт.

7

1531668C2

CABLE

hand throttle

1шт.

8

1340018C2

CONTROL LEVER

LEVER hand throttle

1шт.

9

T101396

RING

BUSHING

1шт.

10

1958759C1

KNOB

throttle

1шт.

11

1531493C1

FRICTION WASHER

WASHER brake

2шт.

12

T101397

WASHER

1шт.

13

T101398

WASHER,8.5mm ID x 40mm OD x 3mm Thk

1шт.

14

T101407

WASHER

rubber

1шт.

15

832-10408

NUT,M8 x 1.25, Cl 8.8

NUT, M8 x 1.25, Cl 8

1шт.

16

1974767C3

PEDAL

throttle

1шт.

17

1974768C1

PIVOT

foot throttle

1шт.

18

1974769C3

SHAFT

foot throttle

1шт.

19

1974770C2

LEVER

foot pedal

1шт.

20

1974771C1

SPRING

throttle

1шт.

21

30873R1

PIN,M4 x 26, Coiled

spring, 4 mm x 26 mm

1шт.

22

614-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8, Full Thd

hex, full threads, 8 - 1.25 x 70 mm

1шт.

23

1981770C1

STOP

foot throttle

1шт.

24

825-1408

NUT,M8, Cl 8

1шт.

25

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

hex, full threads, 8 - 1.25 x 16 mm

3шт.

26

1958798C1

TRUNNION

foot throttle

1шт.

27

733-2012

COTTER PIN,M2 x 12

PIN, SPLIT (COTTER), M2 x 12

1шт.

29

1531662C1

CLAMP

foot throttle

1шт.

30

877-2045

SET SCREW,M4 x 5mm

SCREW set hex socket, cone point, 4 - 0.7 x 5 mm

1шт.

31

1975840C3

BRACKET

cable

1шт.

32

1531314C1

CLAMP

CLIP cable

1шт.
