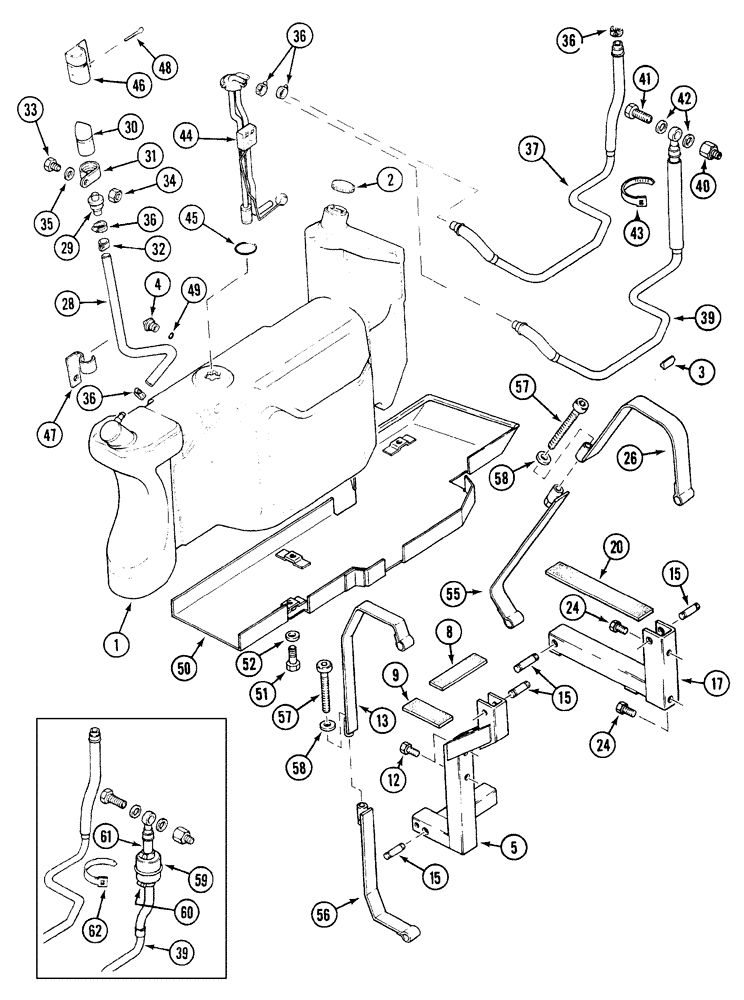

Запчасти Case IH 5220 (3-02) - FUEL TANK AND LINES (03) - FUEL SYSTEM

1

1530621C2

FUEL TANK

TANK fuel, rear filling, 170 liter, should measure 22.79" tall

1шт.

1

1530622C2

FUEL TANK

TANK fuel, rear filling, 135 liter, should measure 19.64" tall

1шт.

2

1531353C2

FILLER CAP

CAP fuel

1шт.

3

T104543

WEDGE

hose support

4шт.

4

T104544

PLUG

drain

1шт.

5

1533479C1

SUPPORT ASSY.

BRACKET rear, fuel tank, 170 liter, Serial Range: -JJF1017041

1шт.

5

1534442C1

SUPPORT ASSY.

BRACKET rear, fuel tank, 170 liter, Start Serial: JJF1017042

1шт.

5

1533480C1

SUPPORT ASSY.

BRACKET rear, fuel tank, 135 liter, Serial Range: -JJF1017041

1шт.

5

1534443C1

SUPPORT ASSY.

BRACKET rear, fuel tank, 135 liter, Start Serial: JJF1017042

1шт.

8

1533511C1

FELT STRIP

STRIP fuel tank

1шт.

9

1533521C1

FELT STRIP

STRIP fuel tank, replaces: 1533321C1

1шт.

12

614-16030

BOLT,Hex, M16 x 2 x 30mm, Cl 8.8, Full Thd

2шт.

13

1533498C1

STRAP

rear, fuel tank, 135/170 liter, Serial Range: -JJF1017041

1шт.

Notes on P/N T103038, single tank strap no longer available. Order 1 ea. of the following P/N 1533498C1 strap, 1533510C1 strap, 1533511C1 strip, T104414 strip 1533480C1 strip and 2 pcs. 1533503C1 pin, 1 pc. 825-1408 nut and 2 - 905953R1 washer. Tie the straps together

1шт.

13

1534517C1

STRAP

rear, fuel tank, 135/170 liter, Start Serial: JJF1017042

1шт.

15

1533503C1

PIN

strap retaining

4шт.

17

1533481C1

SUPPORT ASSY.

BRACKET front, fuel tank, 170 liter, Serial Range: -JJF1017041

1шт.

17

1534444C1

SUPPORT ASSY.

BRACKET front, fuel tank, 170 liter, Start Serial: JJF1017042

1шт.

17

1533482C1

SUPPORT ASSY.

BRACKET front, fuel tank, 135 liter, Serial Range: -JJF1017041

1шт.

17

1534445C1

SUPPORT ASSY.

BRACKET front, fuel tank, 135 liter, Start Serial: JJF1017042

1шт.

20

1533520C1

FELT STRIP

STRIP fuel tank

1шт.

24

614-16030

BOLT,Hex, M16 x 2 x 30mm, Cl 8.8, Full Thd

2шт.

24

614-16030

BOLT,Hex, M16 x 2 x 30mm, Cl 8.8, Full Thd

1шт.

26

1533504C1

STRAP

front, fuel tank, 135/170 liter, Serial Range: -JJF1017041

1шт.

26

1534754C1

STRAP

front, fuel tank, 135/170 liter, Start Serial: JJF1017042

1шт.

28

1531425C1

HOSE

breather, tractors with cab

1шт.

28

1531071C1

TUBE

HOSE breather, tractors without cab

1шт.

29

T103750

BREATHER

VALVE breather

1шт.

30

T103777

TUBE

PIPE tractors without cab

1шт.

31

T103793

PIPE CLAMP

CLAMP tractors without cab

1шт.

32

T103545

CLAMP

tractors without cab

2шт.

33

514-504

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

hex, 6 x 16 mm, class 8.8

3шт.

34

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

3шт.

35

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

36

3401580R1

CLAMP,M8-12, Worm

hose, worm drive

5шт.

37

1530820C3

HOSE ASSY.

HOSE fuel return

1шт.

39

1530842C4

HOSE ASSY.

HOSE fuel feed, with fuel filter, has a banjo fitting

1шт.

39

130913A3

HOSE ASSY.

HOSE fuel feed, external fuel filter, does not have a banjo fitting

1шт.

40

T101598

PORT

ADAPTER feed pump

1шт.

41

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

SCREW hollow

1шт.

42

933610R1

SEALING RING,M14 x 18 x 1.8

2шт.

43

3148767R2

COLLAR CLAMP

STRAP cable

3шт.

44

1533805C1

FUEL GAUGE

SENDER fuel tank, 170 liter, 611 mm (24 in) Long, With Filter Screen, Serial Range: -JJF1050110

1шт.

44

130915A1

SENDER UNIT

SENDER fuel tank, 170 liter, 606 mm (23-7/8 in) Long, Without Filter Screen, Start Serial: JJF1050111

1шт.

44

1533806C1

FUEL GAUGE

SENDER fuel tank, 135 liter, 531 mm (21 in) Long, With Filter Screen, Serial Range: -JJF1050110

1шт.

44

239711A1

SENDER UNIT

SENDER fuel tank, 135 liter, 526 mm (20-3/4 in) Long, Without Filter Screen, Start Serial: JJF1050111

1шт.

45

3229809R1

O-RING

sender

1шт.

46

1531445C1

CASE

HOUSING vent, tractors with cab

1шт.

47

1531498C1

CLAMP

tractors with cab

1шт.

48

905952R1

COTTER PIN,M3.2 x 50

PIN cotter, tractors with cab

1шт.

49

1531953C1

RUBBER WASHER

rubber

1шт.

50

1533506C1

PROTECTOR

SHEILD protection

1шт.

51

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

3шт.

51

614-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd

1шт.

52

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

55

1533497C1

STRAP

front, fuel tank, 170 liter, Serial Range: -JJF1017041

1шт.

55

1534516C1

STRAP

front, fuel tank, 170 liter, Start Serial: JJF1017042

1шт.

55

1533509C2

STRAP

front, fuel tank, 135 liter, Serial Range: -JJF1017041

1шт.

55

1534520C1

STRAP

front, fuel tank, 135 liter, Start Serial: JJF1017042

1шт.

56

1533499C1

STRAP

rear, fuel tank, 170 liter, Serial Range: -JJF1017041

1шт.

56

1534518C1

STRAP

rear, fuel tank, 170 liter, Start Serial: JJF1017042

1шт.

56

1533510C1

STRAP

rear, fuel tank, 135 liter, Serial Range: -JJF1017041

1шт.

Notes on P/N T103038, single tank strap no longer available. Order 1 ea. of the following P/N 1533498C1 strap, 1533510C1 strap, 1533511C1 strip, T104414 strip 1533480C1 strip and 2 pcs. 1533503C1 pin, 1 pc. 825-1408 nut and 2 - 905953R1 washer. Tie the straps together

1шт.

56

1534521C1

STRAP

rear, fuel tank, 135 liter, Start Serial: JJF1017042

1шт.

57

1534527C1

HEX SOC SCREW,M8 x 100mm, Cl 8.8

8 mm x 100 mm

2шт.

58

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 16 x 1.6 mm

2шт.

59

D139225

FILTER, FUEL

FILTER fuel, in-line

1шт.

60

3125239R1

COLLAR

CLAMP hose

2шт.

61

130914A3

HOSE ASSY.,9.53mm ID x 75mm L, SAE 30R7

HOSE fuel supply

1шт.

62

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15", nylon

1шт.
