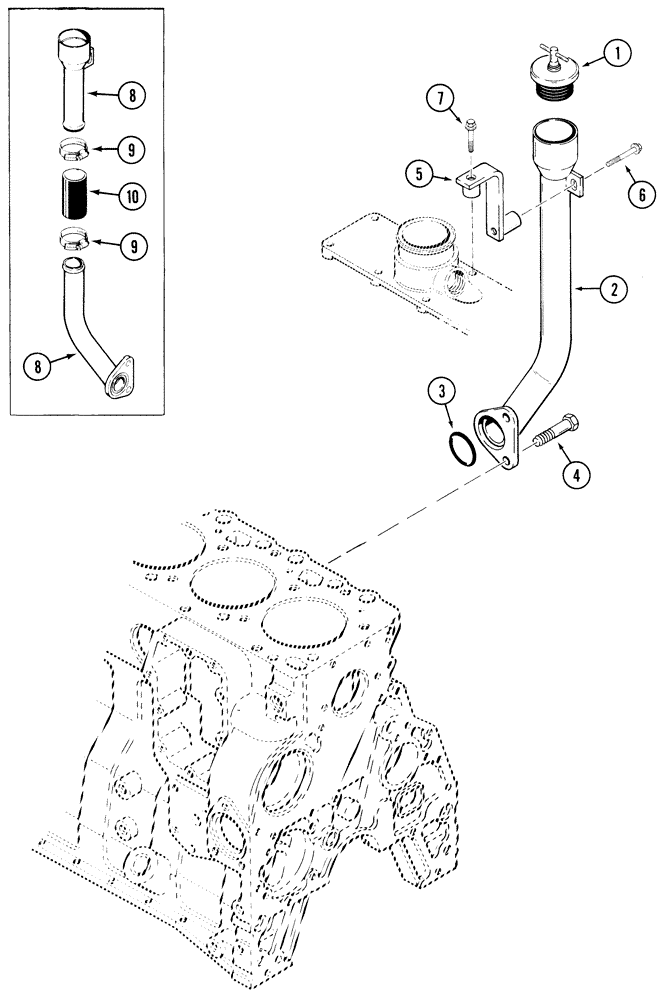

Запчасти Case IH 5220 (2-52) - ENGINE OIL FILLER (02) - ENGINE

1

A77424

FILLER CAP

CAP oil fill tube

1шт.

2

J915843

TUBE,38.1 mm OD x 236.5, 120 mm L

oil filler

1шт.

3

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING sealing, 38 mm ID

1шт.

4

613-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

5

J915862

BRACKET

BRACE oil fill tube

1шт.

6

845-8045

BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 45 mm, 8.8

1шт.

7

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 16 mm

1шт.

8

J916727

TUBE,38.1 mm OD x 193 mm L

oil fill extension

1шт.

8

A190736

TUBE

oil fill extension, one piece

1шт.

9

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

CLAMP, HOSE, , Adjustable, Open #28, 1.31/2.25 Type F Worm

2шт.

10

J912686

HOSE,38.1mm ID x 84mm L

1шт.
