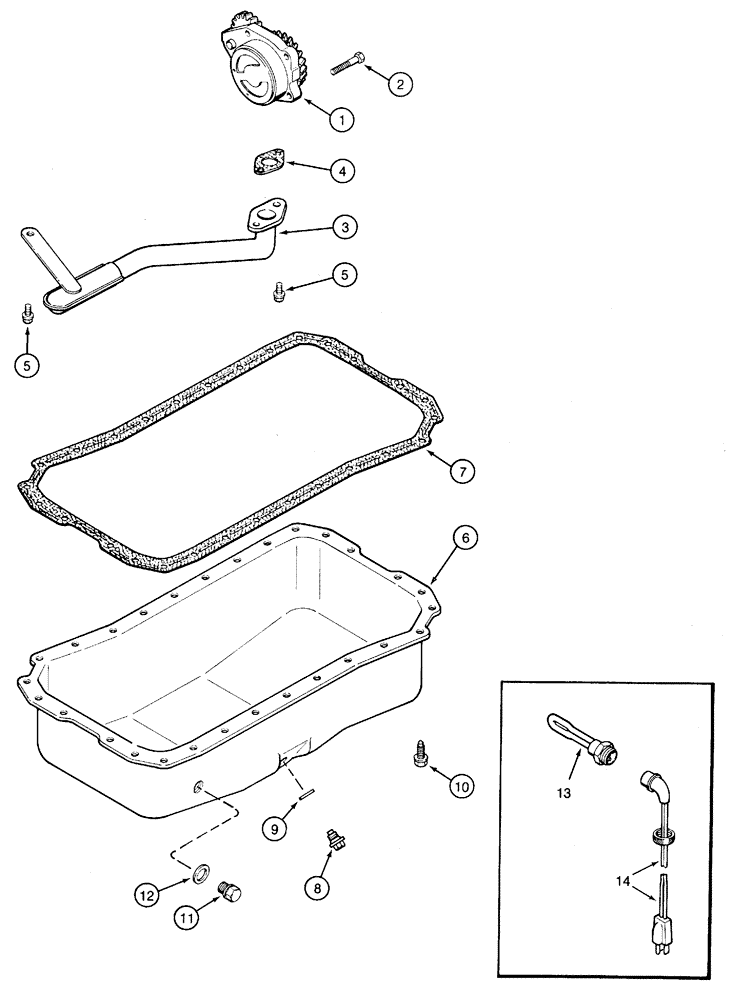

Запчасти Case IH 5220 (2-40) - OIL PUMP AND OIL PAN, 4T-390 ENGINE, 4TA-390 ENGINE (02) - ENGINE

1

J930336

PUMP, ENGINE OIL

PUMP oil, lubrication

1шт.

JR930336

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

JC926202

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

JR937027

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

JC937027

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

2

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

BOLT - HH, CL 8.8, M8 x 1.25 x 30, Full Thd

4шт.

3

J916790

TUBE,287, 198.5 mm L

TUBE oil suction

1шт.

4

J914383

GASKET

GASKET mounting, oil suction tube

1шт.

Part of oil pan gasket kit P/N A77673

1шт.

5

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT - heavy hex flange, 8 - 1.25 x 16 mm

3шт.

6

J907570

PAN

PAN oil

1шт.

7

NSS

NOT SOLD SEPARAT

GASKET oil pan, Order: A77673 kit

1шт.

Part of oil pan gasket kit P/N A77673

1шт.

8

J924147

PLUG,M18 x 1.5

PLUG hex magnetic, special, 18 mm - 1.5

1шт.

9

J920773

SEALING WASHER

WASHER sealing, drain plug

1шт.

Part of oil pan gasket kit P/N A77673

1шт.

10

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

SCREW - hex flange cap, special, M8 x 25

28шт.

11

J924148

PLUG,M22 x 1.5

PLUG hex magnetic, special, 22 mm - 1.5

1шт.

12

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER sealing, plug

1шт.

A77673

GASKET KIT

KIT gasket, oil pan Includes: Ref. 4, 7 and 9

1шт.

A77490

KIT

KIT heater, engine oil, Order: also item 12, J902425

1шт.

13

NSS

NOT SOLD SEPARAT

HEATER engine oil

1шт.

14

J905113

CABLE

CABLE engine block heater, 6 feet long, oil

1шт.
