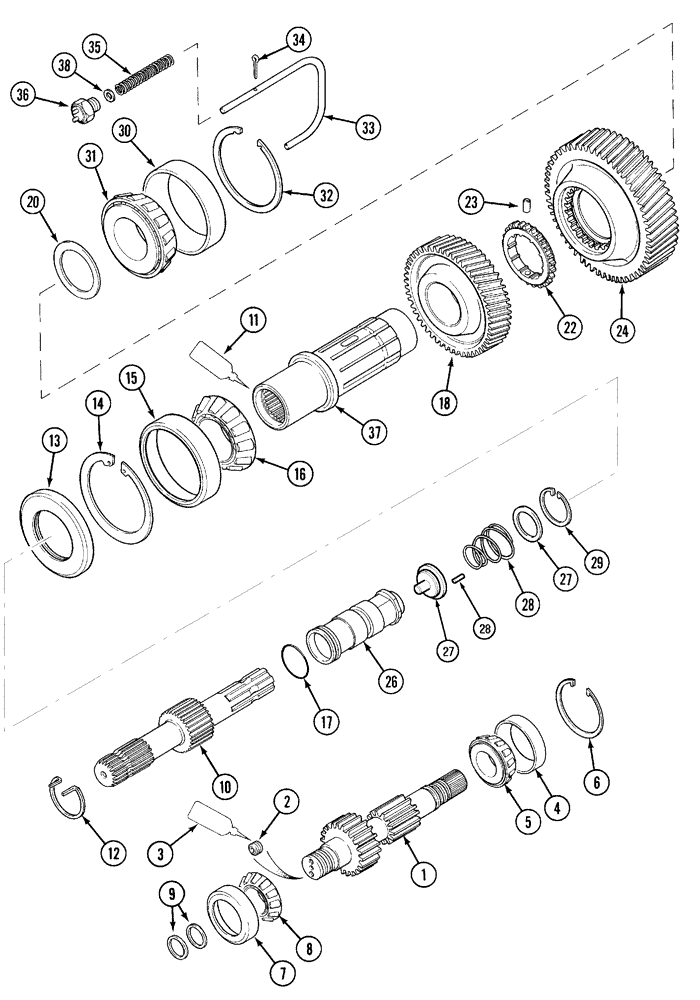

Запчасти Case IH 5220 (6-082) - PTO, REVERSIBLE 540/1000 RPM (06) - POWER TRAIN

1

111181A1

SHAFT ASSY.

SHAFT - input, 14T/22T, Includes: Ref. 2, Start Serial: JJF1023130

1шт.

2

83-3314

SET SCREW,Hex Soc, 5/16"-18 x 1/4"

2шт.

1

1341276C3

SHAFT ASSY.

SHAFT - input, 14T/22T, Includes: Ref. 2 and 3, Serial Range: -JJF1023129

1шт.

2

83-3314

SET SCREW,Hex Soc, 5/16"-18 x 1/4"

2шт.

3

B17197

LOCTITE

- 635, reatining compound, 50 ml

1шт.

1995378C1

BEARING ASSY,23.9135 mm

BEARING - assembly, Includes: Ref. 4 and 5, Start Serial: JJF1023130

1шт.

4

NSS

NOT SOLD SEPARAT

BEARING - cup

1шт.

5

NSS

NOT SOLD SEPARAT

BEARING - cone

1шт.

4

50213V

BEARING CUP

CUP - tapered roller bearing, 2-3/4 inch OD

1шт.

5

50212VA

ROLLER BEARING,33.35mm ID x 24.01mm W

BEARING - tapered roller, 1-5/16 inch ID

1шт.

6

100-21275

SNAP RING,2.75", Int, #275

Ring, Snap, 2.75", Int, #275

1шт.

6

1345614C1

SPECIAL RING

RING - snap, 2.30 mm thick

1шт.

6

1345615C1

SPECIAL RING

RING - snap, 2.20 mm thick

1шт.

6

1345616C1

SPECIAL RING

RING - snap, 2.10 mm thick

1шт.

6

1345617C1

SNAP RING

RING - snap, 2.00 mm thick

1шт.

1995377C1

BEARING ASSY,22.3265 mm

BEARING - assembly, Includes: Ref. 7 and 8, Start Serial: JJF1023130

1шт.

7

NSS

NOT SOLD SEPARAT

BEARING - cup

1шт.

8

NSS

NOT SOLD SEPARAT

BEARING - cone

1шт.

7

671033R1

BEARING, CUP

CUP - bearing, Serial Range: -JJF1023129

1шт.

8

671032R1

TAPERED BEARING,33.34mm ID x 22.33mm W

CONE - bearing, Serial Range: -JJF1023129

1шт.

9

A188295

SEALING RING,28.48mm ID x 31.8mm OD x 2.38mm Thk

RING - sealing

2шт.

10

226824A2

SHAFT

- PTO output

1шт.

11

331-58

LUBRICANT

GREASE - #2 Moly Disulfide, 1 oz

1шт.

12

1341137C1

CIRCLIP

RING - snap

1шт.

13

A175136

OIL SEAL,66.63mm ID x 111.2mm OD x 11.38mm Thk

- output shaft

1шт.

14

R32220

SNAP RING,4.331", Int, #433

Ring, Snap, 4.331", Int, #433

1шт.

15

29214H

BEARING CUP,110mm OD x 18.82mm W

CUP - tapered roller bearing, 4-5/16 inch OD

1шт.

16

102161H

BEARING ASSY,68.262mm ID x 21.996mm

BEARING - cone

1шт.

17

238-5130

O-RING,0.103" Thk x 1.612" ID, -130, Cl 5, 75 Duro

1шт.

18

1341171C4

PINION

GEAR - assembly, driven, 52 teeth

1шт.

19

95-81129

WASHER,1 9/32" x 1 3/4" x .060"

- flat, 1-9/32 x 1-3/4 x 1/16 inch

1шт.

20

1341177C1

THRUST WASHER

WASHER - thrust

1шт.

21

1341178C1

SPRING

- conical

1шт.

22

1341176C1

TRANSMISSION SLEEVE

COLLAR - shift

1шт.

23

137710A1

DOWEL,8mm OD x 18.54mm L

PIN - PTO shift collar

2шт.

24

1341172C4

PINION

GEAR - asembly, driven, 60T

1шт.

26

111696A4

SLEEVE

- support, Includes: Ref. 27 and 28

1шт.

27

95-81129

WASHER,1 9/32" x 1 3/4" x .060"

PLUG - PTO shifter

1шт.

28

838-5210

LOCK PIN,M2 x 10, Slotted

PIN - roll, 2 x 10 mm

1шт.

Ref # 28 pointing to spring is P/N 1341178C1

1шт.

29

100-21181

SNAP RING,1.812", Int, #181

Ring, Snap, 1.812", Int, #181

1шт.

30

1995387C1

BEARING ASSY,21.1015 mm

BEARING - assembly, Start Serial: JJF1023130

1шт.

30

659459R1

BEARING, CUP

BEARING - cup, Serial Range: -JJF1023129

1шт.

31

158359C91

ROLLER BEARING,57.15mm ID x 21mm W

BEARING - cone, Serial Range: -JJF1023129

1шт.

32

A152252

RING

- snap, 2.08 mm thick

1шт.

32

1345620C1

CIRCLIP

RING - snap, 2.70 mm thick

1шт.

32

1345621C1

SNAP RING

RING - snap, 2.60 mm thick

1шт.

32

1345622C1

SNAP RING

RING - snap, 2.50 mm thick

1шт.

32

1345623C1

SNAP RING

RING - snap, 2.40 mm thick

1шт.

33

1345683C1

THREADED ROD

ROD - speed sensing

1шт.

34

432-610

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), 3/32" x 5/8"

1шт.

35

A178674

SPRING

- sensing rod

1шт.

36

A160237

SWITCH

- PTO speed select

1шт.

37

1341234C1

SPLINED COUPLING

SLEEVE - dual PTO shaft

1шт.

38

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 16 x 1.6 mm

1шт.
