Запчасти Case IH 5220 (6-034) - TRANSMISSION, REAR AXLE HOUSING AND CARRIERS (06) - POWER TRAIN

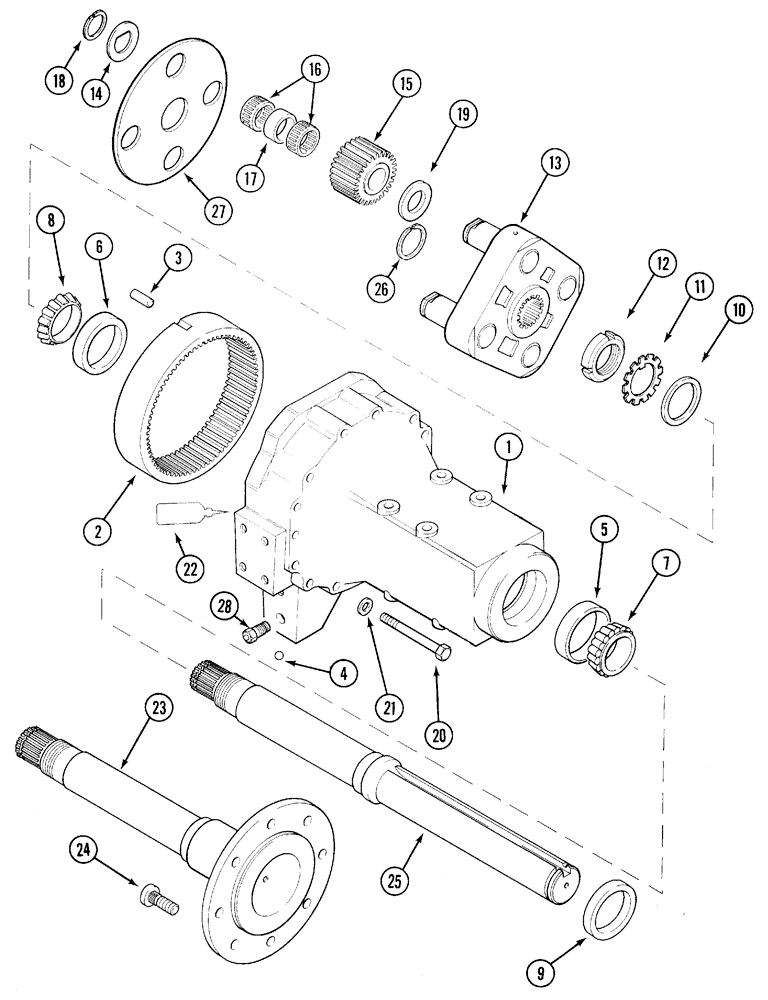

Схема запчастей Case IH 5220 - (6-034) - TRANSMISSION, REAR AXLE HOUSING AND CARRIERS (06) - POWER TRAIN
19
7
10
20
2
11
24
6
3
12
15
13
28
8
26
5
25
18
17
16
9
4
27
22
21
1
23
14

Артикул

Название

Примечание

Количество

1

1345971C1

AXLE CARRIER

HOUSING - assy, right, W/gear, 4 holes on lower surface

1шт.

1

1341194C1

AXLE CARRIER

HOUSING - assy, right, W/gear, 6 holes

1шт.

1

1345972C1

AXLE CARRIER

HOUSING - assembly, left, W/gear, 4 holes on lower surface

1шт.

1

1341195C1

AXLE CARRIER

HOUSING - assembly, left, W/gear, 6 holes, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

GEAR - planetary ring, 80 teeth

1шт.

3

NSS

NOT SOLD SEPARAT

PIN - gear reaction

3шт.

4

NSS

NOT SOLD SEPARAT

PLUG - expansion

1шт.

5

ST897

BEARING CUP,122.24mm OD x 29.72mm W

BEARING - cup, outer

1шт.

6

ST897

BEARING CUP,122.24mm OD x 29.72mm W

BEARING - cup, outer

1шт.

7

64373H

ROLLER BEARING,82.56mm ID x 30.26mm W

- cone, outer

2шт.

8

89361H

TAPERED BEARING,80.97mm ID x 29.68mm W

BEARING - cone, inner

2шт.

9

A188117

OIL SEAL,91.99mm ID x 136.78mm OD x 17.55mm Thk

SEAL - axke shaft

2шт.

10

A183139

WASHER, THRUST

WASHER - thrust

2шт.

11

55-2016

LOCK WASHER,Type TW-116

WASHER - lock

2шт.

12

54-2016

BEARING LOCK NUT,Bearing, 3.1496" Bore

NUT - bearing adjusting

2шт.

13

123267A1

PINION CARRIER

CARRIER - assembly, gears, Start Serial: JJF1030000

2шт.

13

A190065

PINION CARRIER

CARRIER - assembly, gears, Serial Range: -JJF1029999

2шт.

14

A188449

WASHER, THRUST

WASHER - D shaped ID

8шт.

15

A188434

GEAR, PLANETARY

GEAR - planetary, 30T

8шт.

16

A183104

NEEDLE ROLLER,Needle, 6.35mm OD x 25.15mm L

BEARING - needle roller, 56 per gear

448шт.

17

A188445

SEPARATOR

- needle roller

8шт.

18

100-16193

SNAP RING,#193, Ext

Ring, Snap, #193, Ext, Serial Range: -JKA96205

8шт.

18

100-16200

SNAP RING,#200, Ext

Ring, Snap, #200, Ext, Start Serial: JKA96206

8шт.

19

A186999

WASHER, THRUST

WASHER - thrust, Serial Range: -JKA96205

8шт.

20

828-16150

BOLT,Hex, M16 x 2 x 150mm, Cl 10.9

24шт.

21

96-31066

WASHER,0.66" ID x 1.31" OD x 0.19" Thk

24шт.

22

B17501

LOCTITE

SEALANT - Gasket Eliminator No. 515, 6 ml tube (Orange)

5шт.

23

1341256C4

SHAFT ASSY.

SHAFT - assembly, flanged, Includes: Ref. 24

2шт.

24

192708A1

STUD

- wheel hub, ribbed neck, 20 mm

8шт.

25

1341253C3

SHAFT

- axle, plain with keyway

2шт.

26

101-11287

SNAP RING,#287, 2.713, Ext

RING - snap, No. 287

2шт.

27

A188448

SHIELD

- planet gear

2шт.

28

1335813C3

VALVE

SENSOR - draft sensing

1шт.

Выбрано товаров: 33
