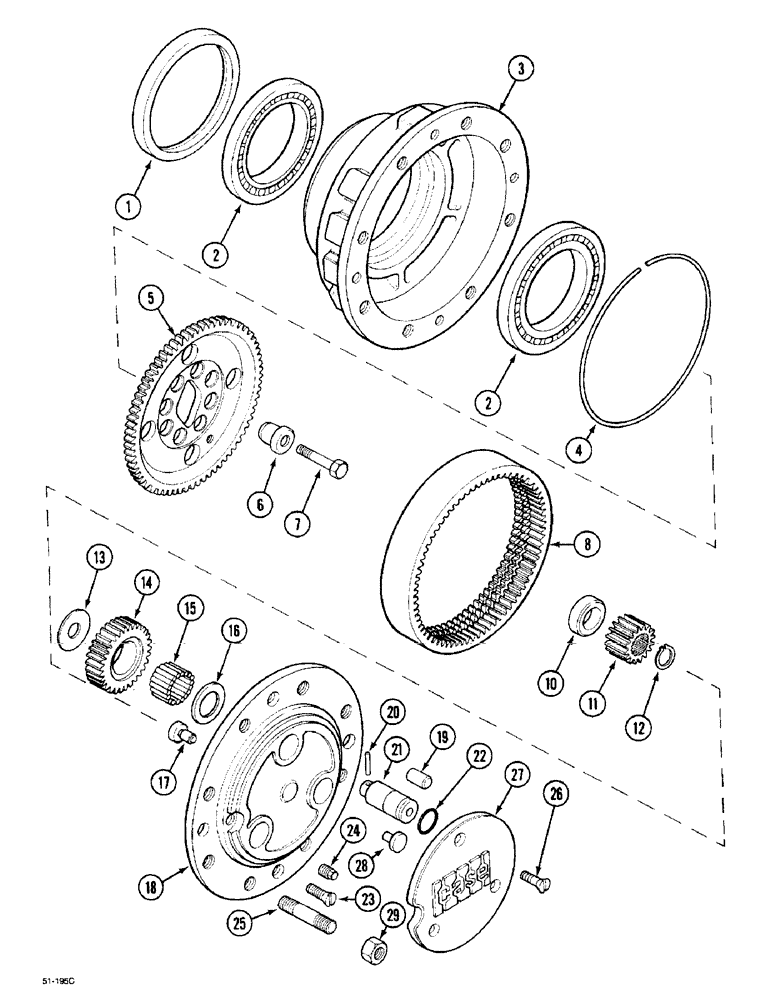

Запчасти Case IH 5150 (5-62) - HUB PLANETARY DRIVE, MFD, 709 S2 / 709 S4 / 709 S4P (05) - STEERING

1

1349265C1

OIL SEAL,149mm ID x 176mm OD x 16mm Thk

oil, 149 x 176 x 16

2шт.

2

K395101

TAPERED BEARING,109.5mm ID x 126mm x 21.4mm L

ball

4шт.

3

K395123

HUB

2шт.

4

H437679

RING, SNAP

RING SNAP lock

2шт.

5

H437678

RING, FLYWHEEL

CARRIER

2шт.

6

107071A1

BUSHING

20 mm OD

10шт.

6

107072A1

CENTERING RING

BUSHING, 24 mm OD

2шт.

7

K395131

BOLT,Hex, M14 x 1.5 x 65mm, Cl 10.9

12шт.

8

H437677

GEAR, RING

RING, GEAR

2шт.

10

107073A1

WASHER,30mm ID x 49mm OD x 15mm H

SPACER

2шт.

11

K395114

GEAR

sun

2шт.

12

K261897

RING, SNAP

RING SNAP CLIP

2шт.

13

N13512

WASHER,23mm ID x 55mm OD x 1.5mm Thk

6шт.

14

N13513

GEAR,29 T

6шт.

15

119686A1

10 NEEDLE BRG KIT

180шт.

16

K395091

THRUST WASHER

6шт.

17

K395093

HEADED PIN,12mm OD x 15mm L

2шт.

18

81888C1

COVER

2шт.

19

K395094

DOWEL,M18 x 36

4шт.

20

110677A1

SPLIT PIN/SAFETY PIN

6шт.

21

N13517

PIN,34.4mm OD x 80mm L

SHAFT

6шт.

22

238-5216

O-RING,0.139" Thk x 1.109" ID, -216, Cl 5, 75 Duro

6шт.

23

K395029

SCREW

4шт.

24

A156873

PLUG, DRAIN,M22 x 1.5

2шт.

25

1349196C1

STUD

12шт.

25

1349195C1

STUD

63123 With Collar

4шт.

26

905876R1

HEX SOC SCREW,Flat Hd, CSK, M8 x 20mm, Cl 10.9

6шт.

27

K395135

COVER

63123 If So Equipped

2шт.

28

112624A1

PLASTIC PLUG

6шт.

29

98783C1

WHEEL NUT,Wheel, Flg, M20 x 1.5

12шт.
