(5-54) - DIFFERENTIAL, (5130/5140/5150), MFD, 709 S4 BALL TYPE

Запчасти Case IH 5150 (5-54) - DIFFERENTIAL, (5130/5140/5150), MFD, 709 S4 BALL TYPE (05) - STEERING

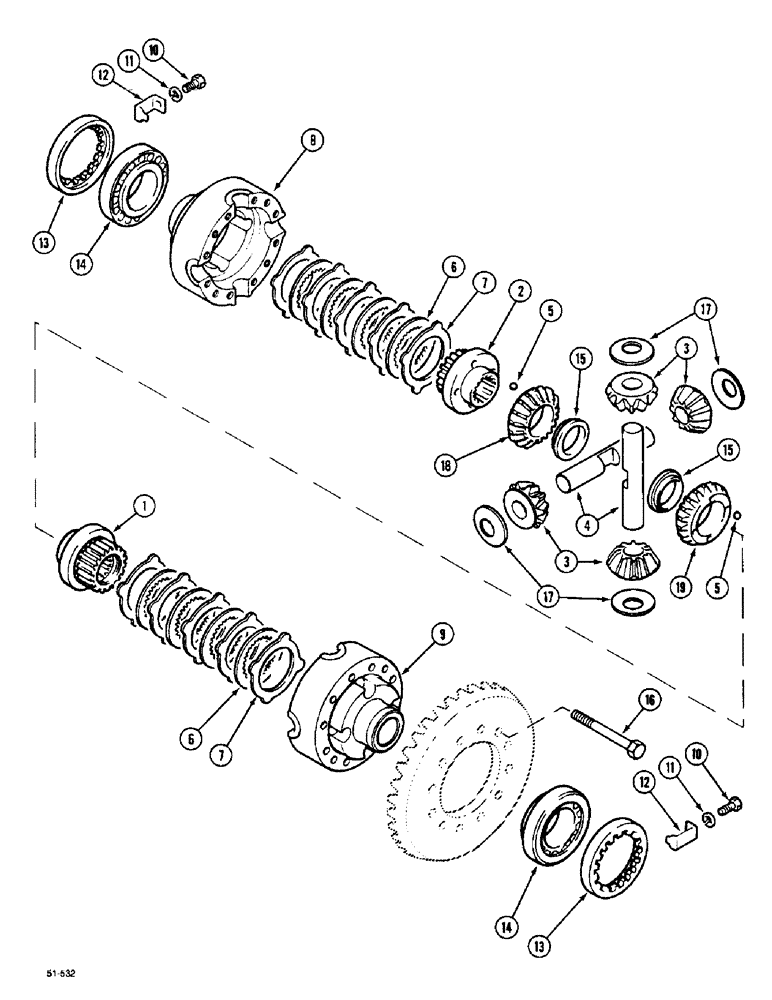

Схема запчастей Case IH 5150 - (5-54) - DIFFERENTIAL, (5130/5140/5150), MFD, 709 S4 BALL TYPE (05) - STEERING
3
17
5
11
13
12
3
6
14
5
13
10
11
14
16
18
7
13
8
2
15
15
7
4
10
12
17
9
6
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

183346A1

4WD AXLE ASSY

front, 60003 Includes: 195047A1

1шт.

195047A1

SET OF PARTS

DIFFERENTIAL ASSY., 60003 Consists Of: 1-9, 13-15, 17-19

1шт.

1

195052A1

SLEEVE

60003 Right

1шт.

2

195051A1

SLEEVE

60003 Left

1шт.

3

N14408

SUN GEAR

4шт.

4

195056A1

SHAFT

2шт.

5

181139A1

BALL,10mm OD

8шт.

6

1966156C1

WASHER

PLATE friction

8шт.

7

1966155C1

PLATE

separator

10шт.

195048A1

HOUSING ASSY.

60003 Includes: 8, 9

1шт.

8

195049A1

HOUSING

60003 Male

1шт.

9

195050A1

HOUSING

60003 Female

1шт.

10

112486A1

BOLT,Hex, M6 x 12

M6 x 10

2шт.

11

K261870

WASHER

lock 6 mm

2шт.

12

1966153C1

LOCKING PLATE

2шт.

13

195055A1

NUT

2шт.

14

K395027

TAPERED BEARING

ball

2шт.

15

195057A1

THRUST WASHER

thrust

2шт.

16

827-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 10.9

12шт.

17

K395075

THRUST WASHER

4шт.

18

195053A1

PINION

GEAR, 60003 Left

1шт.

19

195054A1

PINION

GEAR, 60003 Right

1шт.

237765A1

SET OF PARTS

60003 Differential Includes : 1 - 5, 15, 17

1шт.
