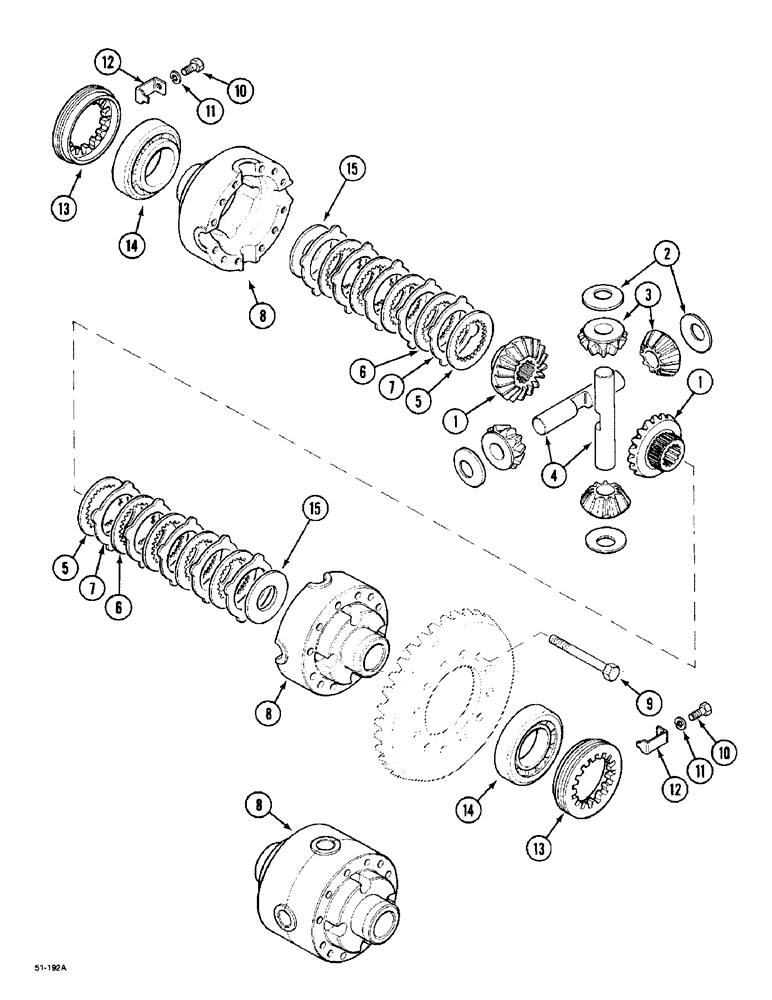

Запчасти Case IH 5150 (5-52) - DIFFERENTIAL, (5130/5140/5150), MFD, 709 S4 / 709 S4P (05) - STEERING

1995413C2

4WD AXLE ASSY

front, 60003 Includes: 1-15

1шт.

1

1349057C1

PINION

GEAR

2шт.

2

K395075

THRUST WASHER

2шт.

3

N14408

SUN GEAR

4шт.

4

N13507

PIN

shaft

2шт.

5

K261860

PLATE

2шт.

6

K261863

PLATE

8шт.

7

K261862

PLATE

10шт.

8

109686A1

HOUSING ASSY.

1шт.

9

827-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 10.9

12шт.

10

K261871

SCREW

6 x 12 mm

2шт.

11

K261870

WASHER

lock 6 mm

2шт.

12

1966153C1

LOCKING PLATE

2шт.

13

1966559C1

NUT

2шт.

14

K395027

TAPERED BEARING

ball

2шт.

15

111647A1

BELLEVILLE WASHER

WASHER lock, 60003 If So Equipped

2шт.
