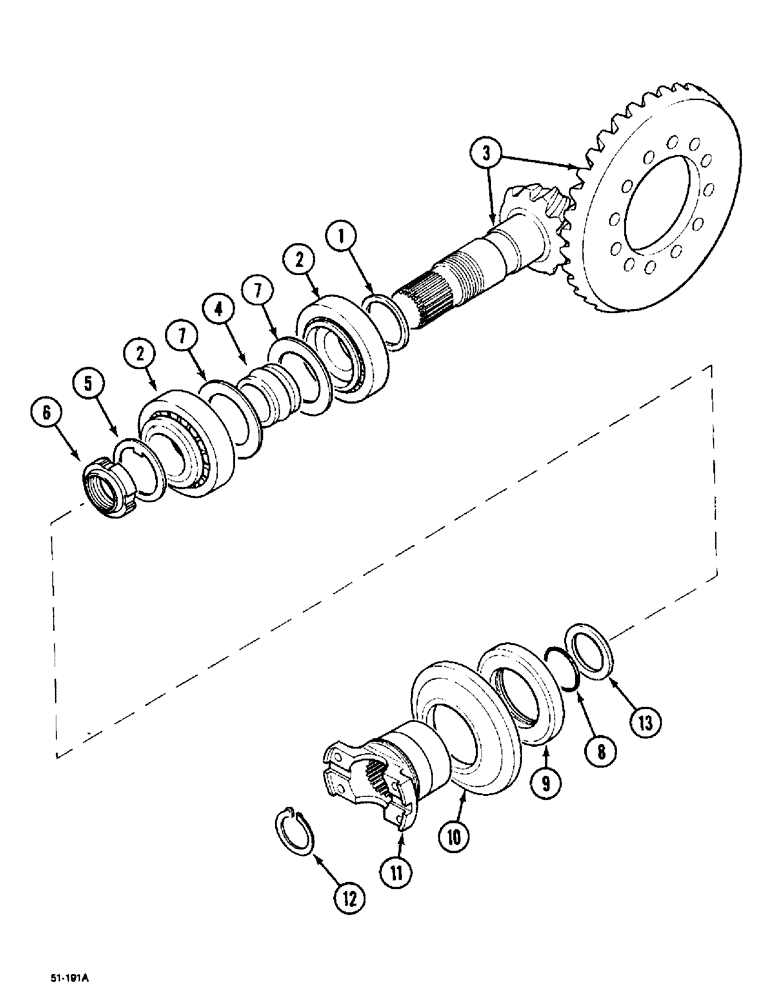

Запчасти Case IH 5150 (5-50) - DRIVE BEVEL GEAR, MFD (05) - STEERING

1

140954A1

SHIM,2.50mm Thk

Adjusting

1шт.

1

140953A1

SHIM,2.60mm Thk

Adjusting

1шт.

1

140951A1

SHIM,2.70mm Thk

Adjusting

1шт.

1

140949A1

SHIM,2.80mm Thk

Adjusting

1шт.

1

140948A1

SHIM,2.90mm Thk

Adjusting

1шт.

1

140943A1

SHIM,3.00mm Thk

Adjusting

1шт.

1

140944A1

SHIM,3.10mm Thk

Adjusting

1шт.

1

140945A1

SHIM,3.20mm Thk

Adjusting

1шт.

1

140946A1

SHIM,3.30mm Thk

Adjusting

1шт.

1

140947A1

SHIM,3.40mm Thk

Adjusting

1шт.

2

K395090

TAPERED BEARING,40mm ID x 90mm OD

2шт.

3

81876C1

GEAR, BEVEL

BEVEL GEAR SET, 60003, 5120, 5130, 5140, 5150, (709 STD / 709 S2 / 709 S4) Includes: 4-7

1шт.

3

81877C1

GEAR-SET

60003 With Groove, 5140, (709 S4P), Includes: 4-7, Serial Range: -JJF1012200

1шт.

4

1349058C1

SPACER

1шт.

5

K261065

LOCK WASHER

1шт.

6

K261014

RING NUT,M40 x 1.5

1шт.

7

1349059C1

WASHER,40.5mm ID x 50mm OD x 2mm Thk

2шт.

8

1966918C1

O-RING,126mm ID x 2.62mm Width

1шт.

9

81873C1

OIL SEAL

oil

1шт.

10

81874C1

COVER

1шт.

11

81875C1

FLANGE

1шт.

12

K395028

RING, SNAP

RING SNAP retaining

1шт.

13

81871C1

WASHER

1шт.
