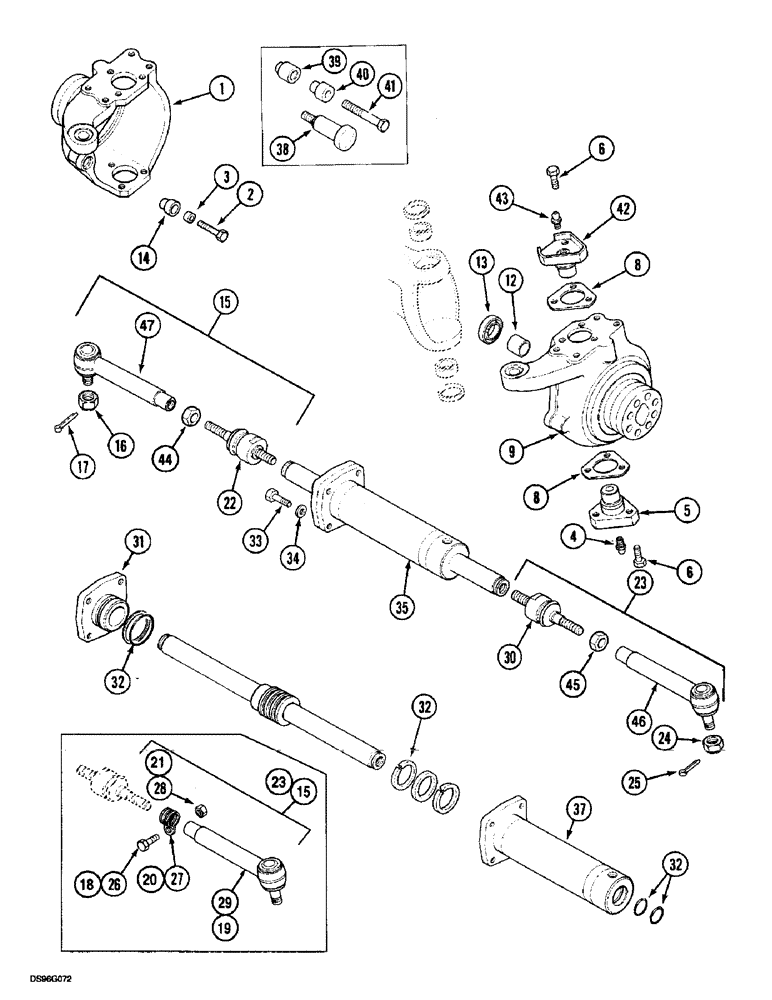

Запчасти Case IH 5150 (5-42) - STEERING CYLINDER AND SWIVEL HOUSINGS, MFD (05) - STEERING

1

81858C1

HOUSING,LH

1шт.

2

81859C1

BOLT,M14 x 2 x 75mm

63119 Steering Angle: 40, 45, 50 deg

1шт.

3

D142909

BUSHING,15mm ID x 24.5mm OD x 10.5mm L

63119 Steering Angle: 40, 45, 50 deg

2шт.

4

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

4шт.

5

N13504

PIVOT

2шт.

6

D150214

BOLT,Lock, Hex, M14 x 2 x 35mm, Cl 10.9

lock, M14 x 35

12шт.

8

K395036

SHIM,52mm ID x 116mm OD x 0.1mm Thk

Spacer

1шт.

8

K395037

SHIM,52mm ID x 98mm OD x 0.19mm Thk

Spacer

1шт.

8

K395038

SHIM,52mm ID x 98mm OD x 0.35mm Thk

Spacer

1шт.

9

81860C1

HOUSING

1шт.

12

1967535C1

BUSHING

2шт.

13

K262143

OIL SEAL,16mm W, 35mm ID x 52mm OD

oil

2шт.

14

81862C1

BUSHING

63119 Steering Angle: 40, 45, 50 deg

2шт.

15

1997713C1

ROD ASSY.

50140 Consists Of: 16, 18 - 22

1шт.

16

N14380

JAM NUT

50140, 5120, 5130, 5140, Axle Serial Number: - C7P/2205, - C9P/3654

1шт.

16

107070A1

LOCK NUT

lock, M20, 50140, Axle Serial Number: C7P/2205 -, C9P/3654 -

1шт.

17

1966613C1

PIN, SPLIT (COTTER)

PIN, COTTER 50140, 5120, 5130, 5140, Axle Serial Number: - C7P/2205, - C9P/3654

1шт.

18

D142926

BOLT

50140, 5120, 5130, 5140, Axle Serial Number: - CSP/625, - C7P/2864, - C9P/5485

1шт.

19

NSS

NOT SOLD SEPARAT

JOINT ball, 50140 LH Thread, 5120, 5130, 5140, Axle Serial Number: - CSP/625, - C7P/2864, - C9P/5485

1шт.

20

D142924

CLAMP

50140, 5120, 5130, 5140, Axle Serial Number: - CSP/625, - C7P/2864, - C9P/5485

1шт.

21

1966126C1

LOCK NUT

50140, 5120, 5130, 5140, Axle Serial Number: - CSP/625, - C7P/2864, - C9P/5485

1шт.

22

N14388

BALL JOINT

50140 LH Thread

1шт.

23

1997712C1

ROD ASSY.

50140 Consists Of: 16,18,20,21,29,30

1шт.

24

N14380

JAM NUT

50140 Axle Serial Number: - C7P/2204, - C9P/3653

1шт.

24

107070A1

LOCK NUT

lock, M20, 50140 Axle Serial Number: C7P/2205 -, C9P/3654 -

1шт.

25

1966613C1

PIN, SPLIT (COTTER)

PIN, COTTER 50140 Axle Serial Number: - C7P/2204, - C9P/3653

1шт.

26

D142926

BOLT

50140, 5120, 5130, 5140, Axle Serial Number: - CSP/625, - C7P/2864, - C9P/5485

1шт.

27

D142924

CLAMP

50140, 5120, 5130, 5140, Axle Serial Number: - CSP/625, - C7P/2864, - C9P/5485

1шт.

28

1966126C1

LOCK NUT

50140, 5120, 5130, 5140, Axle Serial Number: - CSP/625, - C7P/2864, - C9P/5485

1шт.

29

NSS

NOT SOLD SEPARAT

JOINT ball, 50140, 5120, 5130, 5140, Axle Serial Number: - CSP/625, - C7P/2864, - C9P/5485

1шт.

30

N14377

ARTICULATION

BALL JOINT

1шт.

31

1341820C1

HEAD (CYLINDER)

1шт.

32

1341819C1

SEAL KIT

1шт.

33

814-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

1шт.

33

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

3шт.

34

892-11012

LOCK WASHER,M12

4шт.

35

1530744C1

STEERING CYLINDER

60760 Includes: 36, 37

1шт.

36

1542968C1

PISTON ROD

1шт.

37

1543004C1

JACK BODY

CYLINDER

1шт.

38

1533317C1

STOP

60003 Steering Angle: 23 deg Front Hitch

1шт.

39

1533318C1

SPACER

44 mm

1шт.

40

1533319C1

SPACER

42 mm

1шт.

41

1533316C1

BOLT,Hex, M14 x 2 x 110mm

14 x 110 mm

1шт.

42

1995414C1

PIVOT

2шт.

43

N13505

LUBE NIPPLE,45 Degree, M6 x 1

2шт.

44

126141A1

NUT

50140 LH Thread Axle Serial Number: CSP/626 -, C7P/2865 -, C9P/5486 -

1шт.

45

126143A1

NUT

M24, 50140 Axle Serial Number: CSP/626 -, C7P/2865 -, C9P/5486 -

1шт.

46

126145A1

BALL JOINT

50140 Right Axle Serial Number: CSP/626 -, C7P/2865 -, C9P/5486 -

1шт.

47

126144A1

BALL JOINT

50140 LH Thread Axle Serial Number: CSP/626 -, C7P/2865 -, C9P/5486 -

1шт.
