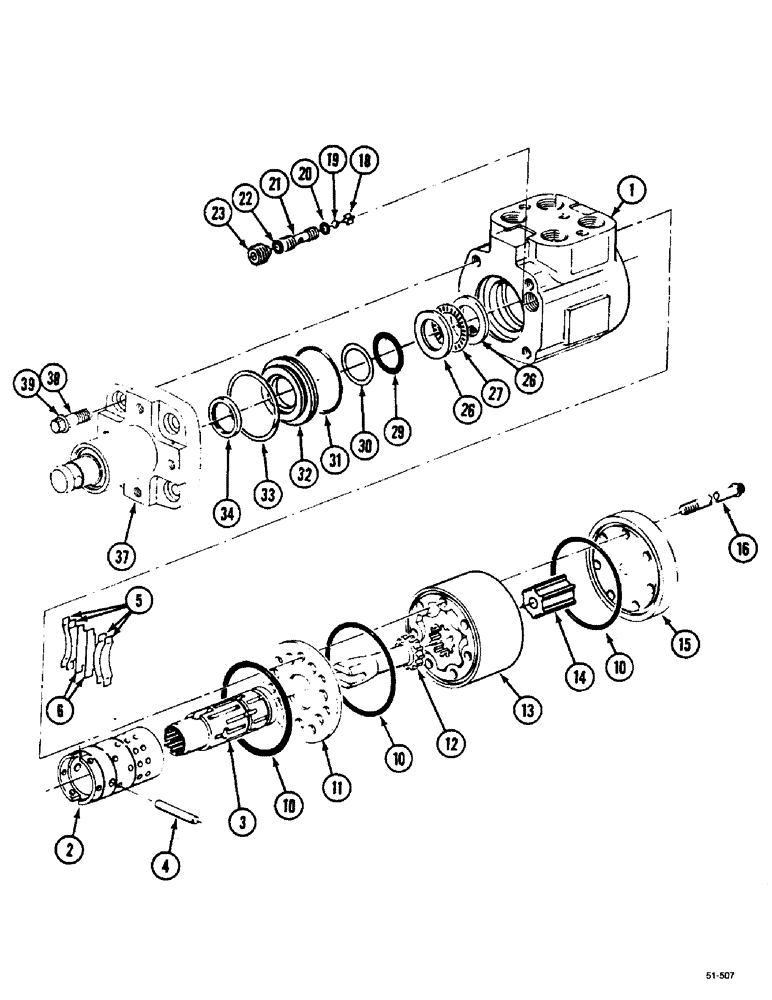

Запчасти Case IH 5150 (5-28) - STEERING HAND PUMP, EATON ( - JJF1053464), 40 KM/H (05) - STEERING

1340865C3

VALVE, CONTROL

PUMP ASSY., 50743 Consists Of: 1-34

1шт.

1

1986511C1

BEARING

HOUSING

1шт.

2

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

3

NSS

NOT SOLD SEPARAT

COIL ASSY.

1шт.

4

L30888

PIN

1шт.

5

S301820

SPRING

1шт.

6

NSS

NOT SOLD SEPARAT

SPACER ASSY.

2шт.

10

238-6040

O-RING,0.07" Thk x 2.864" ID, -40, Cl 6, 90 Duro

3шт.

11

135869A1

PLATE

1шт.

12

L30878

DRIVE SHAFT

ASSY.

1шт.

13

1346210C1

ROTOR

ASSY.

1шт.

14

N7162

SPACER

1шт.

15

135867A1

CAP

1шт.

16

1343641C1

SCREW,Flg, 5/16" - 24 x 1 5/8", Gr 8

7шт.

18

L35368

RETAINER

1шт.

19

211-208

BALL,5/16" Dia

5/16; 24,CRS

1шт.

20

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

21

D82806

VALVE SEAT

1шт.

22

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

1шт.

23

D82805

SET SCREW

SCREW

1шт.

26

D82804

RACE

2шт.

27

N60337

BEARING, NEEDLE

KIT

1шт.

29

238-5121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

1шт.

30

N13214

WASHER

1шт.

31

238-5225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

1шт.

32

N13312

CYLINDER END CAP

BUSHING

1шт.

33

S110169

WASHER

1шт.

34

697494R91

OIL SEAL

1 ID

1шт.

37

1980276C1

STEERING COLUMN

COLUMN-STEERING

1шт.

38

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

39

934281R1

WASHER,M10.5 ID x 20 OD x 2 Thk

4шт.

1343658C3

SEAL KIT

50743 Includes: 10, 20, 22, 31, 32

1шт.
