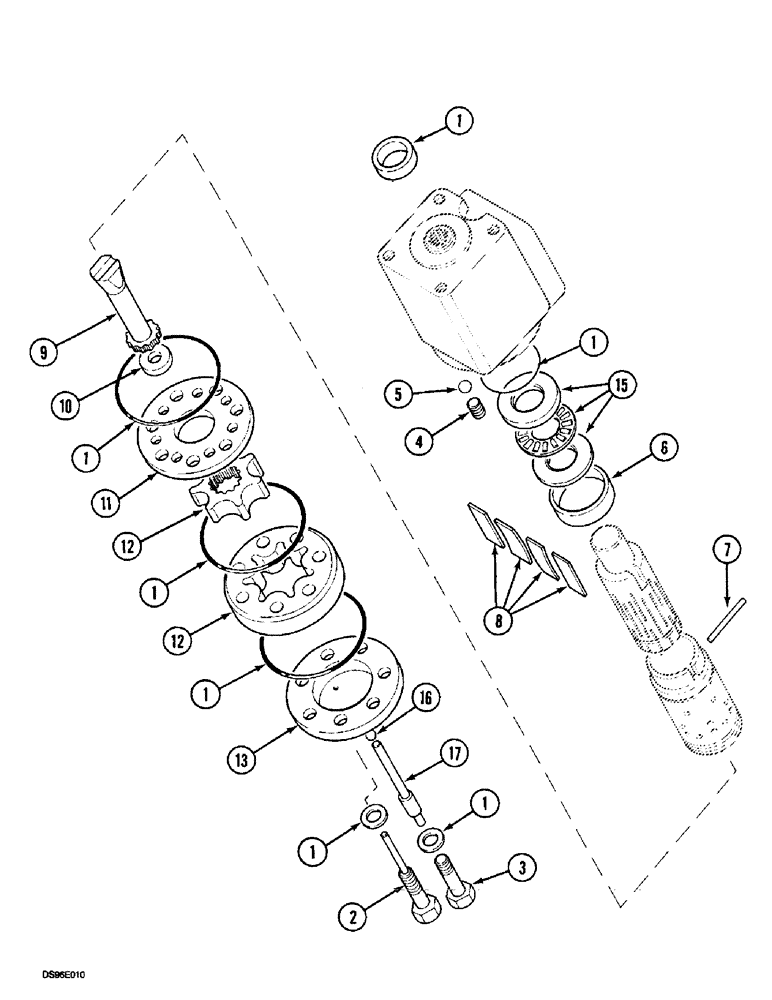

Запчасти Case IH 5150 (5-26) - STEERING HAND PUMP, DANFOSS (JJF1052102 - 1052512) ( JJF1053465 - ) 40 KM/H (05) - STEERING

a

1346098C1

VALVE, CONTROL

PUMP ASSY., 160 cc, 50743 4WD, Consists Of: 1, 2A, 3-9, 10A, 11, 12A, 13-17, Start Serial: JJF1002200

1шт.

a

1346098C1R

REMAN-STEERING VALVE

ASSY., 160 cc, 50743 4WD, Start Serial: JJF1002200

1шт.

a

1346098C1C

CORE-STEERING VALVE

Return Number

1шт.

a

1954114C1

PUMP, HYDRAULIC

ASSY., 160 cc, 50743 4WD, Consists Of: 1, 2A, 3-9, 10A, 11, 12A, 13-17, Serial Range: -JJF1002199

1шт.

a

1346098C1R

REMAN-STEERING VALVE

ASSY., 160 cc, 50743 4WD, Serial Range: -JJF1002199

1шт.

a

1346098C1C

CORE-STEERING VALVE

Return Number

1шт.

b

1346097C1

VALVE, CONTROL

PUMP ASSY., 100 cc, 50743 2WD, 5120, 5130, 5140, Consists Of: 1, 2B, 3-9, 10B, 11, 12B, 13, 17, Start Serial: JJF1002200

1шт.

b

1954140C2

VALVE, CONTROL

PUMP ASSY., 100 cc, 50743 2WD, 5120, 5130, 5140. Consists Of: 1, 2B, 3-9, 10B, 11, 12B, 13, 17, Serial Range: -JJF1002199

1шт.

1ab

1500443C91

SEAL KIT

service, 50743

1шт.

2a

1346247C1

SCREW,Hex, M8 x 1 x 46.50mm, W/ Pin

1шт.

2b

3216709R1

SCREW

50743, 5120, 5130, 5140

1шт.

3

3216710R1

SCREW

M8 x 40

6шт.

4

1272793C1

BUSHING

1шт.

5

1272794C1

BALL

8.5 mm dia

1шт.

6

1272795C1

O-RING,39.6mm ID x 41mm OD x 4.5mm

1шт.

7

1272796C1

CROSS PIN

6 x 41 mm

1шт.

8

N14219

SET OF PARTS

SPRING, 50743 Standard

1шт.

9

1272797C1

SHAFT

1шт.

10a

3115862R1

SPACER

1шт.

10b

3216707R1

SPACER

1шт.

11

1272803C1

PLATE

1шт.

12a

3112280R91

GEAR

ROTOR

1шт.

12b

3216708R1

ROTOR

50743, 5120, 5130, 5140

1шт.

13

1272805C1

COVER

1шт.

15

1272808C1

NEEDLE BEARING

BEARING needle

1шт.

16

211-204

BALL

3/16; 24,CRS

2шт.

17

1971684C1

BUSHING

2шт.
