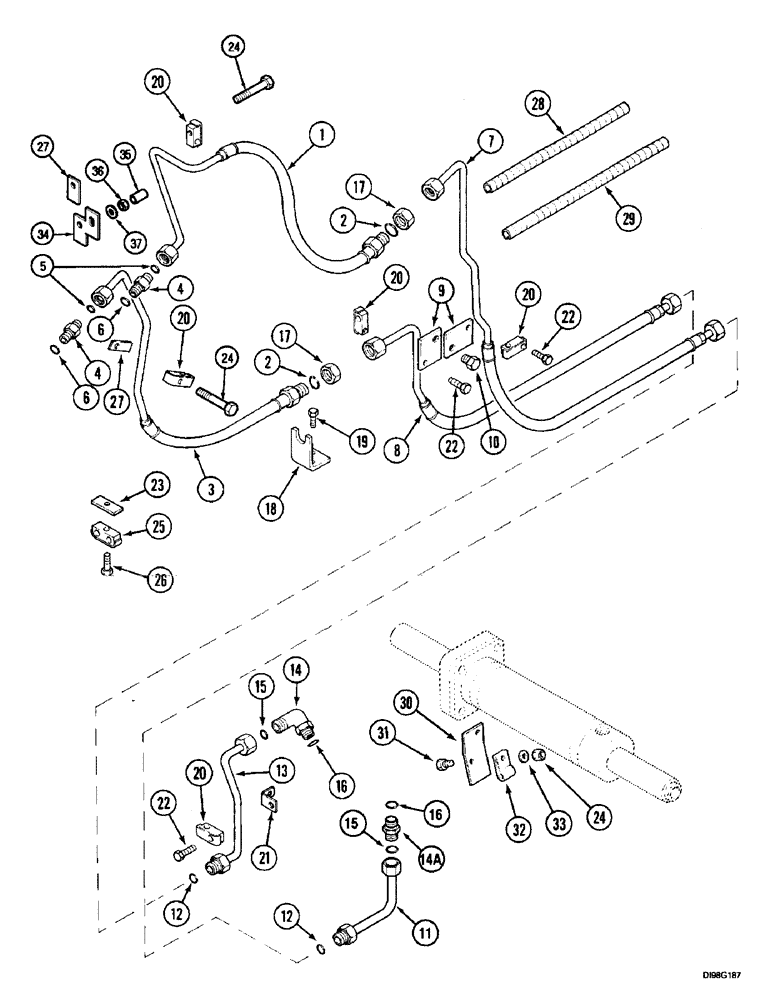

Запчасти Case IH 5150 (5-22) - STEERING PIPES FRONT, MFD (05) - STEERING

1

T104238

PIPE

50751 Rear, Right

1шт.

2

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

3

T104239

HYD TUBE

50751 Rear, Left 30 km/h

1шт.

3

1531980C1

PIPE

50751 Rear, Left 40 km/h

1шт.

4

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

50751 Short, Includes 5, 6

2шт.

5

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

1531847C1

PIPE

50751 Front, Right, 5120

1шт.

7

1534741C1

PIPE

50751 Front, Right, 5130, 5140, 5150

1шт.

8

1534738C1

PIPE

50751 Front, Left, 5120

1шт.

8

1534737C1

PIPE

50751 Front, Left, 5130, 5140, 5150

1шт.

9

T104010

BRACKET

1шт.

9

T104010

BRACKET

2шт.

10

614-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

1шт.

11

1530743C1

PIPE

ASSY., 50751 Right Axle Serial Number : CSP/1220 - ,C70/3515 - ,C9P/7302 -

1шт.

11

T102822

PIPE

50751 Right Axle Serial Number : - CSP/1219, - C7P/3514, - C9P/7301

1шт.

12

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

13

1531763C2

PIPE

1шт.

14

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

50751 Short, Includes 15, 16 Axle S/N: CSP/1220 - ,C7P/3515 - ,C9P/7302 -

2шт.

15

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

14

T100113

ELBOW

90 deg, 50751 Includes: 15, 16 Axle Serial Number: - CSP/1219, - C7P/3514, - C9P/7301

2шт.

15

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

17

201-903

TUBE NUT,Blkhd, 13/16"-16

50751 30 km/h

2шт.

17

201-903

TUBE NUT,Blkhd, 13/16"-16

50751 40 km/h

4шт.

18

T102814

SUPPORT

1шт.

19

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

20

T101170

CLAMP

5шт.

21

T102769

BRACKET

1шт.

22

614-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8, Full Thd

3шт.

23

1531006C1

LARGE PLATE

PLATE, LARGE BAR

2шт.

24

814-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

4шт.

25

T103148

CLAMP

1шт.

26

614-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8, Full Thd

1шт.

27

1531006C1

LARGE PLATE

PLATE, LARGE BAR

2шт.

28

1531986C1

HOSE PROTECTION

CONDUIT

1шт.

29

1531987C1

HOSE PROTECTION

CONDUIT

1шт.

1530757C1

SET OF PARTS

service, 50751 Consists Of: 11, 24, 30-33 Axle Serial Number: - CSP/1219, - C7P/3514, - C9P/7301

1шт.

30

1530746C1

SUPPORT

1шт.

31

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

32

714815R2

CLAMP

1шт.

33

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

34

259952A1

SUPPORT

RETAINER

1шт.

35

259953A1

SPACER

1шт.

36

825-1406

NUT,M6, Cl 8

1шт.

37

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.
