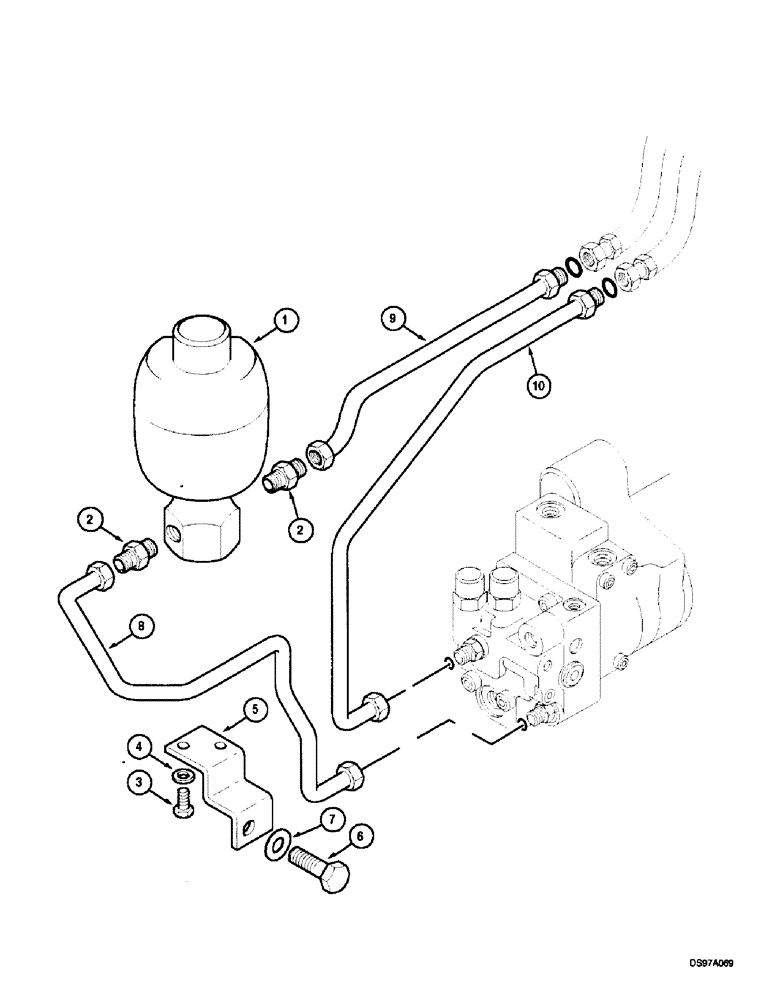

Запчасти Case IH 5150 (5-16) - ACCUMULATOR, (40 KM/H), WITHOUT TRAILER BRAKE (05) - STEERING

254668A1

PACKAGE, REPAIR

50733 Installation Consists Of: 1-9

1шт.

1

254548A1

ACCUMULATOR

1шт.

2

254549A1

FITTING

2шт.

3

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

4

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

5

254550A1

SUPPORT

1шт.

6

614-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd

1шт.

7

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

1шт.

8

254551A1

PIPE

1шт.

9

254552A1

PIPE

1шт.

10

1533788C1

PIPE

50733 Signal

1шт.
