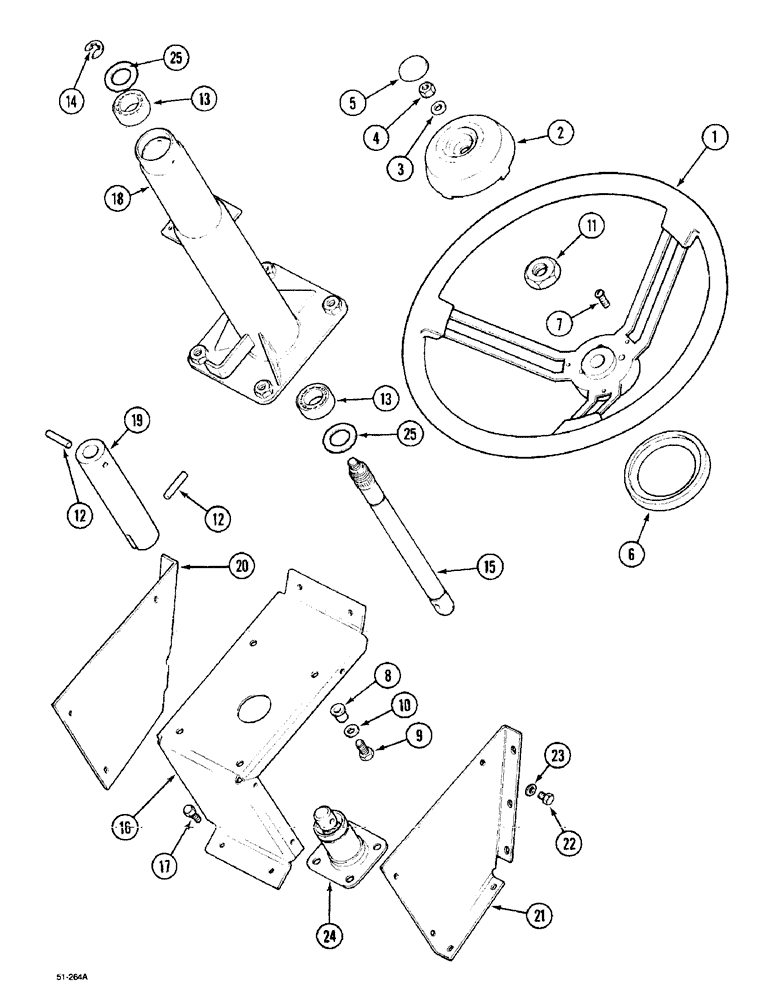

Запчасти Case IH 5150 (5-10) - STEERING WHEEL AND COLUMN (05) - STEERING

1

1340252C1

STEERING WHEEL

1шт.

2

1977749C1

CAP

hub

1шт.

3

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

1шт.

4

131-1216

LOCK NUT,3/8"-16, GC

1шт.

5

A180055

CAP ASSY.

INSERT case

1шт.

5

229540A1

SYMBOLS

SYMBOL INSERT, 50110 Special Edition - (50,000)

1шт.

6

1340334C1

HUB

1шт.

7

187-310

SELF-TAP SCREW,Slotted Pan Hd, #6 x 5/8"

3шт.

8

104809C1

ISOLATOR,27.94mm OD x 18.29mm L

4шт.

9

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

4шт.

10

536642R1

WASHER

4шт.

11

F19646

LOCK NUT,13/16"-20, Thin

2шт.

12

438-32428

PIN,3/8" x 1 3/4", Coiled

3/8" x 1 3/4", Coiled

2шт.

13

227747A1

BUSHING,22.2mm ID x 40mm OD x 8.4mm L

2шт.

14

933700R1

CIRCLIP,M16 x 1mm Thk, Ext

retaining

2шт.

15

1331154C2

SHAFT

1шт.

16

1958784C1

SUPPORT

50110 Steering Column

1шт.

17

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

18

1343832C3

SUPPORT ASSY.

50110, Serial Range: -JJF1017717

1шт.

18

1534425C2

SUPPORT ASSY.

50110, Start Serial: JJF1017718

1шт.

19

1343831C2

COUPLING

1шт.

20

1331061C1

SUPPORT

COVER, 50110 Left

1шт.

21

1331062C1

SUPPORT

COVER, 50110 Right

1шт.

22

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

16шт.

23

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

16шт.

24

1980276C1

STEERING COLUMN

COLUMN-STEERING 50110

1шт.

25

227746A1

WASHER

2шт.
