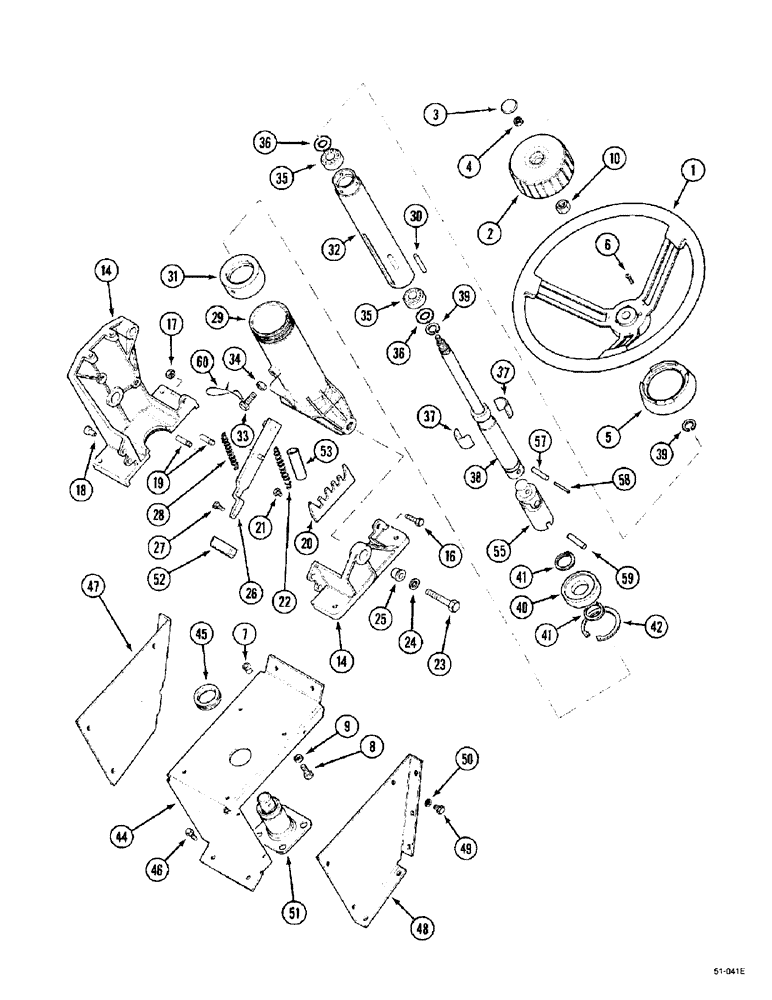

Запчасти Case IH 5150 (5-06) - STEERING WHEEL AND COLUMN, TILTABLE AND TELESCOPIC (05) - STEERING

1

1340252C1

STEERING WHEEL

1шт.

2

138970A1

HUB

1шт.

3

A180055

CAP ASSY.

INSERT case

1шт.

3

229540A1

SYMBOLS

SYMBOL INSERT, 50110 Special Edition - (50,000)

1шт.

4

425-106

NUT,3/8"-16, Cl 5

1шт.

5

1340334C1

HUB

1шт.

6

905974R1

SELF-TAP SCREW,Pan Hd, M2.9 x 13

3шт.

7

104809C1

ISOLATOR,27.94mm OD x 18.29mm L

4шт.

8

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

4шт.

9

536642R1

WASHER

4шт.

10

F19646

LOCK NUT,13/16"-20, Thin

1шт.

13

104008C1

RUBBER INSULATOR

1шт.

14

1981872C1

HOLDER

1шт.

16

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

17

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

18

837-10016

DOWEL,M10 x 16

10 x 16 mm

1шт.

19

382563R1

PIN

2шт.

20

1331100C2

PLATE

1шт.

21

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

22

148480C1

SPRING

1шт.

23

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

2шт.

24

892-1112

LOCK WASHER,M12

2шт.

25

148920C1

BUSHING

2шт.

26

1981870C4

LEVER

50120 Tilt

1шт.

27

877-2045

SET SCREW,M4 x 5mm

4 x 5 mm

1шт.

28

538321R1

SPRING

1шт.

29

1977381C3

HOUSING

50120 Tilt

1шт.

30

1331183C1

KEY

3шт.

31

1331044C3

CAP

1шт.

32

1534423C1

SLIDE

1шт.

33

1977979C2

BOLT

stop

1шт.

34

934300R1

THIN NUT,Thin, M10 x 1.5, Cl 04

10 mm

1шт.

35

227747A1

BUSHING,22.2mm ID x 40mm OD x 8.4mm L

2шт.

36

227746A1

WASHER

2шт.

37

1331097C1

BUSHING

2шт.

38

139022A1

STEERING SHAFT

1шт.

39

933105R1

SNAP RING,M22, Ext

retaining

2шт.

40

1977347C1

THRUST BEARING,55mm ID x 91.5mm OD x 30.4mm W

WASHER

1шт.

41

933683R1

SNAP RING,M36, Ext

Retaining (36 x 1.75 mm)

2шт.

42

715648R1

SNAP RING,M65, Int

retaining

1шт.

44

1958784C1

SUPPORT

1шт.

45

1977709C1

GROMMET

1шт.

46

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

47

1331061C1

SUPPORT

COVER

1шт.

48

1331062C1

SUPPORT

COVER

1шт.

49

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

16шт.

50

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

16шт.

51

1980276C1

STEERING COLUMN

COLUMN-STEERING

1шт.

52

1981926C2

BUTTON

1шт.

53

1534339C1

HOSE,22.00 mm ID x 80.00 mm

50110 Use With : 22, 28, Serial Range: -JJF1034499

1шт.

55

1530766C1

COUPLING

JOINT universal

1шт.

57

932303R1

LOCK PIN,M10 x 40, Slotted

10 x 40 mm

1шт.

58

932234R1

LOCK PIN,M6 x 40, Slotted

1шт.

59

438-32428

PIN,3/8" x 1 3/4", Coiled

3/8" x 1 3/4", Coiled

1шт.

60

139441A1

ELECTRICAL WIRE

WIRE

1шт.
