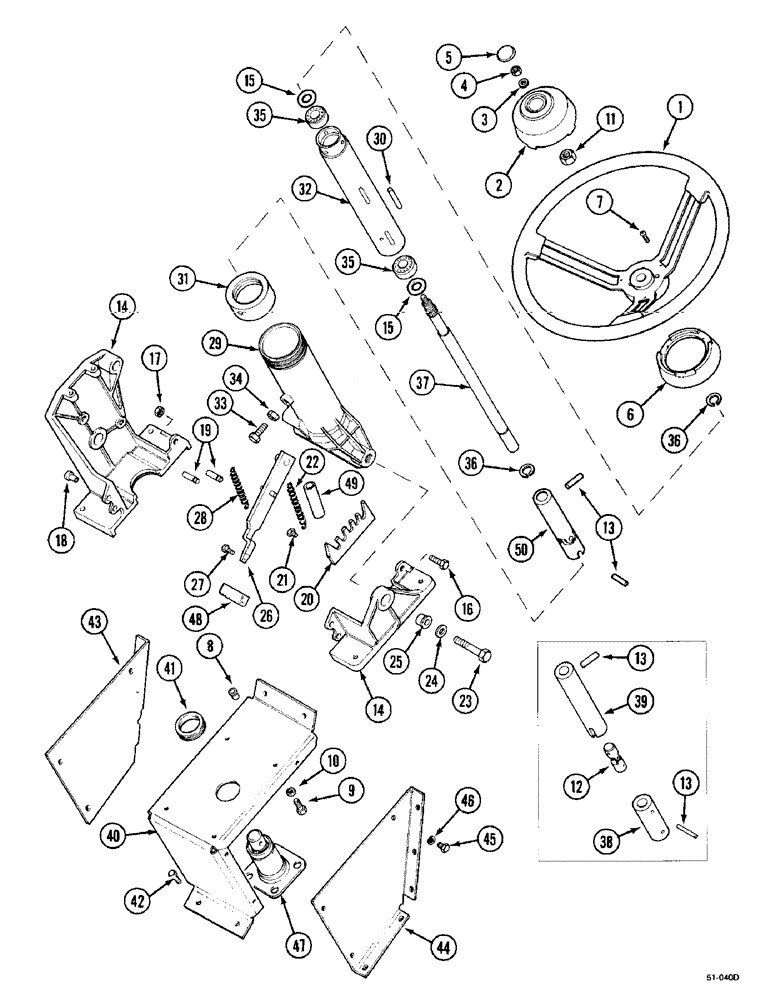

Запчасти Case IH 5150 (5-02) - STEERING WHEEL AND COLUMN, TILTABLE (05) - STEERING

1

1340252C1

STEERING WHEEL

1шт.

2

1977749C1

CAP

hub

1шт.

3

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

1шт.

4

131-1216

LOCK NUT,3/8"-16, GC

1шт.

5

A180055

CAP ASSY.

INSERT case

1шт.

5

229540A1

SYMBOLS

SYMBOL INSERT, 50110 Special Edition - (50,000)

1шт.

6

1340334C1

HUB

1шт.

7

905974R1

SELF-TAP SCREW,Pan Hd, M2.9 x 13

3шт.

8

104809C1

ISOLATOR,27.94mm OD x 18.29mm L

4шт.

9

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

4шт.

10

536642R1

WASHER

4шт.

11

F19646

LOCK NUT,13/16"-20, Thin

1шт.

1530854C1

PACKAGE, REPAIR

50110 Includes: 12, 13

1шт.

12

A147292

HARNESS

JOINT universal, 50110, 5120, 5130, 5140, Serial Range: -JJF1017717

1шт.

13

438-32428

PIN,3/8" x 1 3/4", Coiled

3/8" x 1 3/4", Coiled

4шт.

14

1981872C1

HOLDER

1шт.

15

227746A1

WASHER

2шт.

16

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

17

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

18

837-10016

DOWEL,M10 x 16

10 x 16 mm

1шт.

19

382563R1

PIN

2шт.

20

1331100C2

PLATE

1шт.

21

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

22

148480C1

SPRING

1шт.

23

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

2шт.

24

892-11012

LOCK WASHER,M12

2шт.

25

148920C1

BUSHING

2шт.

26

1981870C4

LEVER

50120 Tilt

1шт.

27

877-2045

SET SCREW,M4 x 5mm

4 x 5 mm

1шт.

28

538321R1

SPRING

1шт.

29

1977381C3

HOUSING

50120 Tilt

1шт.

30

1331183C1

KEY

6шт.

31

1331044C3

CAP

1шт.

32

1331182C2

TUBE,56 mm OD, 250 mm Length

50110, 5120, 5130, 5140, Serial Range: -JJF1017717

1шт.

32

1534424C1

SLIDE,30 mm ID, 56 mm OD, 250 mm Length

TUBE, 50110, Start Serial: JJF1017718

1шт.

33

1977979C2

BOLT

stop

1шт.

34

934300R1

THIN NUT,Thin, M10 x 1.5, Cl 04

10 mm

1шт.

35

227747A1

BUSHING,22.2mm ID x 40mm OD x 8.4mm L

2шт.

36

933700R1

CIRCLIP,M16 x 1mm Thk, Ext

retaining

2шт.

37

1331154C2

SHAFT

1шт.

38

1331184C1

RING, COUPLING

50110, 5120, 5130, 5140, Serial Range: -JJF1017717

1шт.

39

1977568C2

RING, COUPLING

50110, 5120, 5130, 5140, Serial Range: -JJF1017717

1шт.

40

1958784C1

SUPPORT

1шт.

41

1977709C1

GROMMET

1шт.

42

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

43

1331061C1

SUPPORT

COVER

1шт.

44

1331062C1

SUPPORT

COVER

1шт.

45

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

16шт.

46

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

16шт.

47

1980276C1

STEERING COLUMN

COLUMN-STEERING

1шт.

48

1981926C2

BUTTON

1шт.

49

1534339C1

HOSE,22.00 mm ID x 80.00 mm

50110 Use With : 22,28, Serial Range: -JJF1034499

1шт.

50

1530741C1

COUPLING

JOINT universal, 50110, Start Serial: JJF1017718

1шт.
