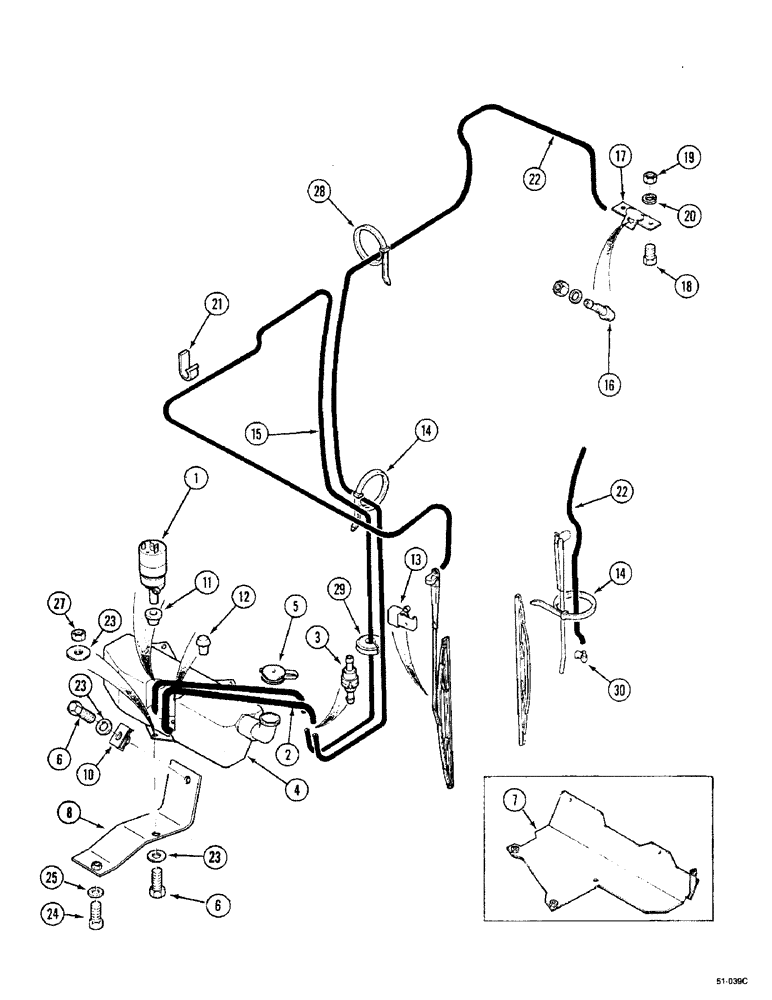

Запчасти Case IH 5150 (4-94) - WINDSCREEN WASHER AND WIPER - FRONT AND REAR (04) - ELECTRICAL SYSTEMS

1

1964696C2

PUMP

ASSY

1шт.

2

REF

INSTRUCTION

TUBE, 90313 Cut From : 1968141C1

2шт.

3

K307050

VALVE

check, 90313 Non Return Valve

2шт.

4

1340164C1

RESERVOIR

1шт.

5

1971225C2

FILLER CAP

1шт.

6

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

3шт.

7

1340177C3

HOLDER

ASSY., 90313 Fenders : 225 mm, Serial Range: -JJF1027362

1шт.

7

1340178C3

HOLDER

ASSY., 90313 Fenders : 425 mm, Serial Range: -JJF1027362

1шт.

8

1530805C1

SUPPORT ASSY.

90313, Start Serial: JJF1027363

1шт.

10

30380R1

SPRING NUT,M8, U

M8, 90313, Serial Range: -JJF1027362

1шт.

11

1971265C1

GROMMET

2шт.

12

1971266C1

PLUG

1шт.

13

1968054C1

JET

NOZZLE

1шт.

14

473321C1

CABLE TIE,8" OAL x 0.098" W

CABLE STRAP

1шт.

15

REF

INSTRUCTION

TUBE, 90313 Rear ( - Maxxum Pro) Cut From : 1968141C1

1шт.

15

REF

INSTRUCTION

TUBE, 90313 Rear (Maxxum Pro - ) Cut From : 1968141C1

1шт.

16a

3129899R92

JET

NOZZLE

2шт.

Opening Windshield

1шт.

17a

1981765C1

BRACKET

1шт.

Opening Windshield

1шт.

18a

940-1412

SCREW,Pan Cross Recess, M4 x 12mm, Cl 4.8

M4 x 12; 4.8

2шт.

Opening Windshield

1шт.

19a

829-1304

NUT,M4, Cl 8

M4

2шт.

Opening Windshield

1шт.

20a

892-11004

LOCK WASHER,M4

2шт.

Opening Windshield

1шт.

21

1983374C1

CLIP,ELECTRICAL

90313 ( - JJF1031874)

1шт.

22

REF

INSTRUCTION

TUBE, 90313 Front ( - Maxxum Pro) Cut From : 1968141C1

1шт.

22

REF

INSTRUCTION

TUBE, 90313 Front (Maxxum Pro - ) Cut From : 1968141C1

1шт.

22a

REF

INSTRUCTION

TUBE, 90313 Cut From : 1968141C1

1шт.

Opening Windshield

1шт.

23

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

90313, Start Serial: JJF1027363

4шт.

23

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

90313, Serial Range: -JJF1027362

6шт.

24

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

90313, Start Serial: JJF1027363

1шт.

24

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

90313, Serial Range: -JJF1027362

3шт.

25

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

90313, Start Serial: JJF1027363

1шт.

25

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

90313, Serial Range: -JJF1027362

3шт.

27

30380R1

SPRING NUT,M8, U

M8, 90313 Fenders : 425 mm, Start Serial: JJF1027363

1шт.

27

3223425R1

LOCK NUT

M8, 90313 Fenders : 225 mm, Start Serial: JJF1027363

1шт.

27

3223425R1

LOCK NUT

M8, 90313

3шт.

28

702093C1

CABLE TIE

CABLE STRAP

4шт.

29

1964771C3

GROMMET

1шт.

30

1968054C1

JET

NOZZLE

1шт.

1968141C1

HOSE

15240 mm, 90313 Bulk Length

1шт.
